51
DIVISION II - OPERATION/
MAINTENANCE
7. Odometer/Trip Meter - Odometer
registers the total distance the vehicle
has traveled. The trip meter is rese-
table and can be used to measure trip
or trip legs. The odometer cannot be
reset.
NOTE: To shift between the
odometer (ODO) or trip meter
(TRIP), press the Mode Button (3) to
select the distance mode; then
press the Set/Reset Button (4) to
select the desired display. Hold the
Set/Reset Button down to reset the
trip meter.
8. Gear Position Indicator - Indicates
which gear position is selected.
• R (reverse)/N (neutral)/L (low range)/H
(high range)
NOTE: An E will be displayed if
there is an error caused by a no-
shift position signal.
9. High Beam Indicator - The High
Beam icon will appear only when the
headlights are on high beam.
10. 4WD Lock Indicator - Displays
LOCK when the front differential
lock has been engaged.
11. Drive Select Indicator - Displays 4WD
when selected by the drive select switch
or when the 4WD lock is engaged. The
display is blank when in 2WD.
12. Speedometer - Indicates the approxi-
mate vehicle speed in miles per hour
(MPH) or kilometers per hour (km/h).
NOTE: To change mph/km/h dis-
play, press and release Mode But-
ton (3) until the icon (MPH/km/h)
appears; then press the Set Button
(4) to change the display.
Condition Warning Display - Uses odom-
eter/trip meter display of the LCD to
warn of a system error condition requir-
ing attention. The LCD will go blank
except the word VOLT will flash on the
LCD whenever a low voltage (< 9 DC
volts) or a high voltage (> 16 DC volts) is
detected. When voltage returns to nor-
mal, the gauge must be reset by turning
the ignition key to the OFF position and
then to the ON position.
Vacuum Fuel Pump
A vacuum fuel pump is mounted under
the seat to deliver gasoline to the carbure-
tor. The fuel pump operates when the
engine is turning.

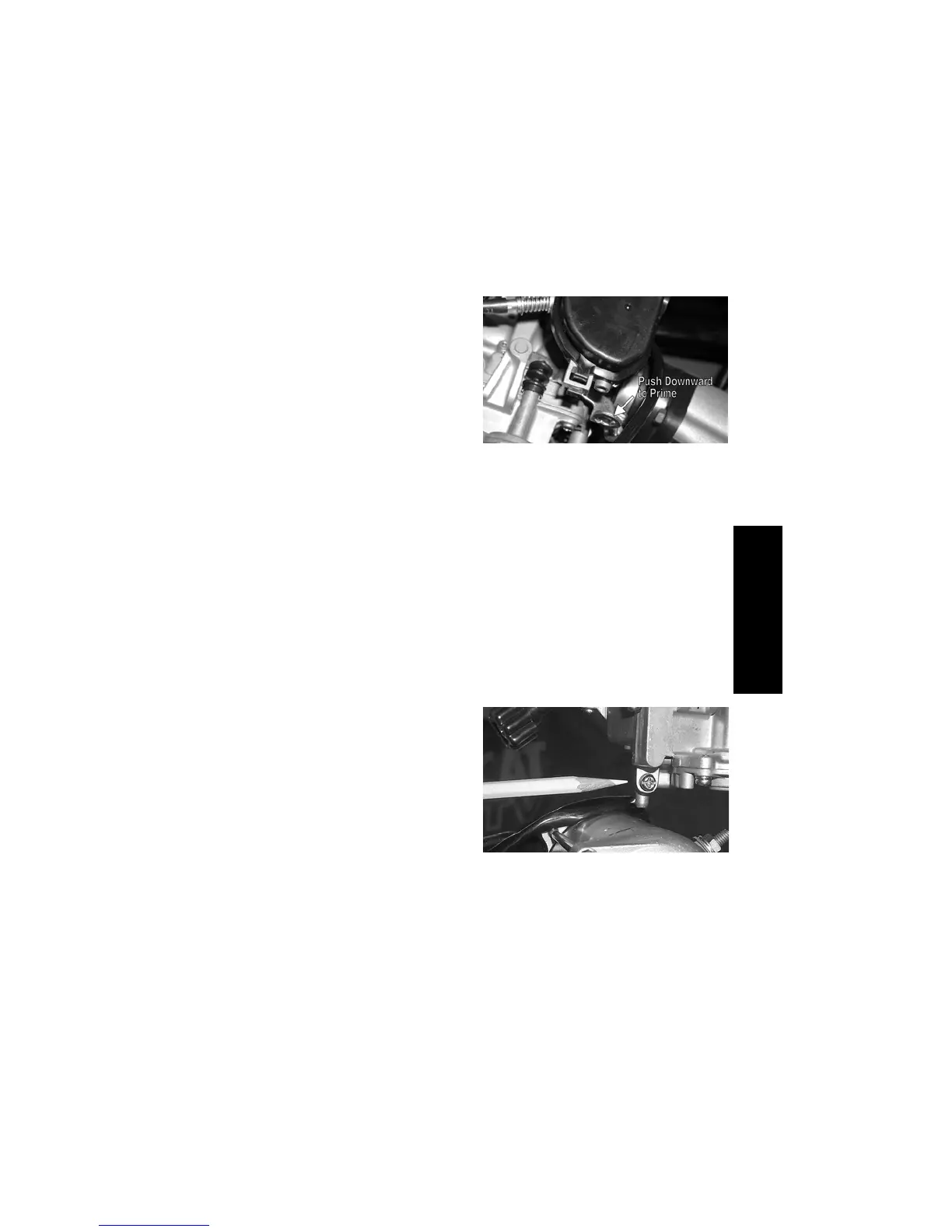

Primer - Cold Start
CF123A
The primer is located on the carburetor.
Depress and release the lever several times
prior to attempting to start a cold engine.
Gas/Vent Hoses
Replace the gas/vent hoses every two
years. Damage from aging may not
always be visible. Do not bend or
obstruct the routing of the carburetor vent
hose. Make certain that the vent hose is
securely connected to the carburetor and
hose holder and the opposite end is
always open.
Carburetor Float Bowl
Drain
AF925
Periodically, the float bowl should be
drained to remove condensation. To drain
the float bowl, use the following procedure.
1. Direct the float bowl drain hose into a
container.
To Next Page
