61
DIVISION II - OPERATION/
MAINTENANCE
10. Turn the engine off and wait approxi-
mately one minute. Recheck the oil
level.
11. Inspect the area around the drain plug
and oil filter for leaks.

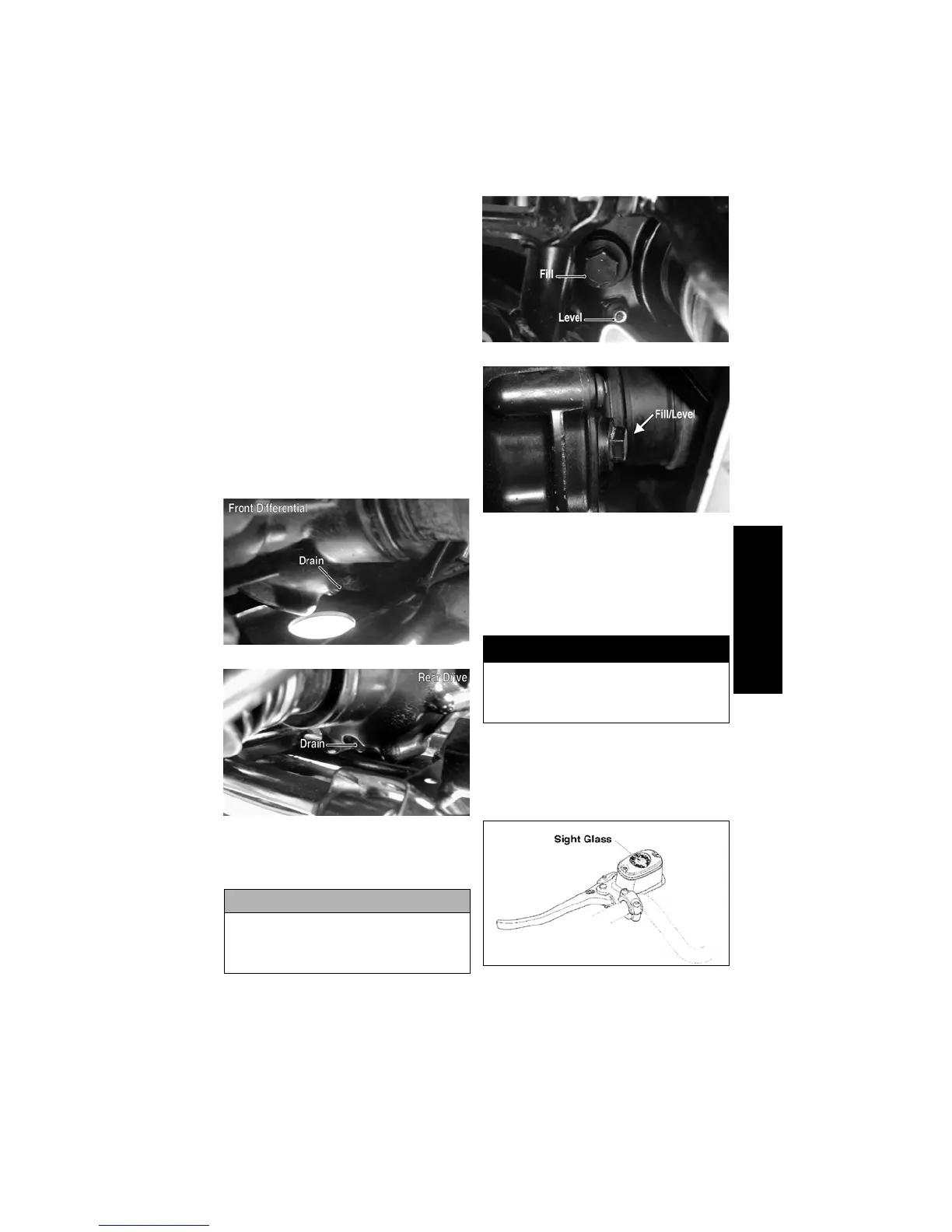

Front Differential and Rear
Drive Gear Lubricant
(Inspecting/Changing)
Inspect and change the gear lubricant in
each according to the Maintenance
Schedule. When changing the lubricant,
use approved SAE 80W-90 hypoid oil
and use the following procedure.
1. Place the ATV on level ground.
2. Remove each oil filler plug.
3. Drain the oil into a drain pan by remov-
ing in turn the drain plug from each.
CF107B
CF106C
4. After all the oil has been drained,
install the drain plugs and tighten
securely.
5. Pour recommended oil into each filler
hole.
CF113A
CF116A
NOTE: Arctic Cat recommends
the use of genuine Arctic Cat lubri-
cants.
6. Install the filler plugs.
Hydraulic Hand Brake
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. If the level in the reser-
voir is not visible in the sight glass, add
DOT 4 brake fluid.
738-420A
CAUTION
Inspect the oil for any signs of metal
filings or water. If found, take the ATV
to an authorized Arctic Cat ATV
dealer for servicing.
! WARNING
Be sure to inspect the hydraulic
brake system before each use.
Always maintain brakes according to
the Maintenance Schedule.
