arcweld TIG 201 AC/DC - Foot Pedal Setup

B-2 INSTALLATION B-2

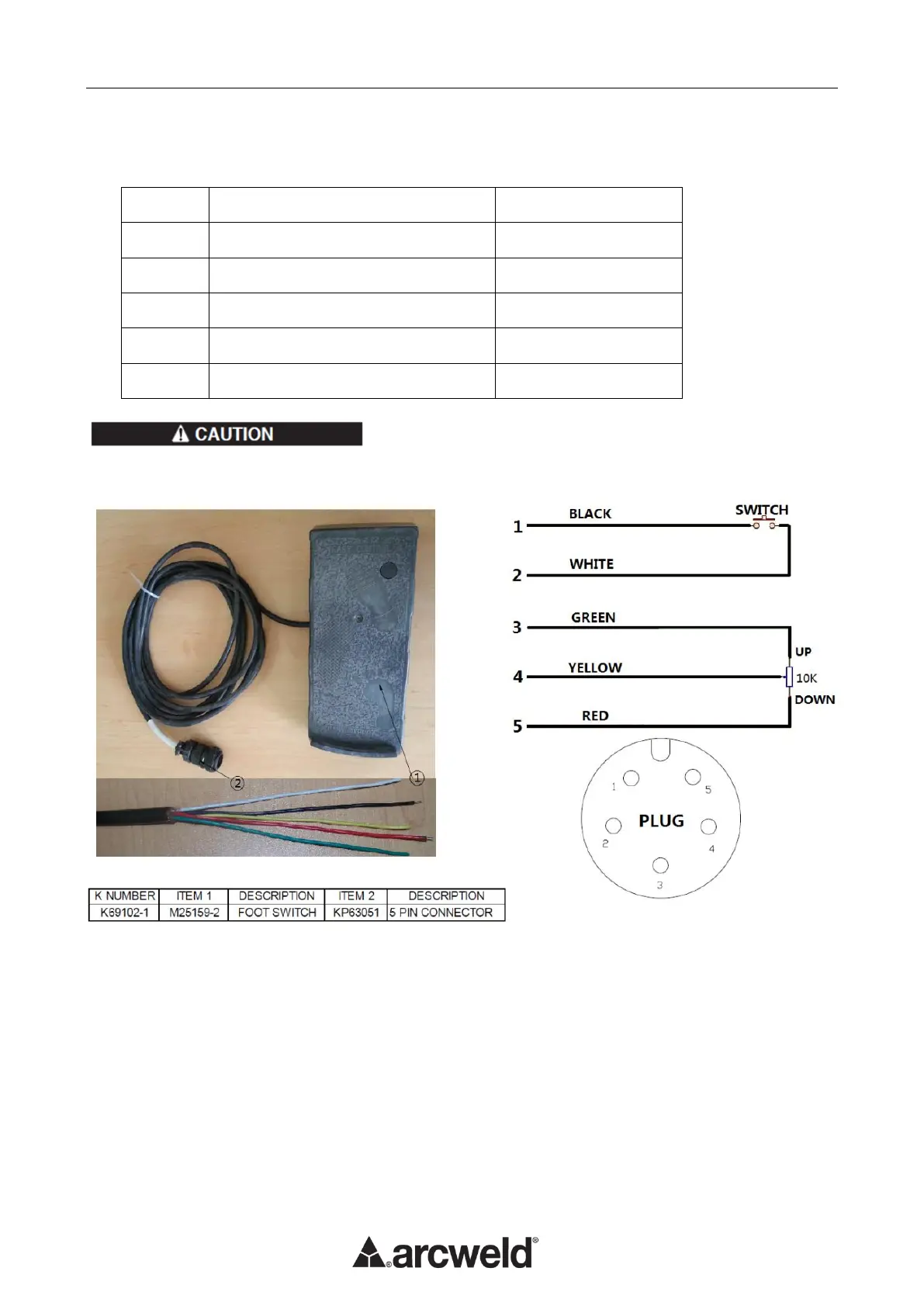

FOOT PEDAL
The foot pedal is used for remote control. The wire connection as below table for your reference.
PIN
DESCRIPTION
WIRE
1
Switch
Black
2
Switch
White
3
Resistor(up)
Green
4
Resistor(middle)
Yellow
5
Resistor(down)
Red
* For the safety and reliability of the electrical connection, the terminal connection must be reliable,
otherwise it will cause the connection terminal damage or affect the welding performance.
