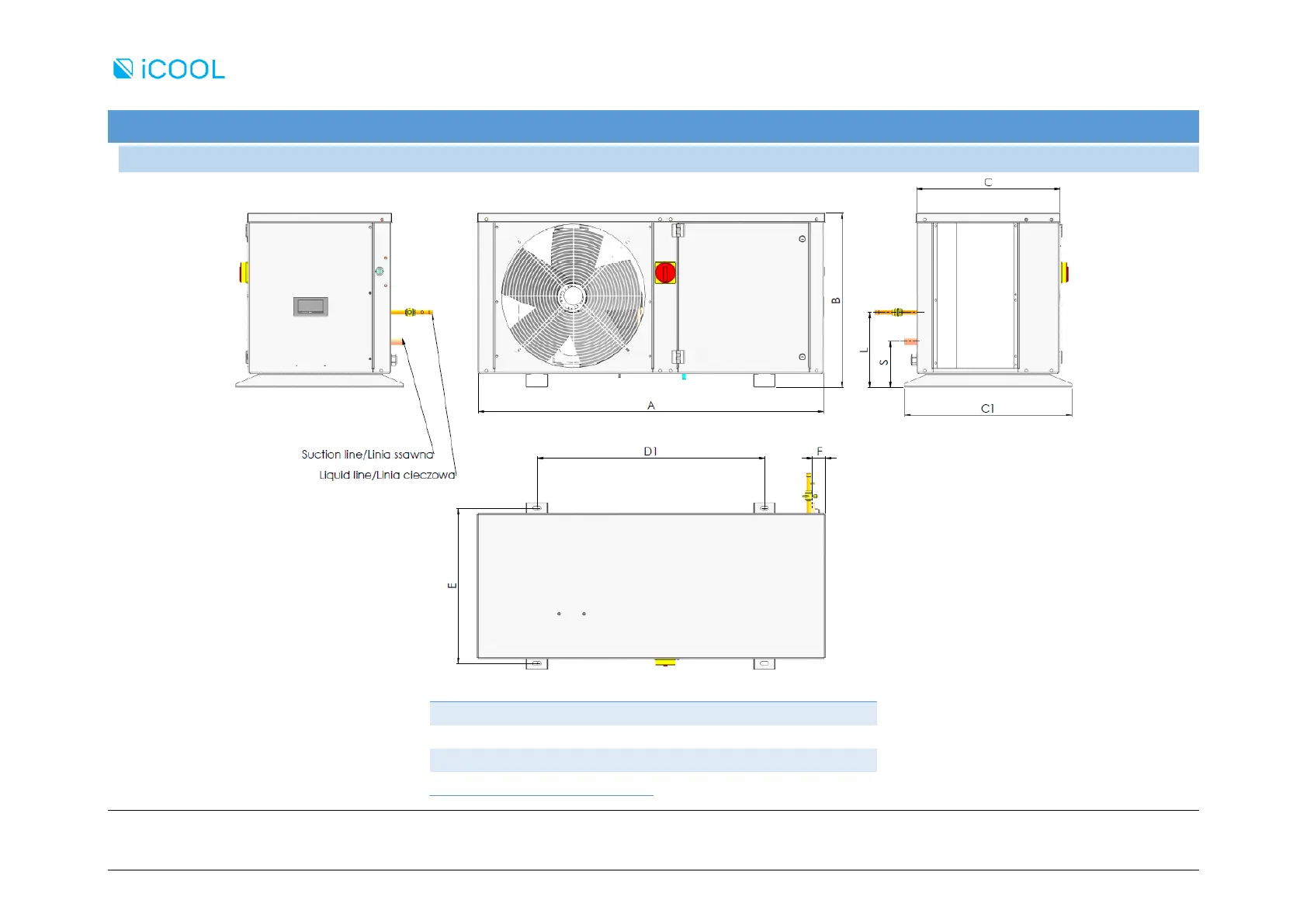

6. Габаритные чертежи / Units drawings
6.1. iCOOL 4.5 MHP
A
1116
mm
E
496
mm
B
559
mm
F
41
mm
C
467
mm
S
173
mm
C1
536
mm
L
91
mm
D1
728
mm
