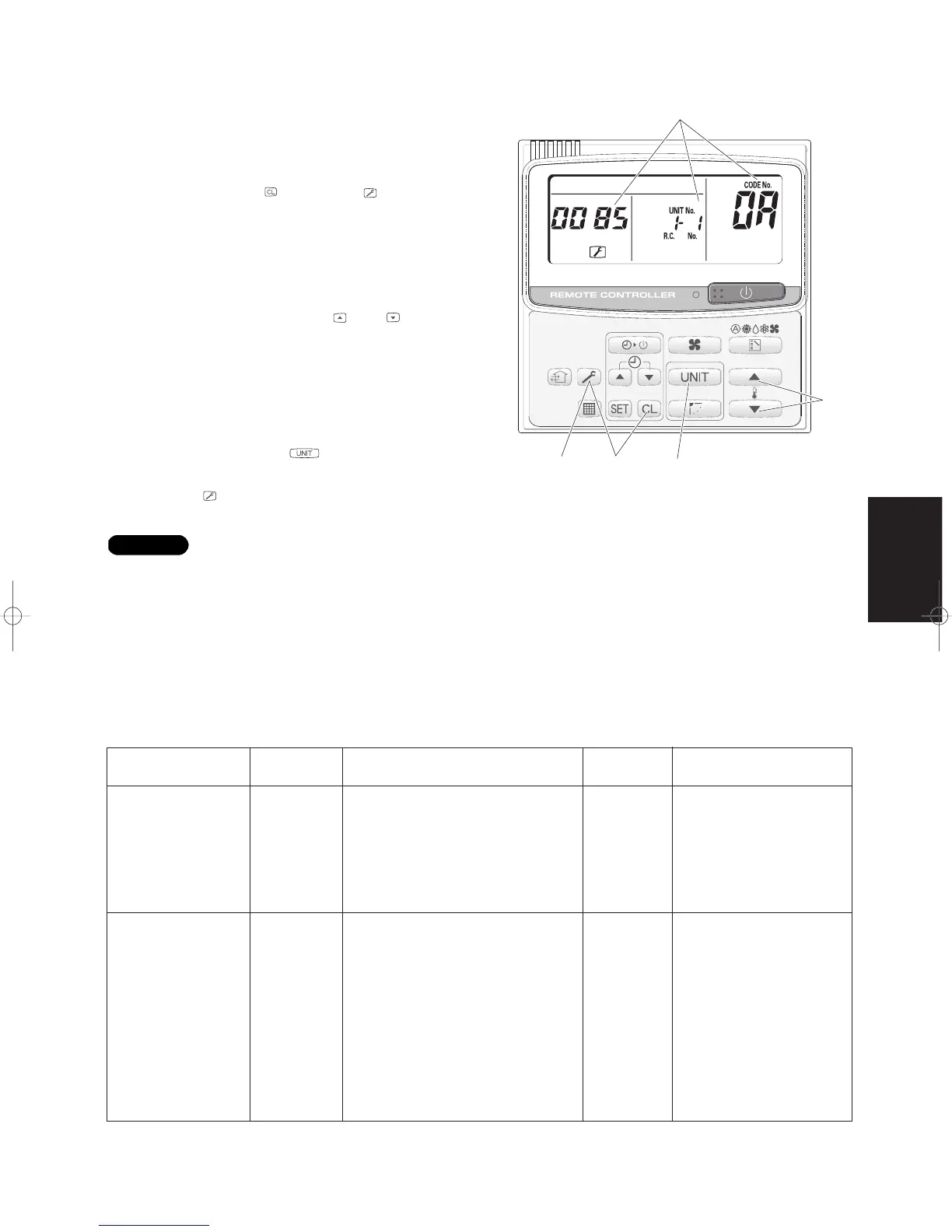

● The below check procedure can be used to display
all remote controller, indoor unit, and outdoor unit
sensor temperatures.
<Check procedure>
(1) Press and hold the button and button
simultaneously for 4 seconds or longer.
(2) Unit No. X-X (main unit No.), item code XX (sen-
sor address), and service monitor 00XX (sensor
temperature) appear on the remote controller
LCD. (See figure.)
(3) Press the temperature setting and buttons
and change the item code to the sensor address
of the sensor that you want to monitor.
(For the relationship between the sensor address
and the sensor type, refer to the below Sensor
Temperature Correlation Table.
(4) During group control and simultaneous-operation
multi control, press the button and change
to the unit that you want to monitor.
(5) Press the button to return to normal remote
controller operation.
The temperature display reads “- - - - ” for units that
are not connected.
* If monitor mode is selected during normal opera-
tion, the only parts of the LCD that change are
those shown in the figure.
All other displays do not change, and remain as
they were during normal operation.
Sensor installation Sensor
Sensor type
Sensor
Sensor type
location address address
00 Room temp. 05 –
(temp. used for control)*
01 Remote controller temp. 06 Discharge temp.
Indoor unit 02 Indoor intake temp. 07 –
03 Indoor heat exchanger temp. (E1) 08 –
04 Indoor heat exchanger temp. (E2) 09 –
0A Discharge temp. (TD) 12 –
0b – 13 –
0C – 14 Current
(AC current)
Outdoor unit 0d Intake temp. (TS) 15 Outdoor electronic control
valve position
0E Outdoor heat exchanger temp. (C1) 16 –
0F Outdoor heat exchanger temp. (C2) 17 –
10 – 18 –
11 Outdoor air temp. 19 –
Sensor Temperature Correlation Table
Sensor Temperature Display Function (Displayed both when operating and stopped)
* Main unit only when group control is enabled
