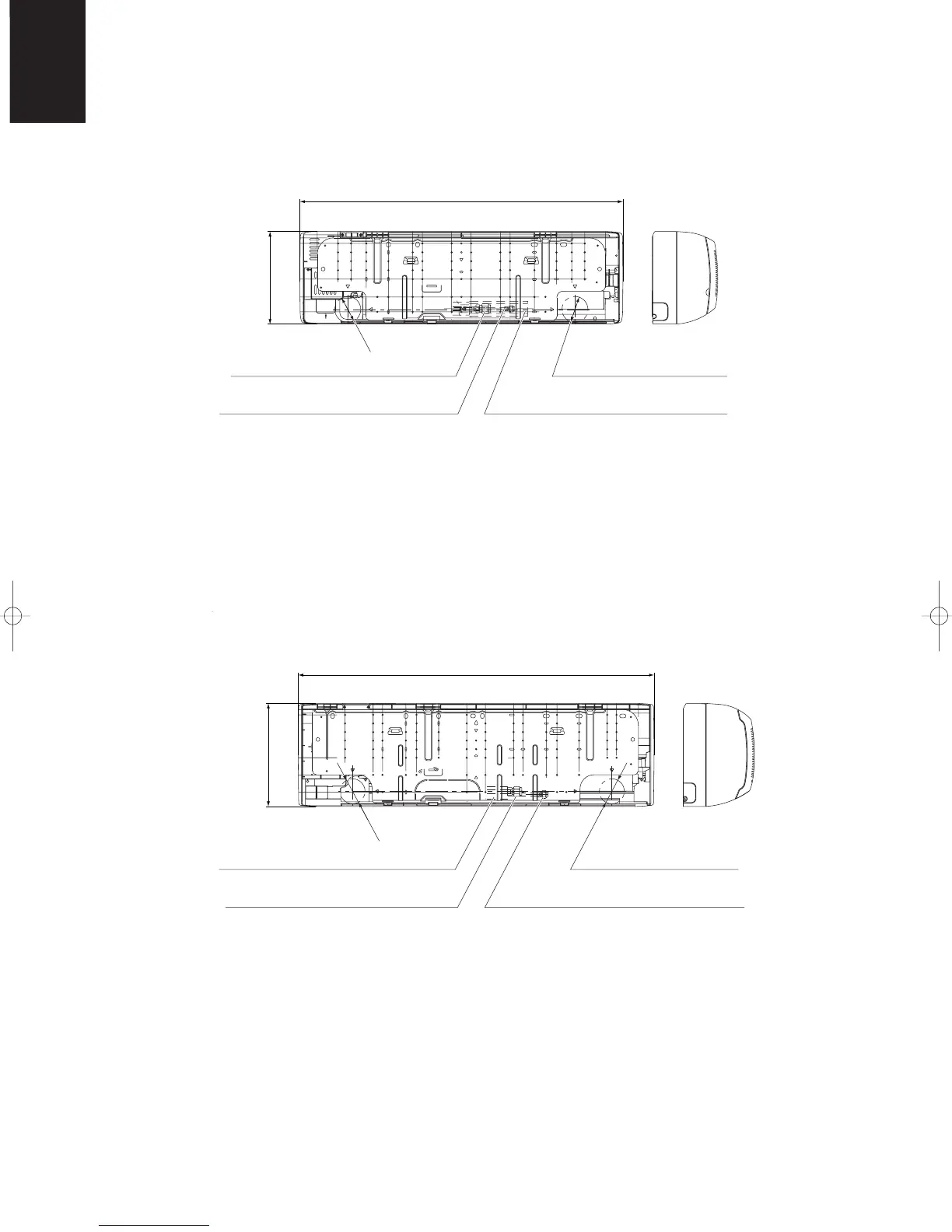

1-4. Dimensional Data
(A) Indoor Units: Wall-Mounted Type
36, 45, 56 Type
995
285
Drain hose VP13 (length: Approx. 450 mm)
Drain hose VP13 (length: Approx. 450 mm)
Narrow tube φ6.35 (length: Approx. 470 mm)
Narrow tube φ9.52 (length: Approx. 570 mm)
Drain and wiring port (φ9.52)
Drain and wiring port (φ9.52)
Wide tube φ12.7 (length: Approx. 400 mm)
Wide tube φ15.88 (length: Approx. 500 mm)
25 type
1,140
330
φ80
φ80
71 Type
