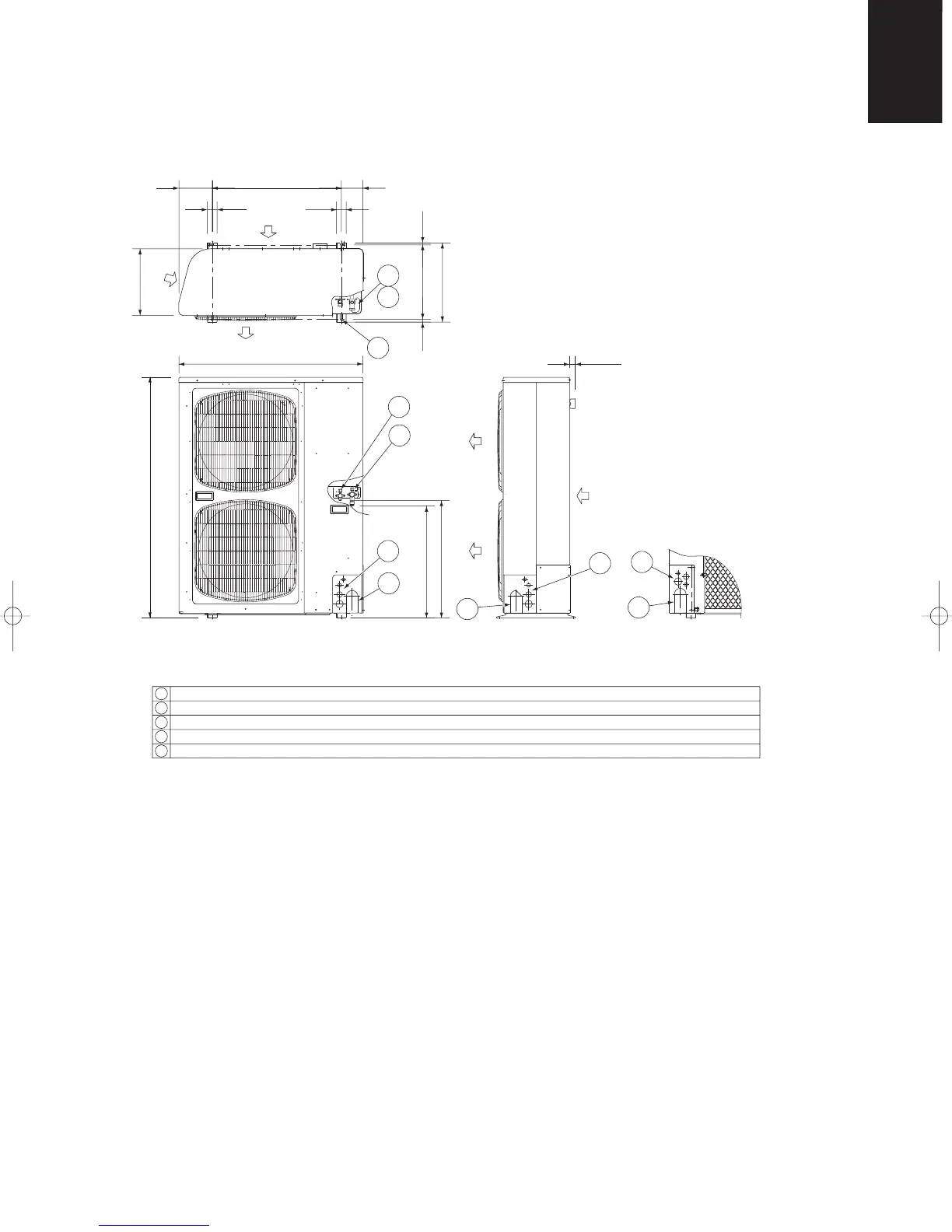

1-4. Dimensional Data
(B) Outdoor Unit: AES125PIH
573
600
940
1230
1
50 50
110 170
340
15 10
380
405
660
4
4
4
4
5
5
5
27
2
3
5
Hole for anchor bolt (4–R6.5) / Anchor bolt: M10
Refrigerant tube joint (liquid line tube) • Flare connection 3/8 in (9.52 mm)
Refrigerant tube joint (gas line tube) • Flare connection 5/8 in (15.88 mm)
Refrigerant tubing inlet (knock-out hole)
Power supply inlet (knock-out hole φ38, φ29, φ19, φ16 mm)
1
2
3
4
5
