5.Disassemble instructions
5-1. Disassemble Instruction
Gather the required tools and parts before starting installation.Read and follow the
instructions provided with any tools listed here.
Tools needed
·Plillips screwdriver
·Scissors
·Cordless drill

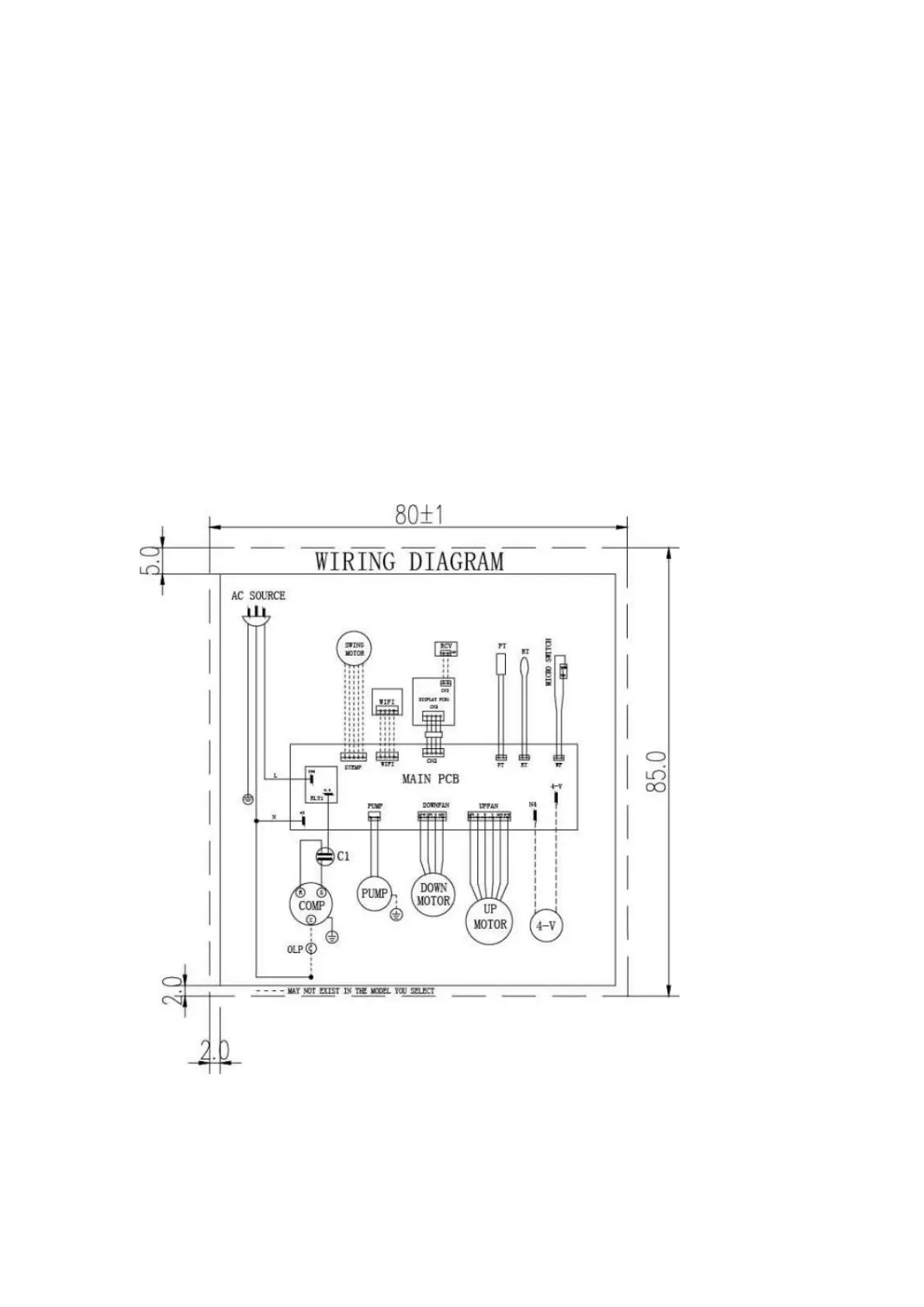

5-2. Electric Wiring Diagram
This wiring diagram is applicable for whole function unit, included cooling function, heat
pump, WIFI etc. The function marked by a dotted line means that your product may not
include it. The function marked by a solid line means that this function is available on your
product.
To Next Page
