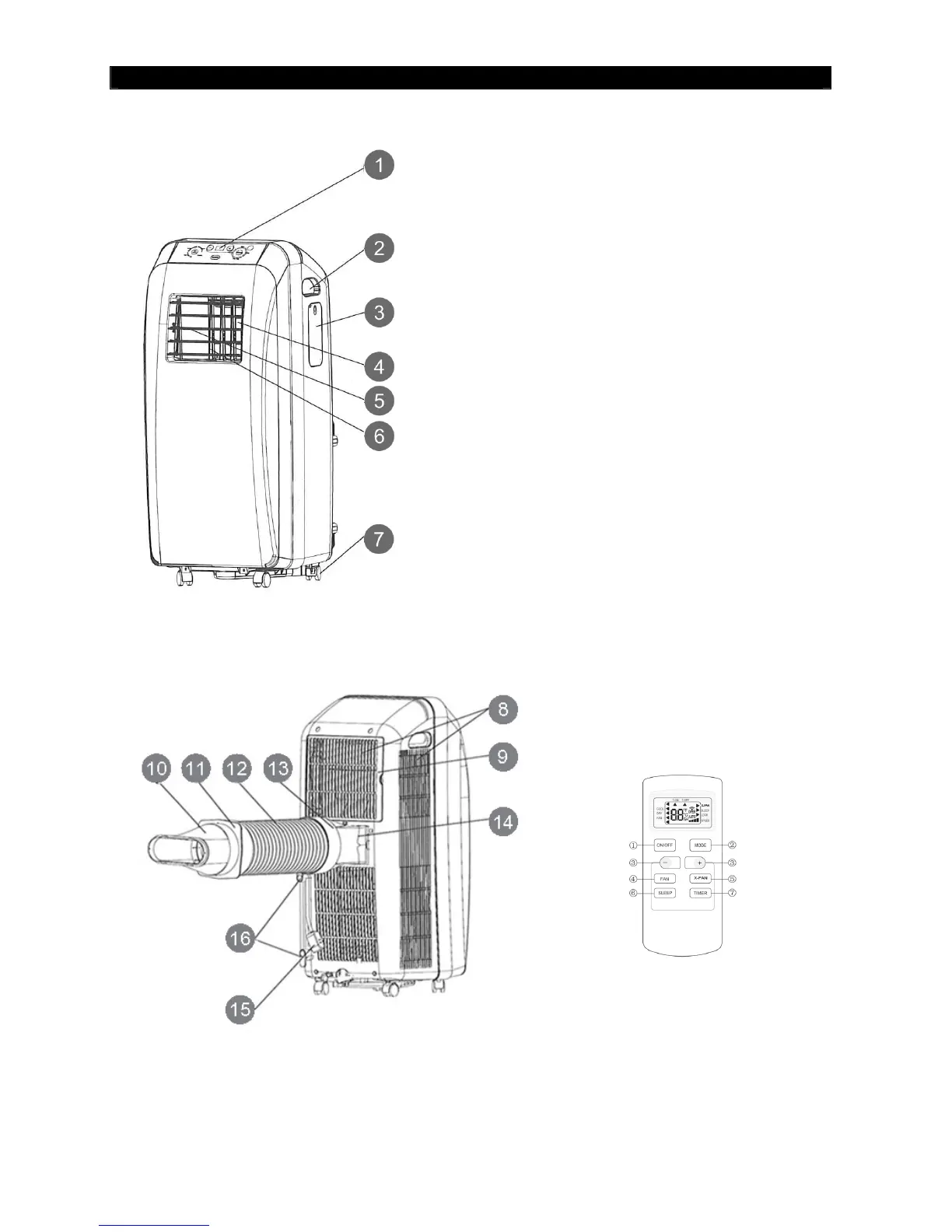

DESCRIPTION OF THE APPLIANCE
FRONT VIEW
REAR VIEW
Min/max operating limits (internal temperature)
Cooling: 18°C B.S. / 35°C B.S.
Dehumidification: 10°C B.S. / 35°C B.S.
Cooling mode room temperature adjustment range: 16°C B.S. / 30°C B.S.
1) CONTROL PANEL - FUNCTION BUTTONS
WITHOUT REMOTE CONTROL
2) HANDLE
3) REMOTE CONTROL COMPARTMENT DOOR
4) AIR DELIVERY
5) HORIZONTAL LOUVERS
6) VERTICAL LOUVERS
7) WHEELS
8) AIR INTAKE
9) GRILLE
10) TERMINAL CONNECTION FOR WINDOW
11) CIRCULAR CONNECTION FOR WINDOW
12) AIR EXPULSION HOSE
13) AIR EXPULSION HOSE TERMINAL
CONNECTION
14) FLAT CONNECTION
15) POWER CORD
16) CORD STORAGE HOOKS
17) REMOTE CONTROL
