Argo Relax - Installation Methods; Using Terminal Connection for Window; Using Window Unit Kit

19
V 12/14

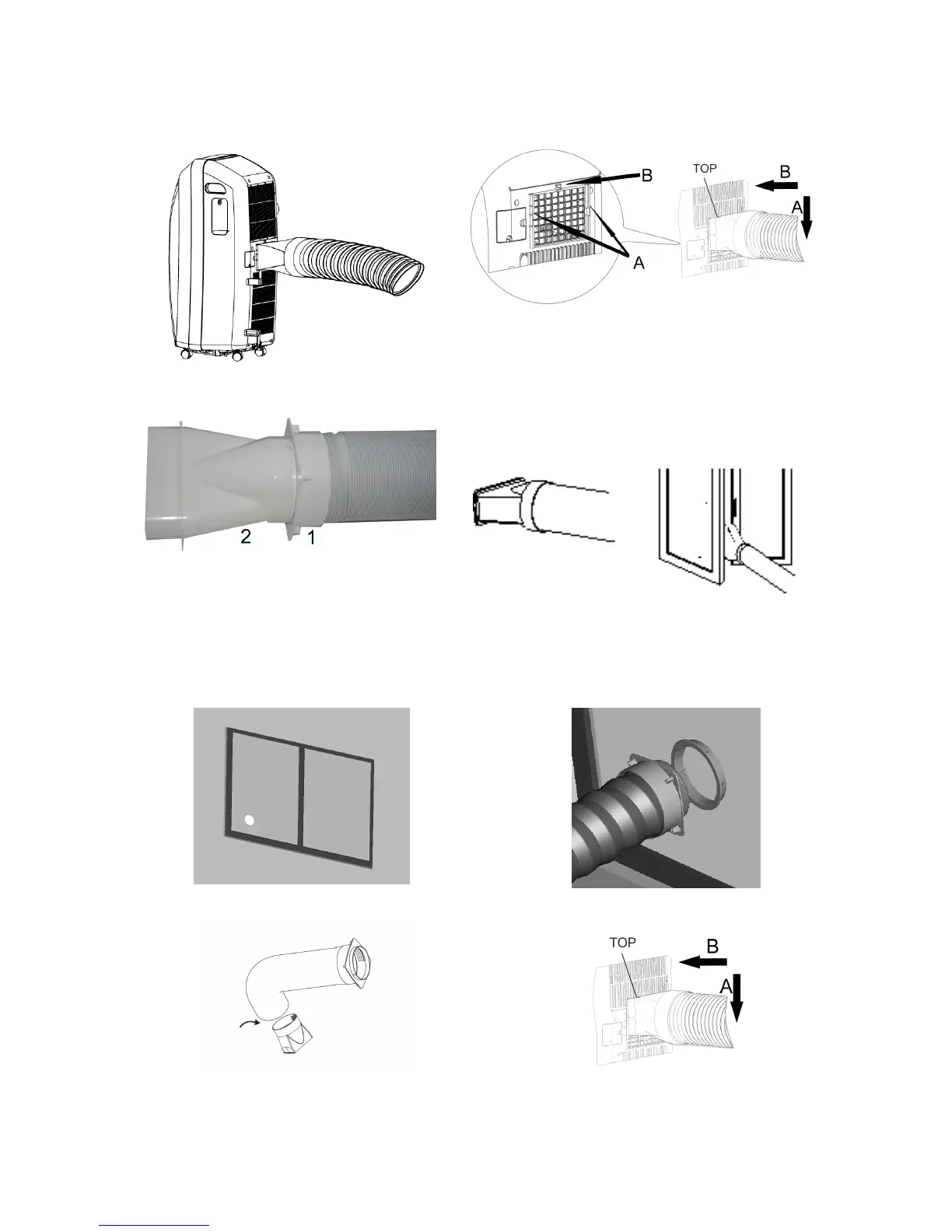

USE WITH TERMINAL CONNECTION FOR WINDOW
Connect the flat connection to the hose, extend the
hose as far as necessary to reach the outside and
connect it to the back of the air conditioner.
Now slide the flat connector downwards into the grooves
(A) and secure it with the hook (B).
The upper side of the flat connector is marked TOP.
Connect the circular window connector (1) to the end
of the hose and then the window terminal (2).
Open the windows and block one of the two leafs with the
handle.
Rest the terminal connector against the fixed section of the
window,and move the other section up towards it.
USE WITH WINDOW UNIT KIT
Make a 135 mm hole in the window panel.
Insert the window unit without its closure cap into the
window. Fit the circular connector into the retractable hose
and insert the hose with its circular connector into the
window unit.
Fit the flat connector to the hose.
Insert the assembled hose into the back of the air
conditioner.
