REPLACEMENT OF PARTS
14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 40 / 48

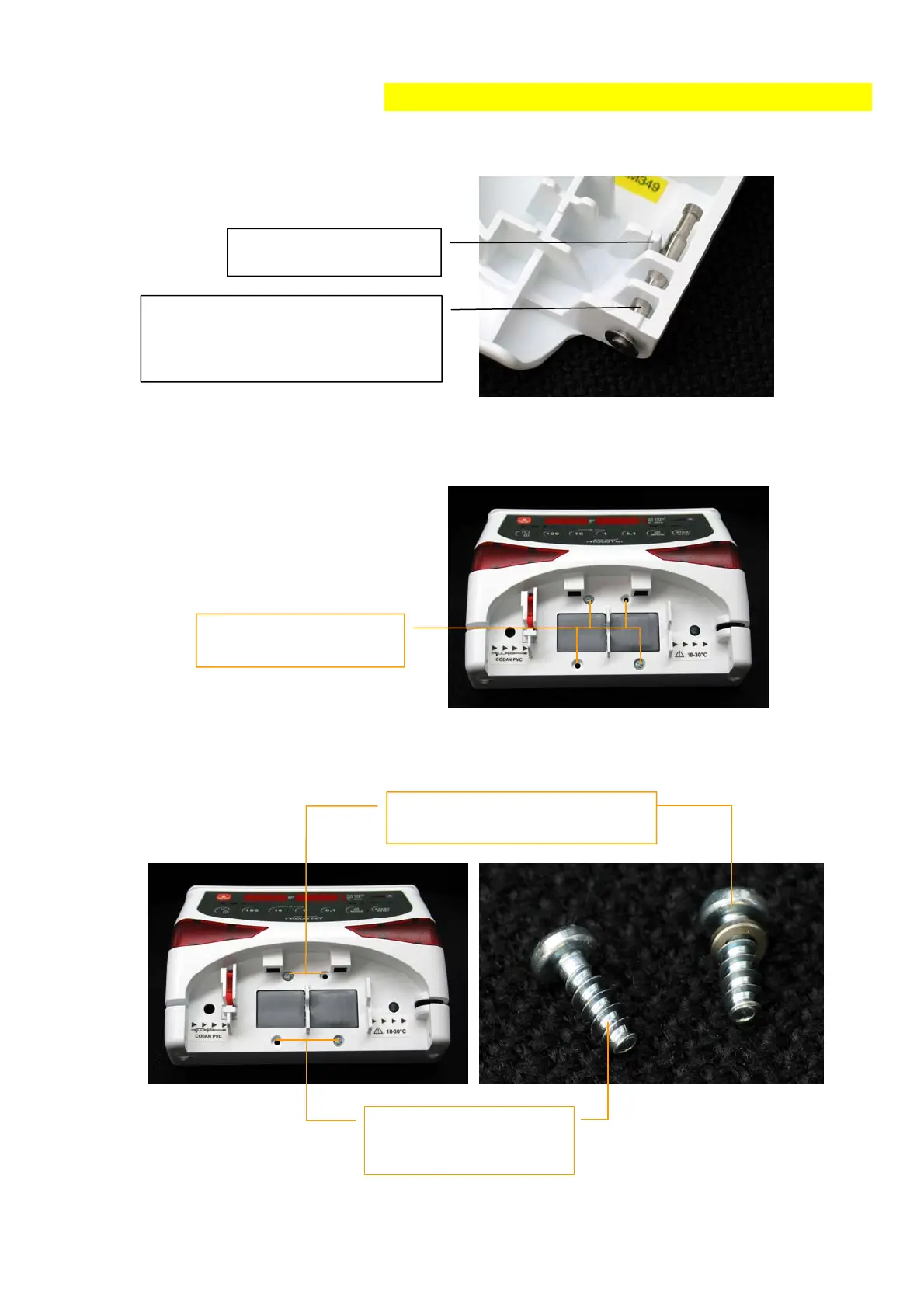

1. Gently press this hinge
sto
er backwards.
2. Pull the shaft towards the centre.
Repeat point 1 and 2 for the other
side of the door and then remove the
door.
1. Unscrew these screws.
Remove the pump unit.
1. Use the screw with two washers
at these places (torque 1.0 Nm)!
2. Use the screw without
a washer at these
places (torque 1.0 Nm)!
7.2.2. Removing the pump door
7.2.3. Disassembling the pump unit
7.2.4. Assembling the pump
