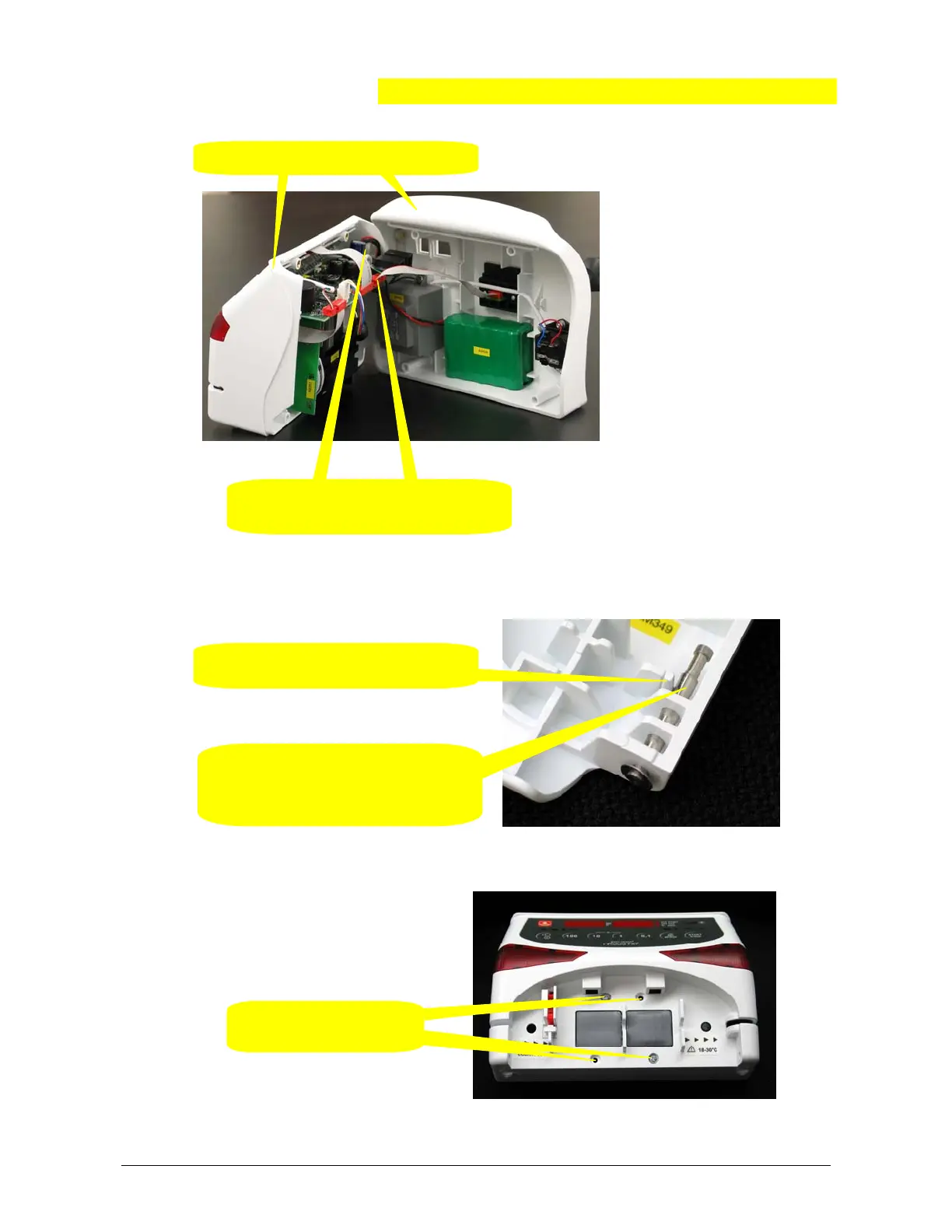

REPLACEMENT OF PARTS
14.164.A_A707en.SM.V1.01.doc ARGUS Medical AG 10.02.04 AS 28 / 38
1. Gently press this hinge stopper
ackwards.
2. Pull the shaft towards the centre.
Repeat point 1 and 2 for the other
side of the door and then remove the
door.
1. Unscrew these screws.
Remove the pump unit.
2. Separate the front and the back side.
3. Disconnect the battery, the supply
and the docking interface connection.
6.2.2. Removing the pump door
6.2.3. Disassembling the pump unit
