10. New Oil or UV Injection Mode
The purpose of the oil injection mode is to batch a user-defined quantity of refrigerant oil
from the graduate reservoirs on the unit to the vehicle air-conditioning system.
Important: The unit requires that the air conditioning system has previously been
evacuated to a maximum vacuum before this function can be carried out. Make sure you
have sufficient oil in the oil reservoir (8).

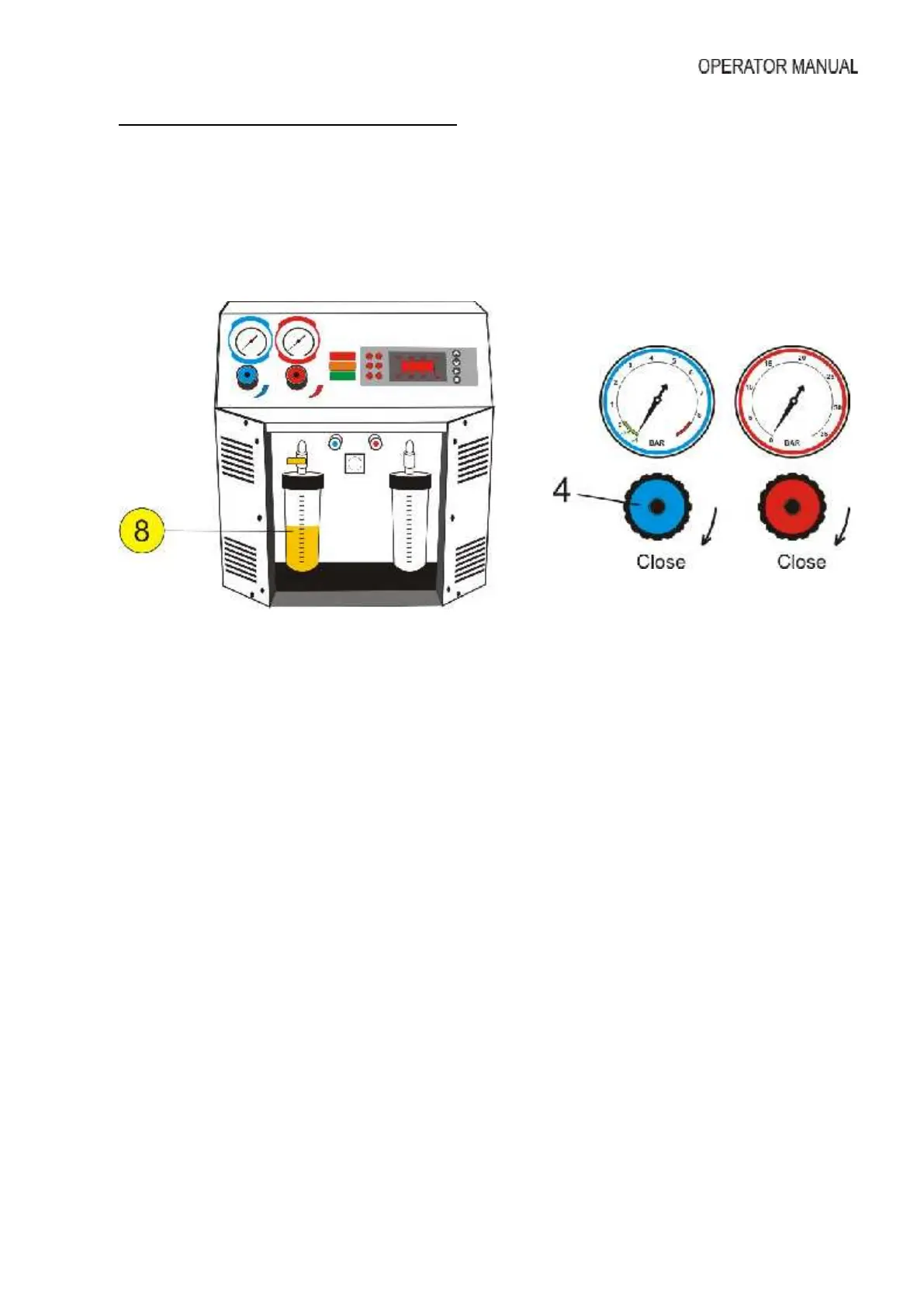

Keep hand valves (4) closed on the console. Open the ball valve on the oil reservoir (8) and note
the amount of oil being injected, by the graduations on the reservoir. Close the ball valve when
the correct amount has been injected.
Warning: If the oil reservoir (8) valve is not closed, excessive oil will be charged into the air
conditioning system, or the oil will be blown out of the reservoir when charging a system.
Note: Refrigerant oil (or UV dye) is injected in a/c system directly from Oil Container (8)
through DISCHARGE (RED) service hose ONLY, in the line after the compressor.
