EN - 9

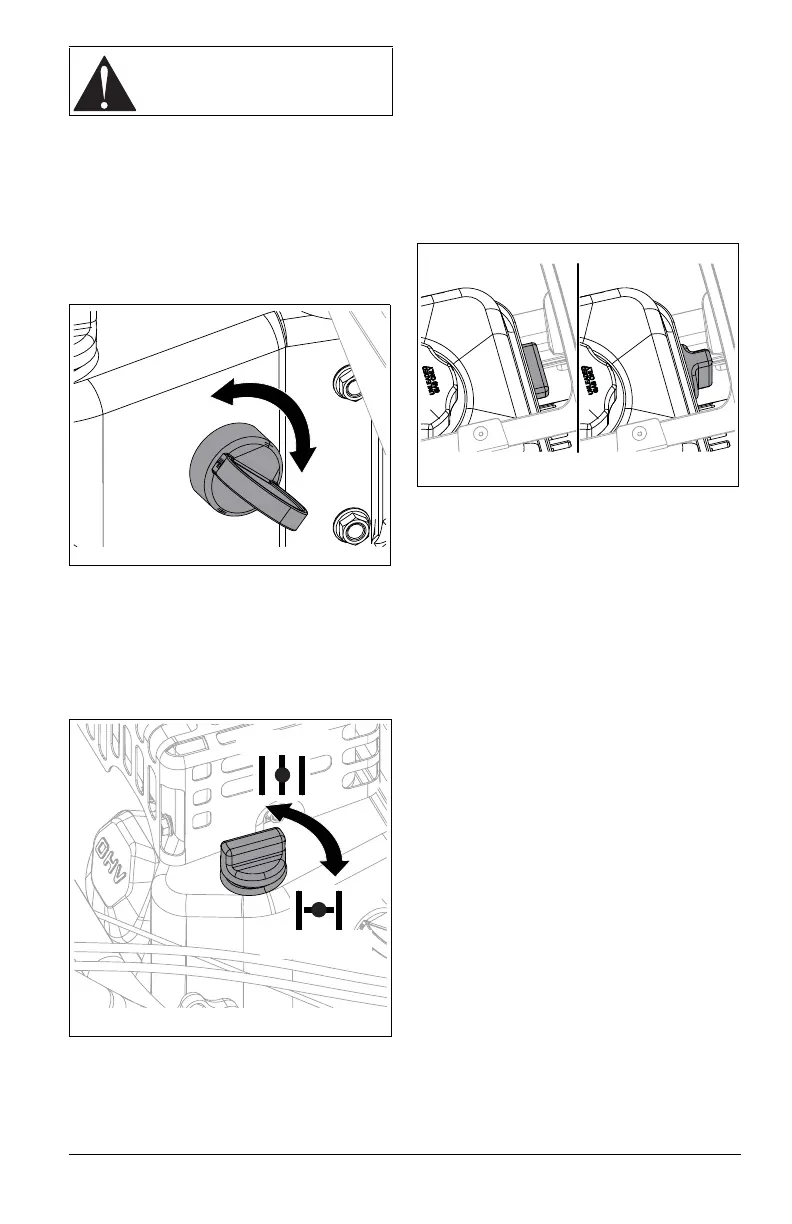

See Figure 3 for all controls and features
locations.
ENGINE SWITCH
See Figure 4.
The engine switch has two positions:
• Off – Engine will not start or run.
• On – Engine will start and run.
CHOKE CONTROL KNOB
See Figure 5.
• Start – (Choke Closed): Chokes off air to
engine for easier starting.
• Run – (Choke Open): Allows for normal
operation.
FUEL VALVE
See Figure 6.
Controls fuel flow to the engine. The fuel
valve has two positions:
• Closed – Use this position to service,
transport or store the unit.
• Open – Use this position to run the unit.
NOTICE: The valve is closed when it is
narrow and vertical when viewed from above.
PRIMER BULB
Adds fuel to engine for easier start on cold
engines.
See Start Engine on page 10.
RECOIL STARTER HANDLE
When pulled, handle will start engine. See
Start Engine on page 10.
ELECTRIC START BUTTON
Models 938032, 938033, 938034
When pushed, button will start a properly
choked and cranked engine.
See Start
Engine on page 10.
DISCHARGE CHUTE HANDLE
Models 938030, 938031, 938032, 938034
Turn discharge chute handle to control
direction of snow discharge.
See Position
Discharge Chute on page 11.
REMOTE DISCHARGE CHUTE
HANDLE ASSEMBLY
Model 938033
See Figure 7.
Move remote discharge chute handle forward
or backward to control direction of snow
discharge.
WARNING: AVOID INJURY. Read
and understand the
Safety section
before proceeding.
Choke Open
Figure 5
Choke Closed
To Next Page
