EN - 16
See Figure 18.
5. Insert scraper support into new scraper
blade. The D-shaped cutout must be on
the left (drive belt side).
6. Position scraper assembly under
housing.
• D-shaped cutout must be on the left.
• Edge must point down and forward.
• Scraper assembly bolt holes must align
with square bolt holes in auger housing.
7. Move scraper assembly backward and up
until small lip on top of scraper blade
contacts bottom lip of housing.
8. Install bolts and nuts. Tighten nuts to
4.5 – 5.7 N•m (40 – 50 lb-in). Threads
must protrude beyond the nut.
9. Return unit to operating position.
IMPORTANT: If auger paddles are pulling too
strongly or scraper blade is not clearing
completely, loosen nuts (do not remove) and
slide scraper assembly down slightly. Tighten
nuts.
ADJUST REMOTE CHUTE
ROTATION CABLES
Model 938033
1. Stop engine, remove key and close fuel
valve. Allow unit to cool.
See Figure 19.
2. Open fuel and oil door to access chute
rotation cable adjustment screws.
3. Loosen cable clamp screws.
4. Pull cable covers to the right to remove
slack.
5. Tighten screws and close fuel and oil
door.
NOTICE: Remote chute rotation cables may
also be accessed from under unit by tipping
unit forward.

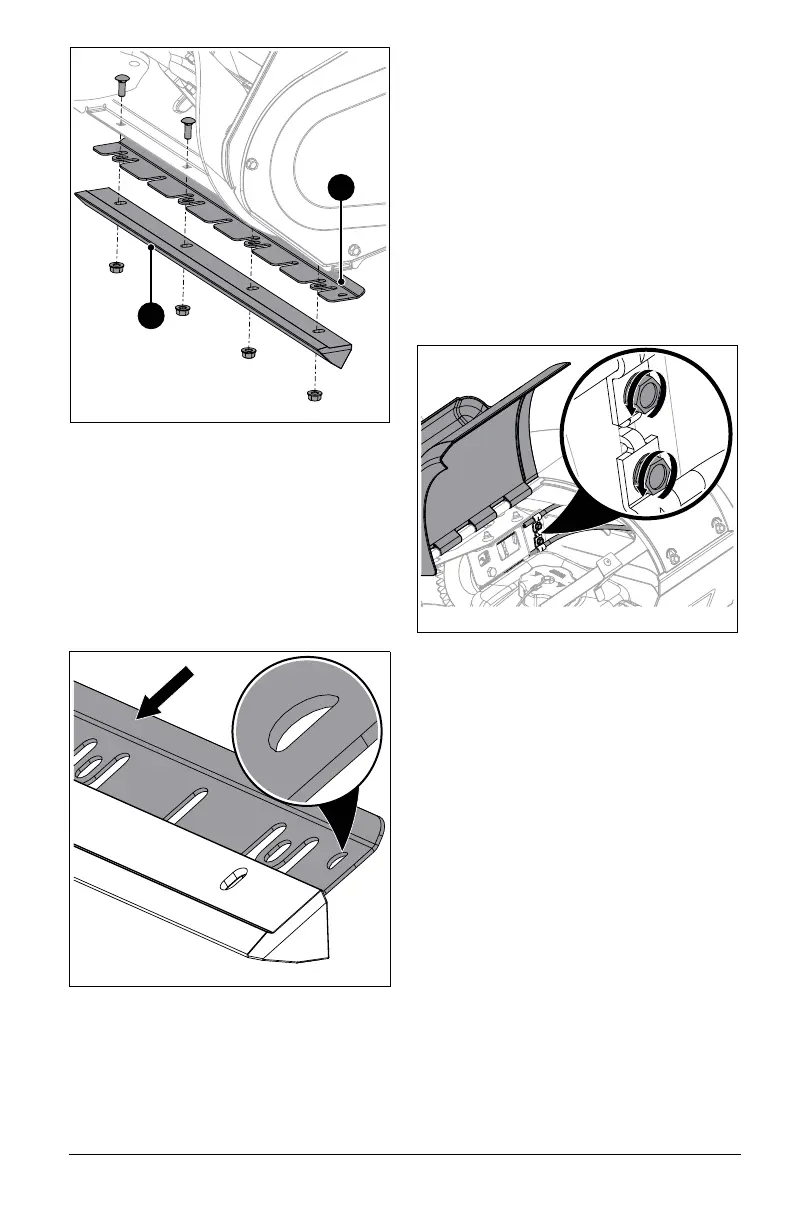

Figure 17
1. Scraper Support
2. Scraper Blade
1
2
