COMMISSIONING

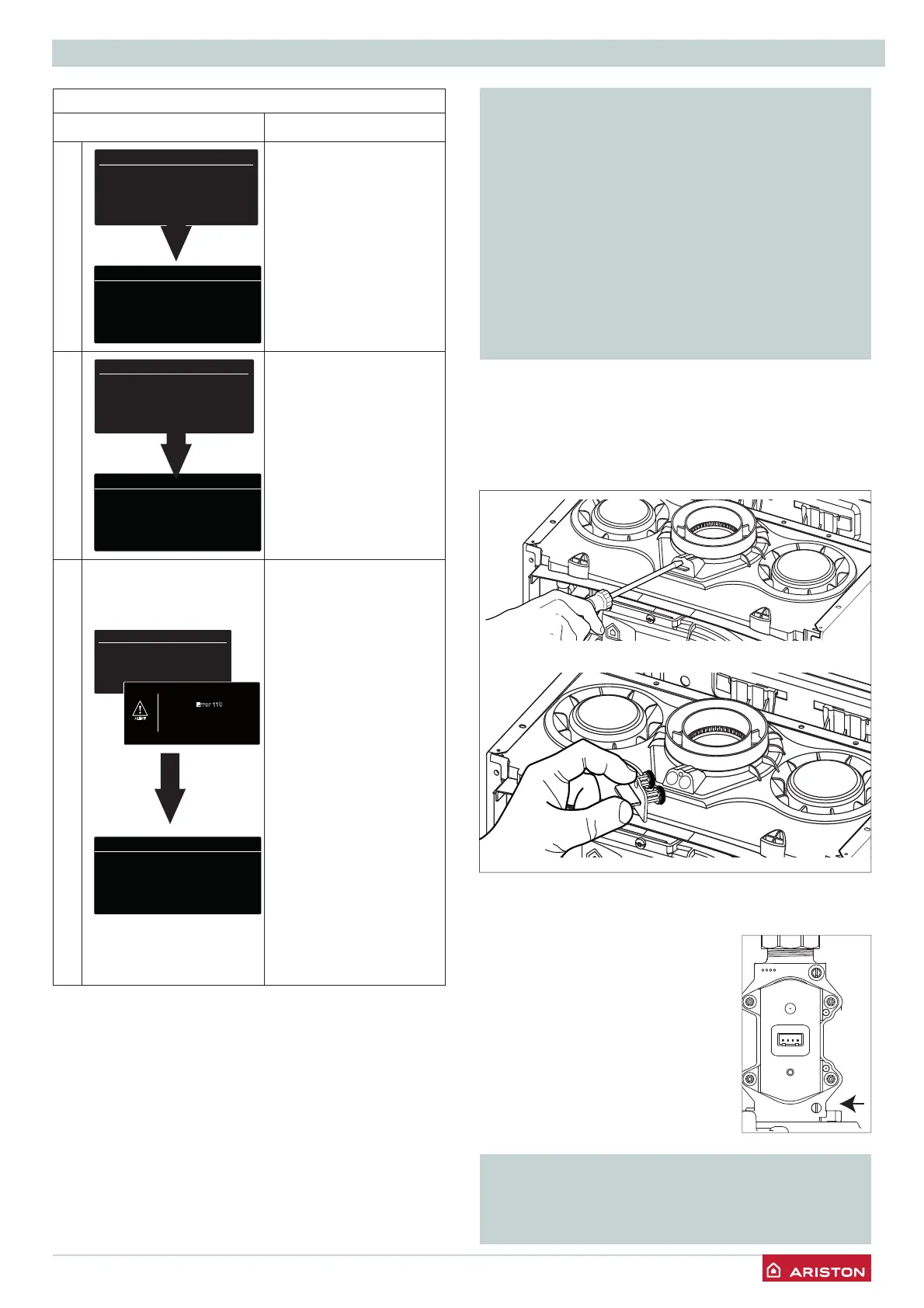

Table B
Error Description
01
Uncompleted calibration
01 - Flow Check Failed
Start the System air purge
and automatic calibration procedure
Press Ok to confirm
00/00/00 00:00
Insuffi cient circulation.
Make sure that:
- the pump works correctly
- the water pressure in the
system is suffi cient.
02
Uncompleted calibration
02 - Overheat
Start the System air purge
and automatic calibration procedure
Press Ok to confirm
00/00/00 00:00
- Deteted a C.H. Flow
temperature ≥ 88°C in Heating
Mode
- Deteted a C.H. Flow
temperature ≥ 88°C or a C.H.
Return temperature >67°C in
D.H.W. Mode.
(Open a hot water tap or the
zone valves/thermostatic
valves on the system to
dissipate heat).
03
Uncompleted calibration
03 -
Send Probe Damaged
Error 110
Send Probe Damaged
ALERT
Call the technical service
Start the System air purge
and automatic calibration procedure
Press Ok to confirm
00/00/00 00:00
Error 03 and the detected
error (ex: Error 110 - Send
Probe Damaged” - see Table
summarising error codes) are
displayed alternately for 10
seconds.
Press the RESET button for
Operation Shutdown, the
display again requires to start
the automatic calibration.
For Safety shut-off if
the problem is removed
automatically, the display
again requires automatic
calibration.
If the boiler still indicates
a safety shut-off , switch it
off . Make sure the external
electric switch is in the OFF
position, shut off the gas
valve and contact a qualifi ed
technician.
WARNING!!
THE AUTOMATIC CALIBRATION MUST BE DONE IN
CASE OF:
- REPLACEMENT OF: FAN, GAS VALVE, AIR/GAS
MIXER, BURNER, ELECTRODE.
- REPLACEMENT OF P.C.B.
- GAS CHANGEOVER
- ANY MODIFICATION TO THE FOLLOWING
PARAMETERS
220 - SOFT IGNITION
231 - MAX CH ADJUSTABLE
232 - MAX DHW PERCENTAGE
233 - MIN PERCENTAGE
234 - MAX CH PERCENTAGE
4. Preparing the measuring equipment
Connect the calibrated measuring device to the left-hand
combustion outlet by unscrewing the screw and removing the
blanking cover.
ATTENTION!!
THE BOILER CAN NOT BE ACTIVATED IF THE
PRESSURE IS NOT CORRESPONDING TO THE
TABLE SUMMARISING CHANGES
5. Supply dinamic pressure check
Loosen the screw 1 and insert the pressure
gauge connection pipe into the pipe tap.
Switch the boiler on at D.H.W. maximum
power, enabling the “Chimney function”
(press the RESET button for 10 seconds
and press th button > to select D.H.W.
maximum power).
The supply pressure should correspond
to the value established in relation to the
type of gas, for which the boiler is designed
see Table summarising changes.
