1.5.4 Removing the pump

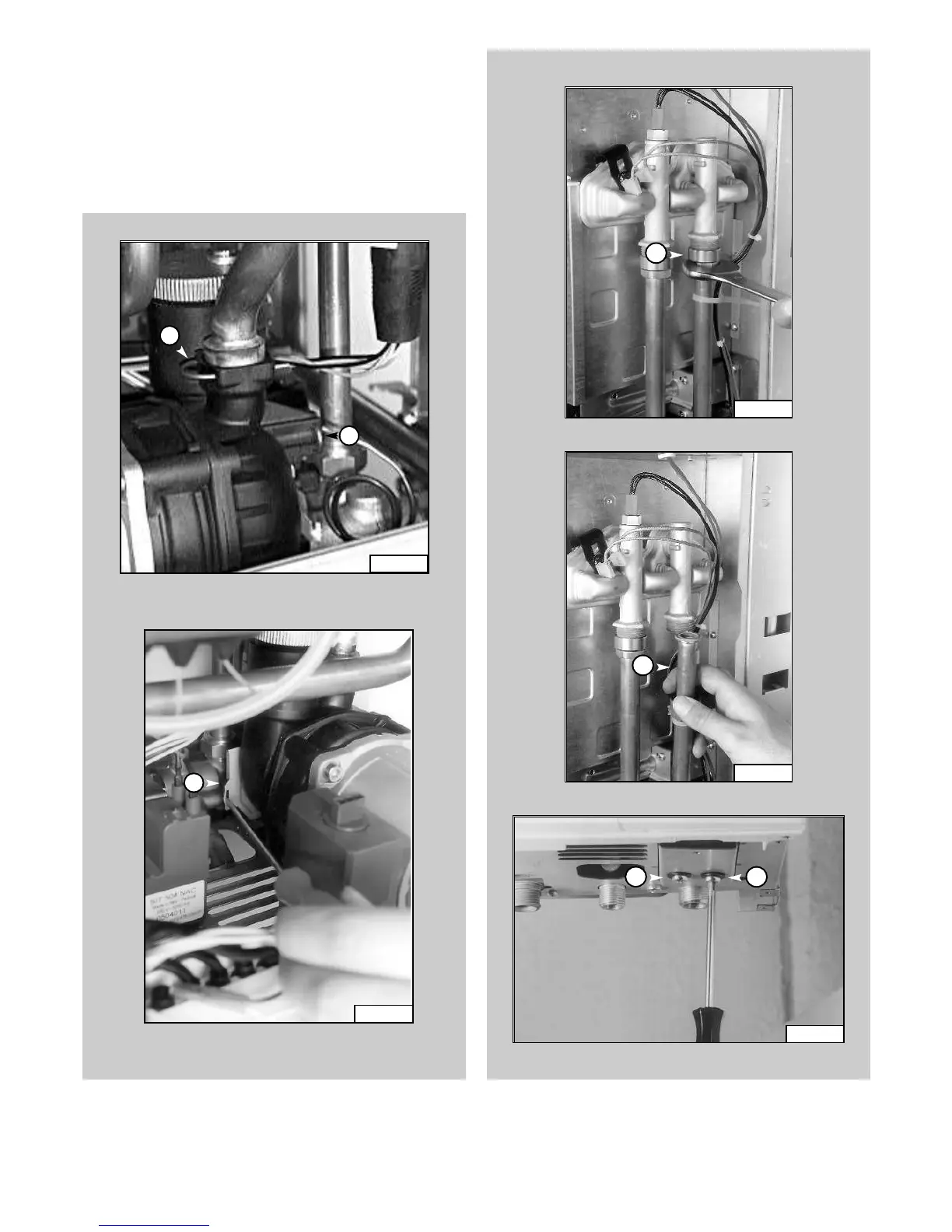

1. Remove the U-clip “ Z” (FIG. 1.37);
2. Remove the retaining clips “A1” (FIG. 1.38);
3. Release the nut “C1” (FIG. 1.39);
4. Remove the pipe “D1” (FIG. 1.40);
5. Remove the screws “E1” (FIG. 1.41);
6. Remove the pump.
Z
FIG. 1.37
FIG. 1.38
FIG. 1.39
A1
C1
Z
FIG. 1.40
FIG. 1.41
D1
E1
E1
