Ariston MICROCOMBI 23 MFFI Servicing Instructions

14

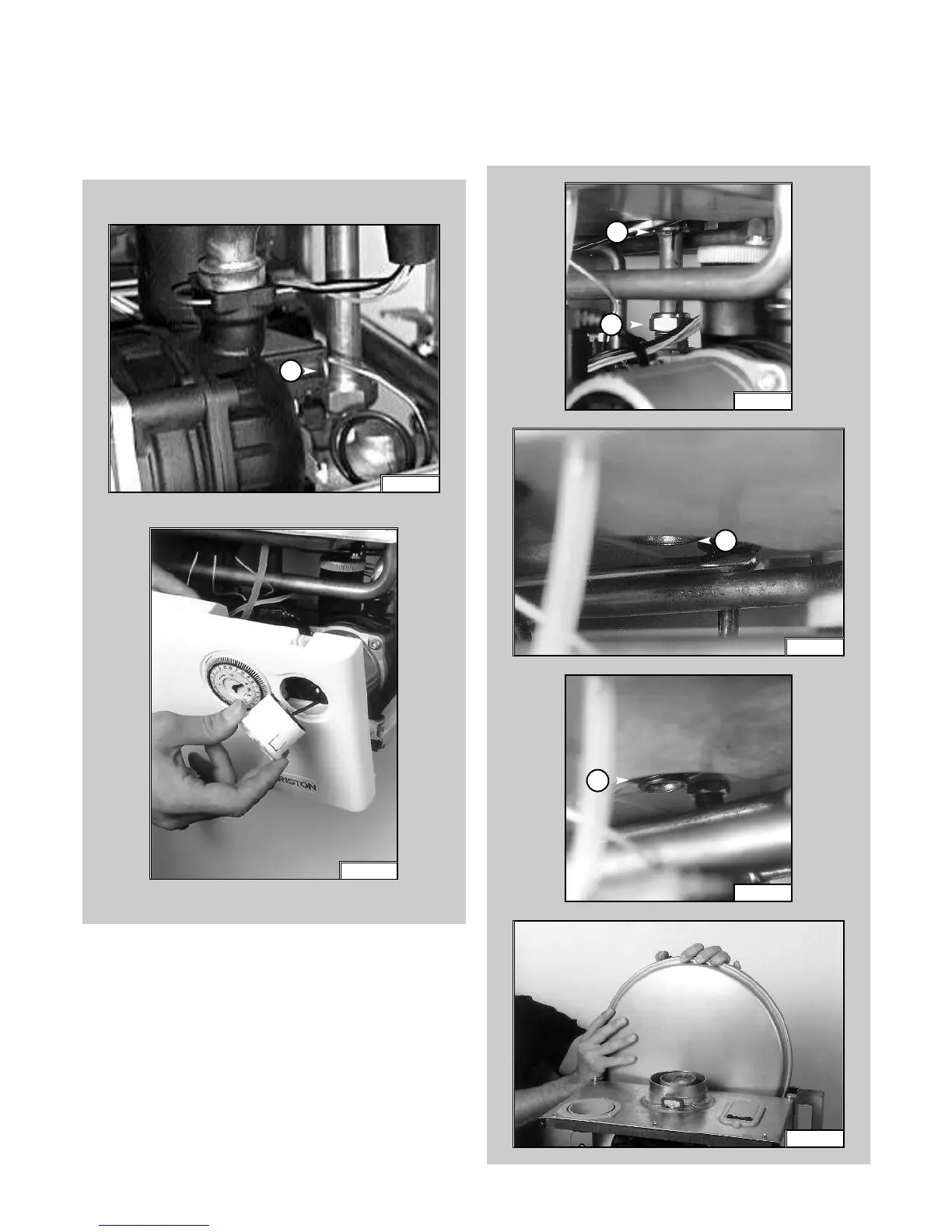

1.5.6 Removing the expansion vessel
1. Release nuts “G1” and remove the gas pipe (FIG. 1.44);
2. Release nut “H1” (FIG. 1.45);
3. Remove back-nut “I1” (FIG. 1.46);
4. Remove the expansion vessel (FIG. 1.47).
1.5.5 Removing the pressure gauge
1. Remove the U-clip “F1” (FIG. 1.42)
2. Remove the pressure gauge coupling (FIG. 1.42);
3. Push the pressure gauge through the control panel from
the rear (FIG. 1.43).
FIG. 1.44
F1
FIG. 1.43
G1
H1
FIG. 1.45
FIG. 1.46
FIG. 1.47
G1
I1
FIG. 1.42
