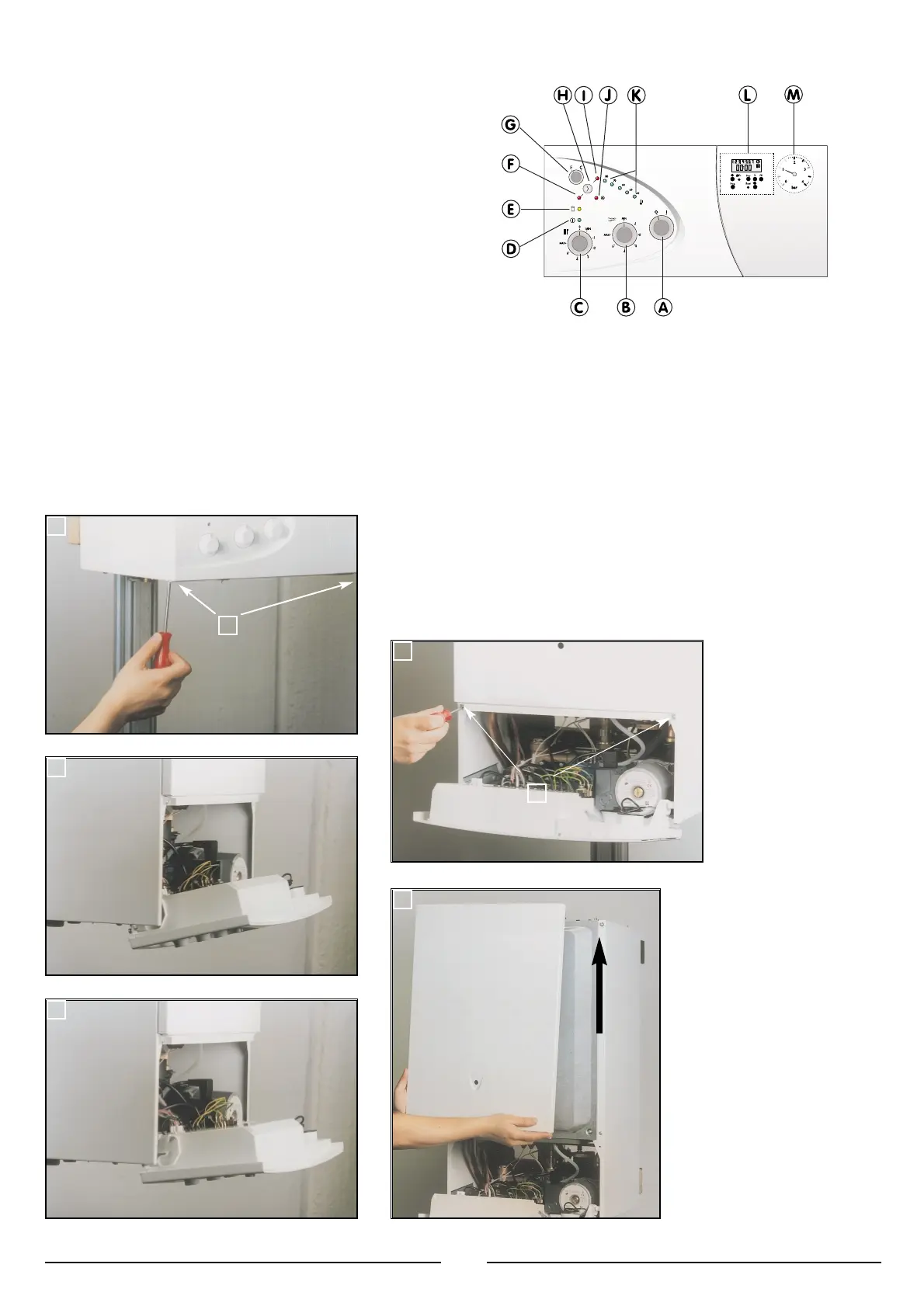

In order to access the inside of the boiler, it is necessary to unscrew
the fastening screws “A” of the control panel located on the lower part
of the panel itself.
The control panel moves downward and when pulled forward rotates
on two lateral hinges.
The panel stays in a semi-horizontal position, which allows access to
the inner parts of the boiler.
In order to increase the maneuvering space, it is possible to raise the
control panel and rotate it to a fully horizontal position.
16
3.3 REMOVING THE
FRONT PANEL
B
1
2
3
4
5
A
LEGEND:
A - On/Off knob
B - Domestic hot water temperature adjustment knob
C - Central heating selection (winter) and temperature
adjustment knob
D - On/Off L.E.D. (green)
E - Fume sensor L.E.D. (yellow)
F - Ignition failure (lockout) L.E.D. (red)
G-“Economy/Comfort” mode selection knob
H - Ignition failure (lockout) and/or overheat reset button
I - Overheat L.E.D. (red)
J - Low system water level L.E.D. (red)
K - Central heating temperature L.E.D (yellow)
L - Time clock
M - Heating system pressure gauge
3.2 CONTROL PANEL
FIG. 3.1
To dismantle the front
casing panel it is necessary
to:
1 - Remove the two screws
“B”;
2 - Lift the front casing panel
up and forward.
