Ariston Type C Installation Instructions

16
B063
Checking the fuses
1.
Remove the inspection cover on the reverse of the
control panel (FIG. 1.60);
2. Remove the fuses (FIG. 1.61).
1.6 ACCESS TO THE CONTROL SYSTEM
Removing the time clock
1.
Unplug electrical connection “W1” from the clock (FIG.
1.62);
2. Remove the screws “W2” (see fig. 1.63);
3. Remove the clock from the panel (see fig. 1.64).

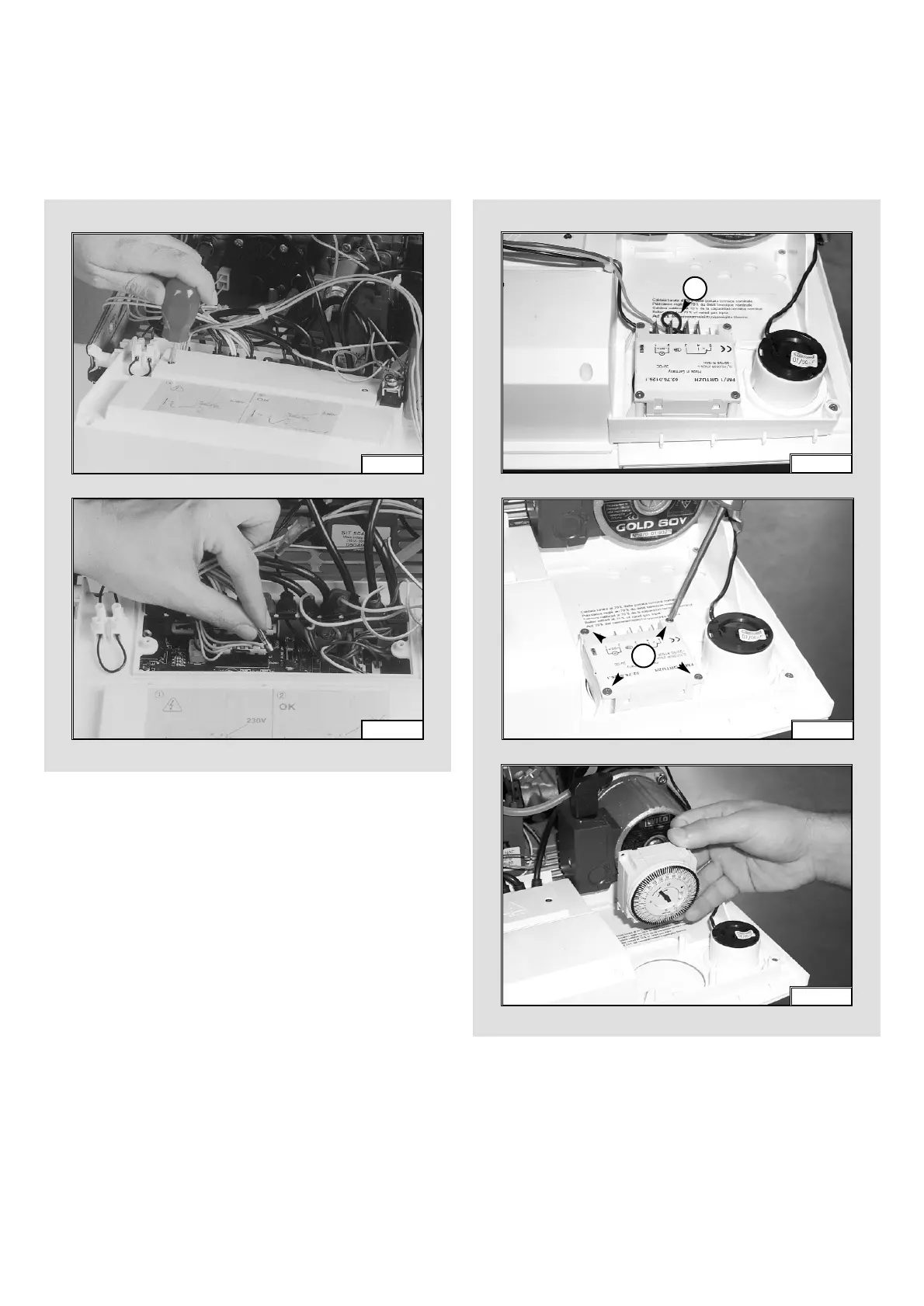

FIG. 1.60
FIG. 1.62
FIG. 1.61
FIG. 1.64
W1
72.eps
61.eps
69.eps
1190.tif
FIG. 1.63
W2
