Removing the sealed chamber frontal cover

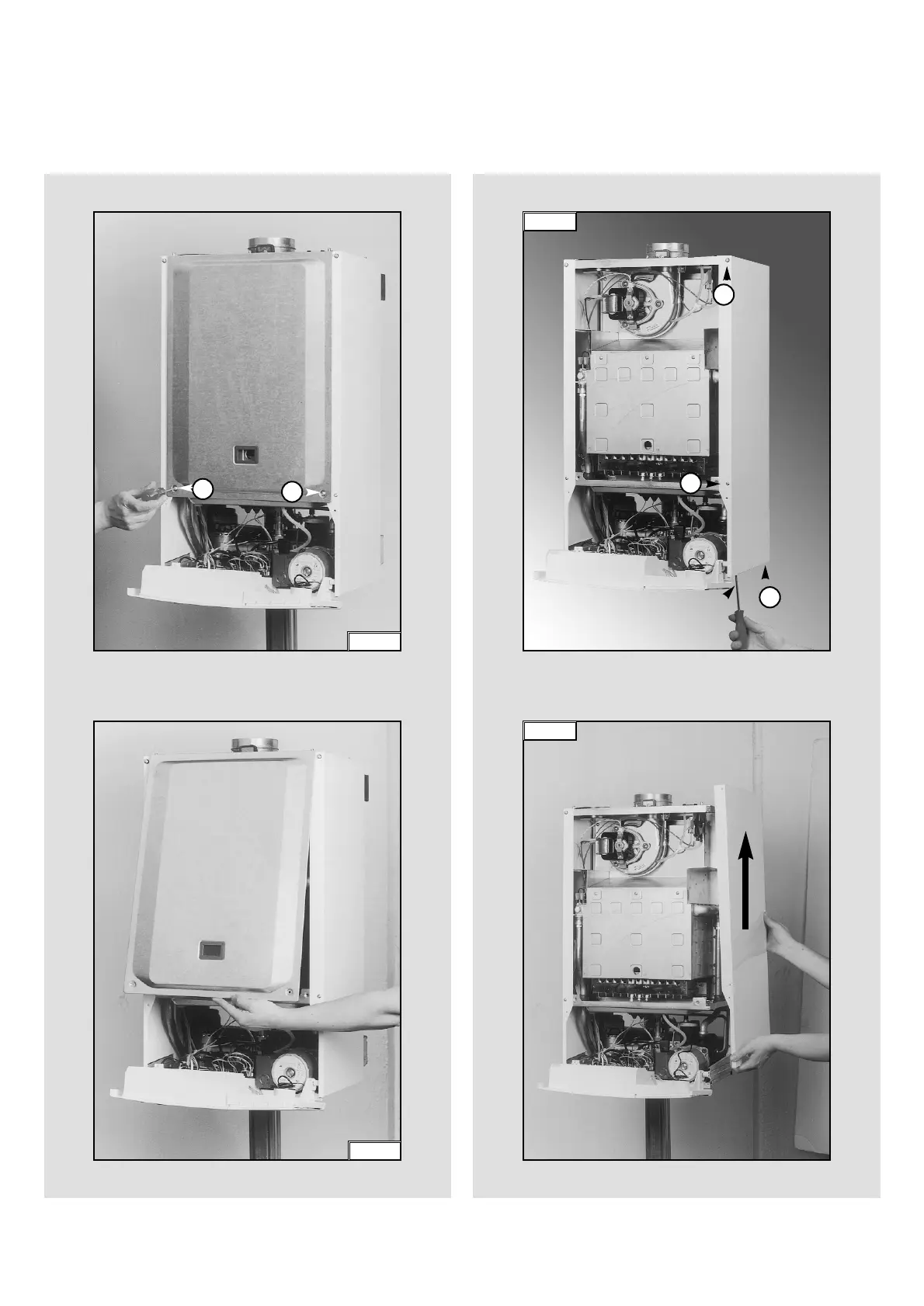

1. Remove the screws “C” (FIG. 1.6);
2. Lift the sealed chamber frontal cover from the locating pins
(FIG. 1.7).
FIG. 1.6
C
C
FIG. 1.7
Removing the side panels
1. Remove the four screws “D” for each side panel (FIG.1.8);
2. Pull the panel away from the boiler, then lift the panel up and
remove from the boiler (FIG.1.9).
D
D
D
FIG. 1.8
FIG. 1.9
