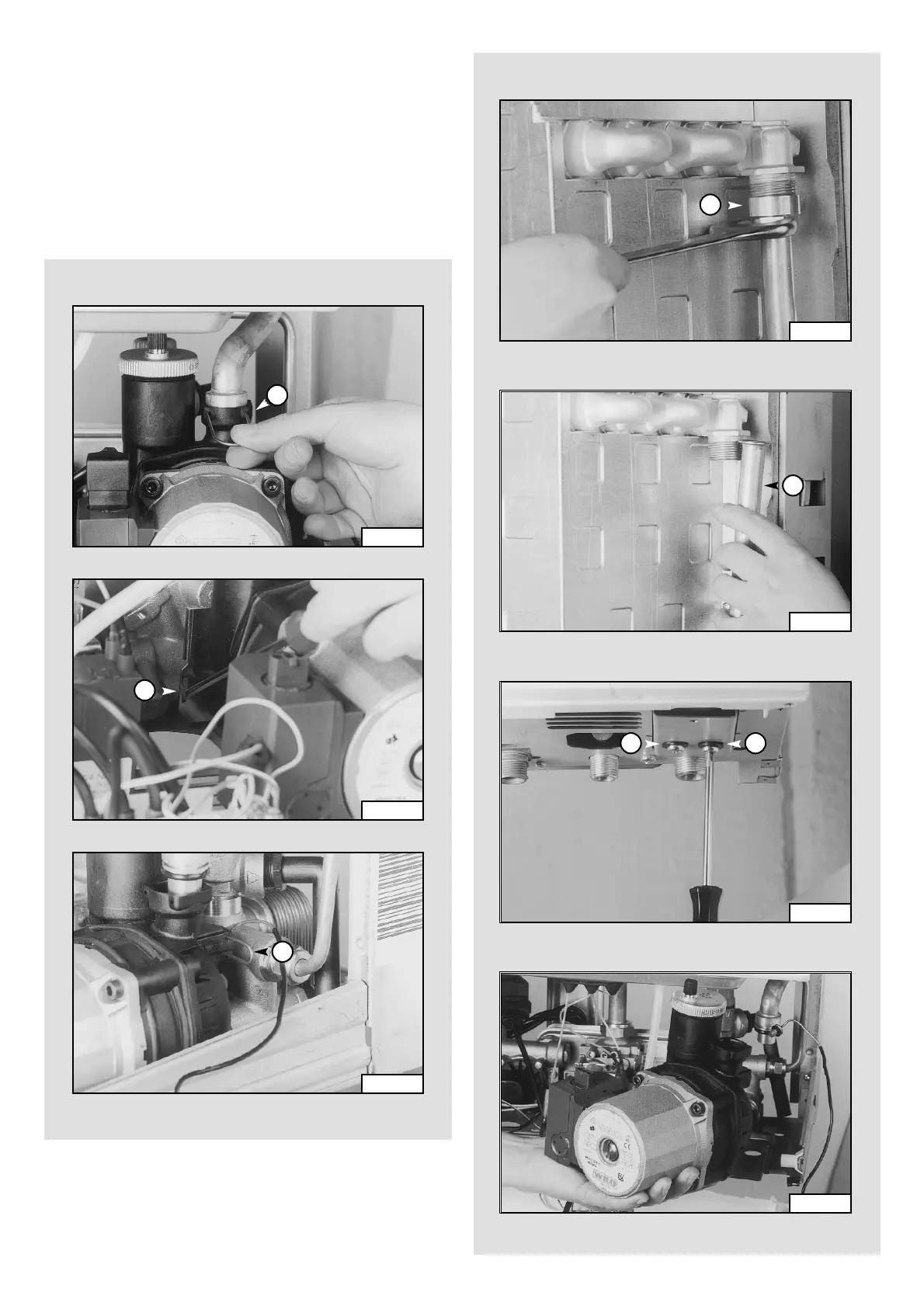

Removing the pump
1.
Remove the U-clip “ D1” (FIG. 1.41);
2. Remove the retaining clip “E1” (FIG. 1.42);
3. Remove the U-clip “ F1” (FIG. 1.43);
4. Release the nut “G1” (FIG. 1.44);
5. Remove the pipe “H1” (FIG. 1.45);
6. Remove the screws “I1” (FIG. 1.46);
7. Remove the pump (FIG. 1.47).
D1
FIG. 1.41
FIG. 1.42
FIG. 1.43
FIG. 1.44
E1
F1
FIG. 1.45
FIG. 1.46
FIG. 1.47
G1
H1
I1
I1
31.eps
33.eps
34.eps
42.eps
32.eps
35.eps
25.eps
