Ø 60/100 mm
The boiler should only be installed with a flue system supplied by MTS (GB) Limited.
These kits are supplied separately to the appliance in order to respond to different installation solutions. For more information
with regard to the inlet/outlet accessories consult the accessory catalogue. The boiler is supplied ready for connection to a
c
oncentric flue system.
N
O
TE
:SE
E PAGE
24 F
OR MAXIMUM AND MINIMUM FLUE RUNS
(TA
BLES
A, B A
ND
C)
Warning
The exhaust gas ducts must not be in contact with or close to inflammable
material and must not pass through building structures or walls made of
inflammable material.
When replacing an old appliance, the flue system must be changed.
Important
Ensure that the flue is not blocked.
Ensure that the flue is supported and
assembled in accordance with these
instructions.

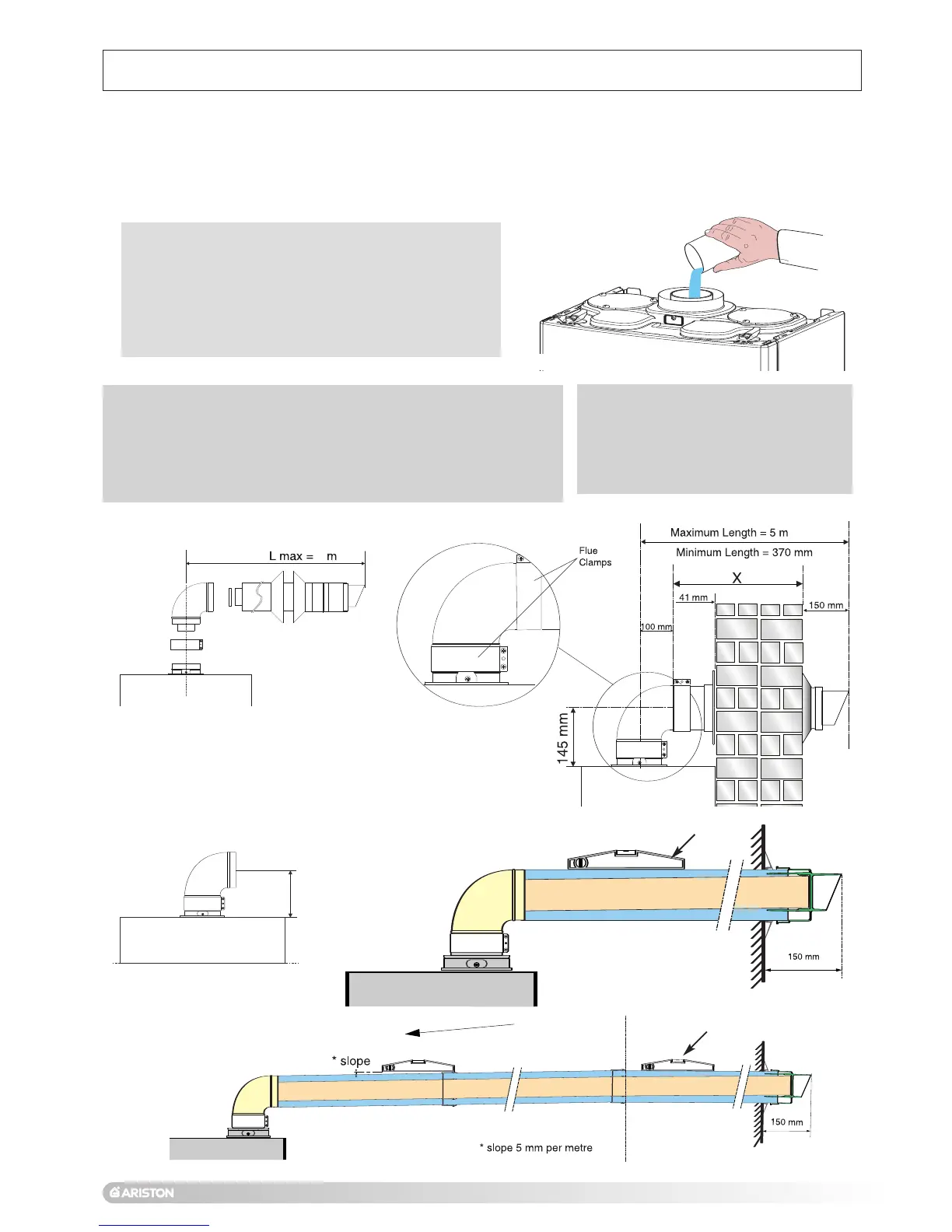

12. Connecting the Flue
Fig. 17
Installation without extension
Installation with extension
Fig. 18
Level
Level
IMPORTANT!!
BEFORE CONNECTING THE FLUE, ENSURE THAT 1
/4
LITRE OF
WATER HAS BEEN POURED INTO THE EXHAUST CONNECTION
TO FILL THE CONDENSATE TRAP (FIG. 16). SHOULD THE
T
RAP BE EMPTY THERE IS A TEMPORARY RISK OF FLUE
GASSES ESCAPING INTO THE ROOM
.
