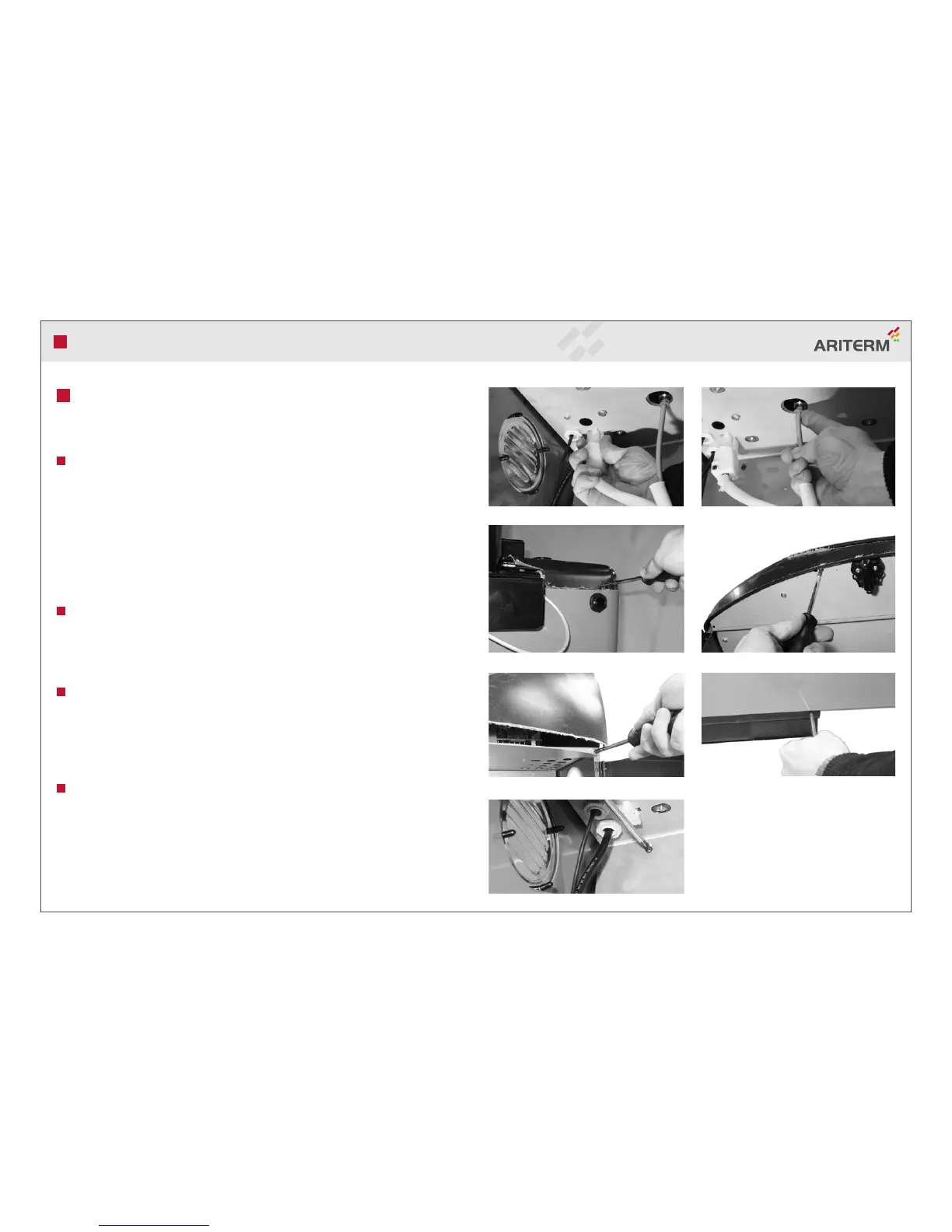

PELLET BOILER UNO
ARITERM SWEDEN AB Installation Instructions - 2008.05.21 - 5/28
Installation
The panel plates can be removed to avoid damage, e.g. when transporting the
boiler. Follow the steps described below after having removed the packing material.
1. Remove the burner
a) Open the front doors by pushing the upper edge and then pull them straight out.
b) Loosen the connecting socket on the left side of the burner.
c) Loosen the socket at the left side above the burner.
d) Loosen the silver coloured hose from the connection above the burner by
pushing the bottom edge of the connection nipple upwards and then pull the
hose downwards.
e) Pull the levers outwards and remove the door with the burner.
2. Remove the top plate
a) Four screws at the rear edge.
b) Two screws at the front/bottom edge; accessable behind the front doors.
c) Lift the top plate.
3. Loosen the side plates
a) Two screws; one on each side above the front door hinges
b) Two screws at the bottom edge of the side panels.
NOTE!
To remove the side panels, the front panel has to be removed as described below
4. Remove the front panel inside the front doors
a) Two screws at each upper corner.
b) The front panel is free to lift up a few millimeters so that the bottom notches
come out of the rails in the side panels.
c) Pull the bottom edge of the front panel forwards. Bend the panel to allow the
edges to pass the hinges.
d) The side panels can now be lifted off.
