Arjo Walker - Labels and Markings; Identification and Approval Labels; Hydraulic Data Labels; Electrical Data Labels

6

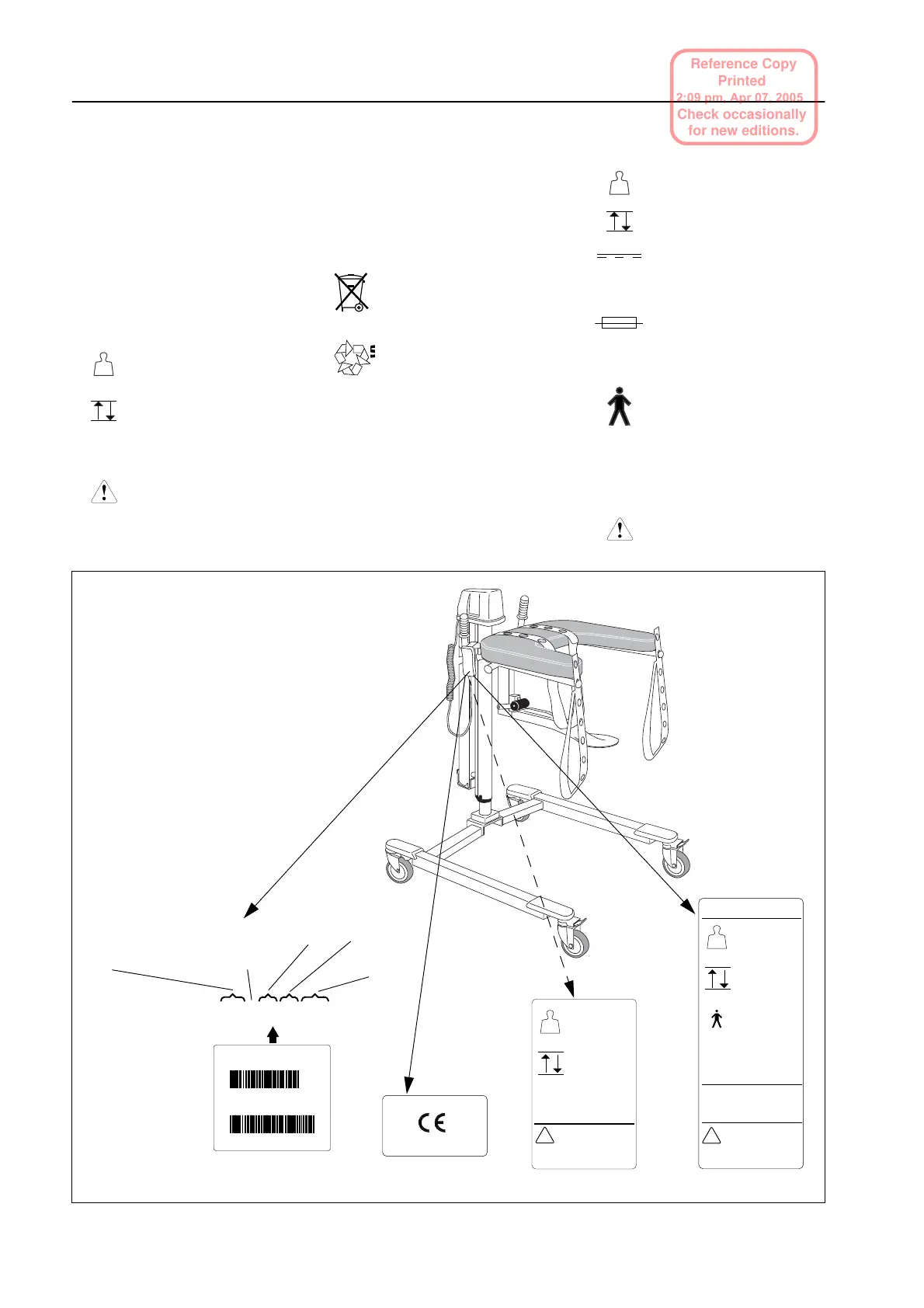

Identification label
The identification labels states the type of
equipment and Serial No (see figure).
Approval label
CE marking in accordance with the
Directive 93/42/EEC (The Medical
Devices Directive).
Hydraulic labeling
Data label
Maximum load
150 kg (330 lb)
Stroke 500 mm (19 5/8")
•
Total weight lift + resident
195 kg (430 lb)
Read the operation manual
before use.
L
a
b
e
l
s
Electrical labeling
The data labels, the identification label
and the approval label are located on the
pillar, behind the battery.
Battery label
The battery label is attached on the
backside of the battery.
Environmental danger. Not
for disposal.
Recycleable
P b
Po
s
Data label
Maximum load
150 kg (330 lb)
Stroke 565 mm (22 1/4")
Supply voltage 24V DC
•
Power maximum 150 VA
F1 F10AL 250V
•
Protection code IP44
(IEC 529)
Type B
Applied part: protection
against electrical shock in
accordance with IEC 601-1.
•
Total weight lift + resident
200 kg (440 lb)
• Product No. of the battery
Read the operation manual
before use.
Max total weight
200 kg (440 lb)
ACCESSORY BATTERY
No.NDA0100
24V 4 Ah
24V DC
Max 150 VA
IP X4
Max
Model GCB 41XX-031
150 kg
330 lb
565 mm
Read the operating
instructions before use
Merci de prendre connaissance
de la notice d’utilisation
Lesen Sie bitte die Bedienungs-
anleitung durch
!
Max total weight
195 kg (430 lb)
Max 150 kg
330 lb
500 mm
Read the operating
instructions before use
Merci de prendre connaissance
de la notice d’utilisation
Lesen Sie bitte die Bedienungs-
anleitung durch
!
Data label (Electrical)
Data label (Hydraulic)
8418243
Made by Arjo Eslöv,Sweden
CE Marking
Product no
Serial no
AR31211-EU
SEE0102001
Made by Arjo in Eslov, Sweden
010115
Example of identification
label
SEE0102001
Manufacturing
Year
Week
Serial
number
country
SE=Sweden
Manufacturing
works
E=Eslöv
