Page 11 of 18
Width x length x height (mm)

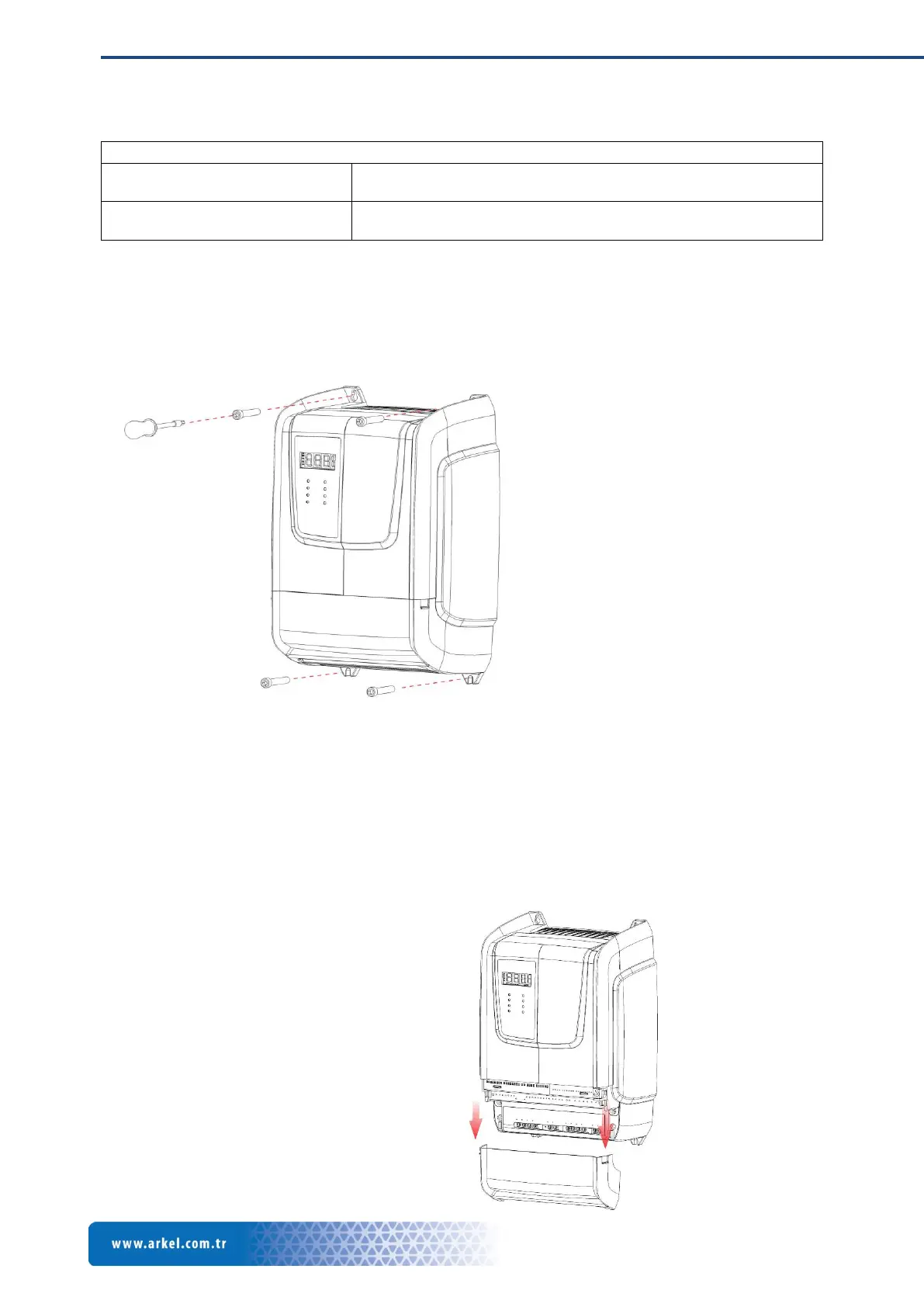

3.3 Installation Orientation and Spacing
Arcode should be installed vertical orientation on a robust surface that can carry Arcode with 4
screws and 4 nuts. Recommended screw/nut dimensions is metric 6 and recommended surface is
metal sheet.
Arcode complies and certificated with EN61000-XXX standards that regulate EMC for Europe.
However be aware that Arcode is sensitive device against too high electromagnetic environment and
also generates some electromagnetic fields in surrounding area. So high current cables and sensitive
signal cables like encoders cables should be installed in far distance as possible.
3.4 Optional Boards and SD Card Installation
To install optional boards following step should be followed.
