3.2 Mechanical Dimensions

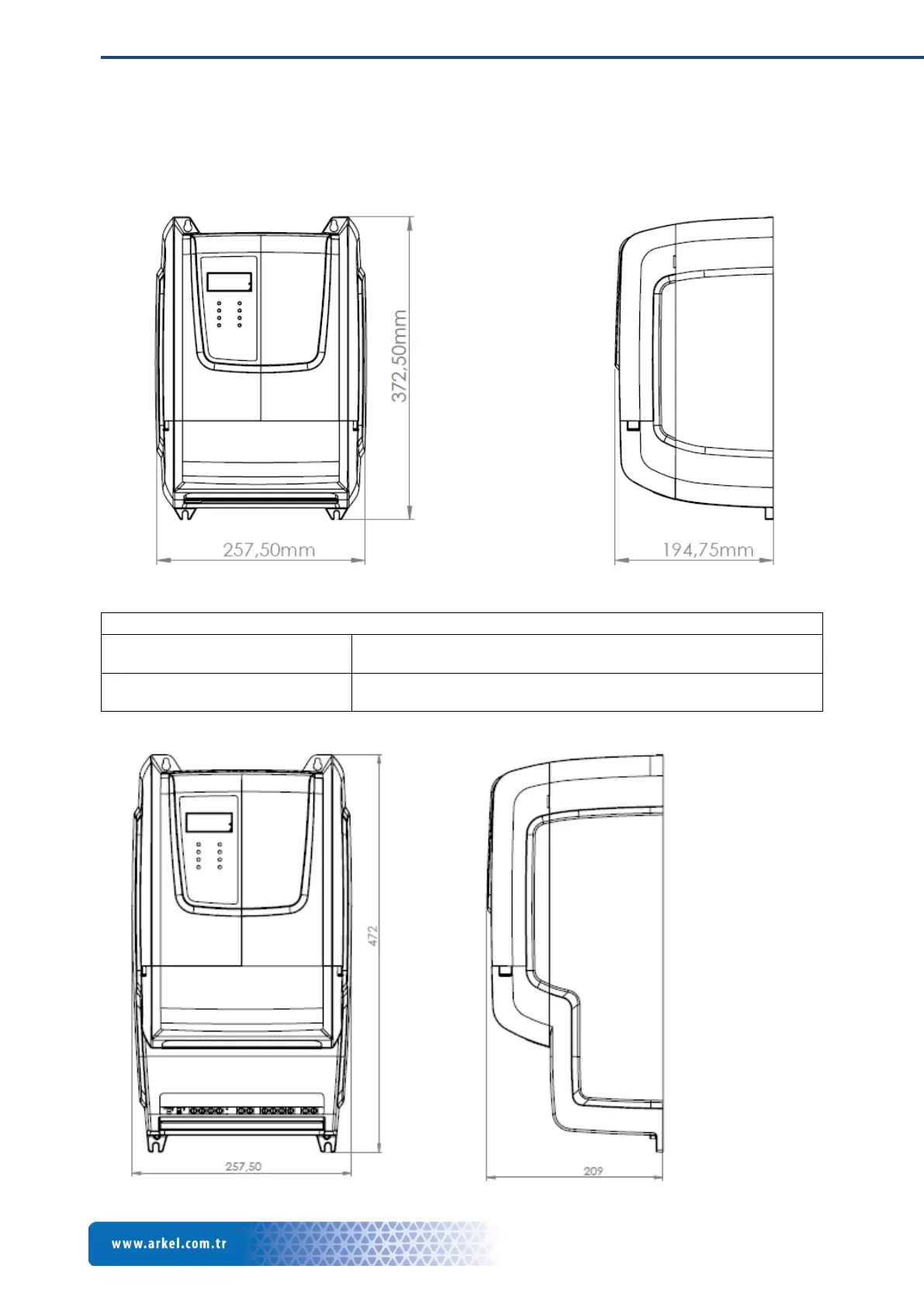

3.2.1 B size case dimensions
B size mechanics
Width x length x height (mm)
257,5x372,5x194.75
Weight
9.5Kg.
3.2.2 C size case dimensions
