507405-05Page 24 of 72 Issue 1621

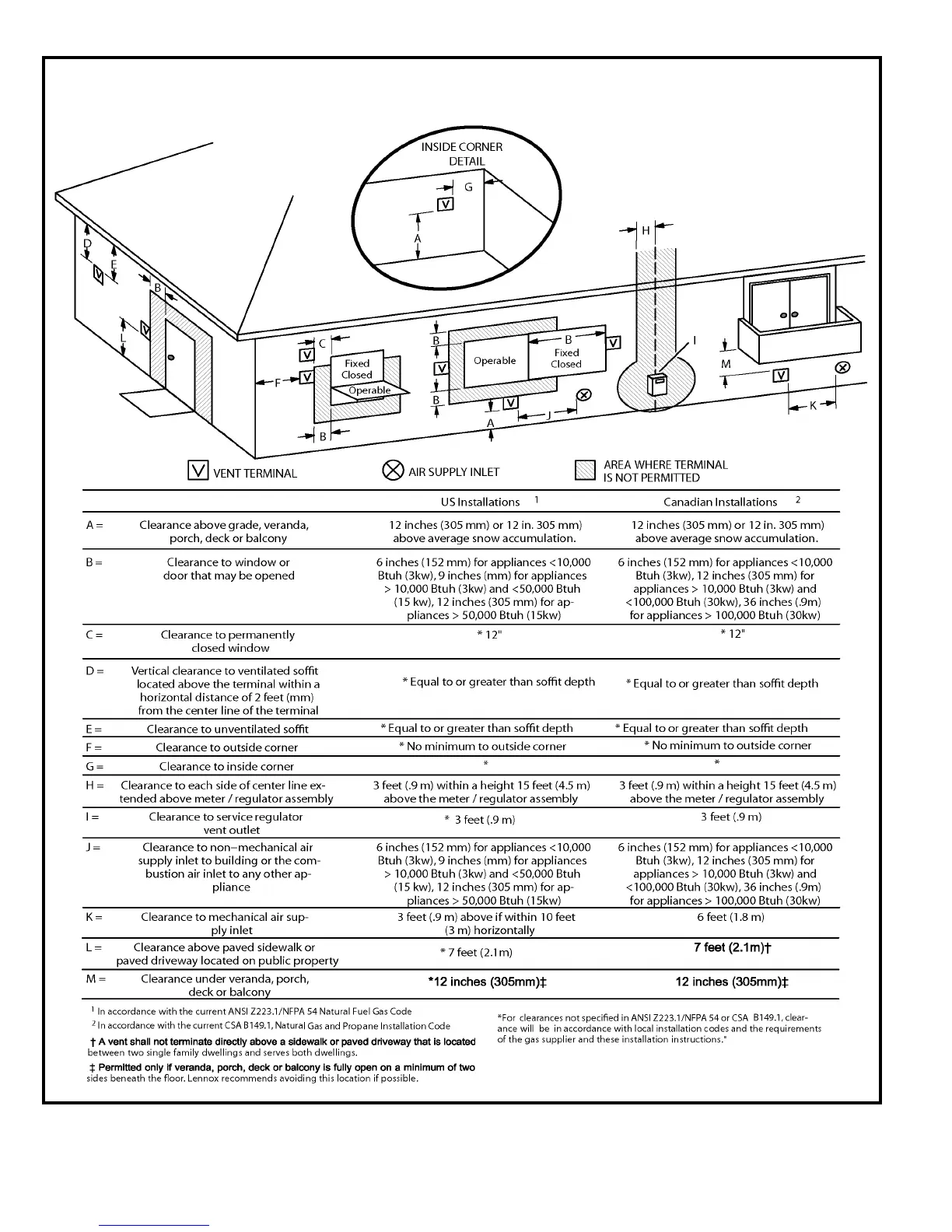

Figure 27
Vent Termination Clearances
For Direct Vent installations in the USA and Canada
