1.0 Digital Actuator - Model G1
Datasheet
G1 Actuator General Features
Emech G1 actuators offer all the benefits of intelligen
control. High performance Closed loop temperature control is
achieved when combined with Emech 3 and 2 port disc valves and
sensors. Control with butterfly and other quarter turn valves can be
significantly enhanced by the Emech actuato .
Multiple sensor connectivity options, and onboard software for stand
alone closed loop control are included as standard features. Emech
G1 actuators provide compact configurable high-speed actuation
solutions for 0° and 350° applications, and torques up to 885 in.lb
continuous.
Two sizes:
G12 model 310 in.lb torque: 24vDC 3.5 Amp
G13 model 885 in.lb torque: 24vDC 5 Amp
Electronic Features
• Analog (4-20mA input and output ports)
• Electrical stepper motor control
• Speed, position, and acceleration control
• User defined ‘2-speed stroke can eliminate water hammer
• Precise positioning achieving 0.03° valve seat placement
• Local closed loop control of temperature
• External RS232 connection (cable supplied) communication for
• special mode configuration
• Local/remote control options
• Two operating modes: Stand alone control via onboard keypad
or Remote control via external 4-20mA
• Failsafe position feedback (non-contact absolute encoder)
• Keypad: 4 membrane switches with ‘dual touch’ safety features
• Display: 3.5 digit LCD display with back light
• Push button power switch providing soft start electronic control
Mechanical Features
• 90° stroke time as low as 1.5 seconds
• High speed 1.3 second quarter-turn response
• Roller bearing shaft support
• Gearbox: planetary, lifetime lubrication, low backlash
• Graduated visual indicator
• Epoxy powder coated aluminum enclosure
• Enclosure designed to Nema 4
• Manual over-ride with electrical safety interlock
• Stainless steel fasteners
• 100% Duty Cycle rated for continuous control
• Lockable display & keypad cover
• Magnetic latch on keypad cover
• Electronic stroke setting (up to 350° rotation)
Applications
• Emech F3 temperature control valves
• Emech F2 and other 1/4 turn control valves
• Heat exchanger control
• High speed electronic actuation
• Dairy: Pasteurizing
• Tanning: Pelt washing - temperature control
• Brewery: Mash water temperature control
• Meatworks: Hand wash/sterilization/washdown/tripewash
• Vessel Temperature Control
• CIP Skids
• Food, Beverage, Bakeries and General Industrial Process
Control Applications

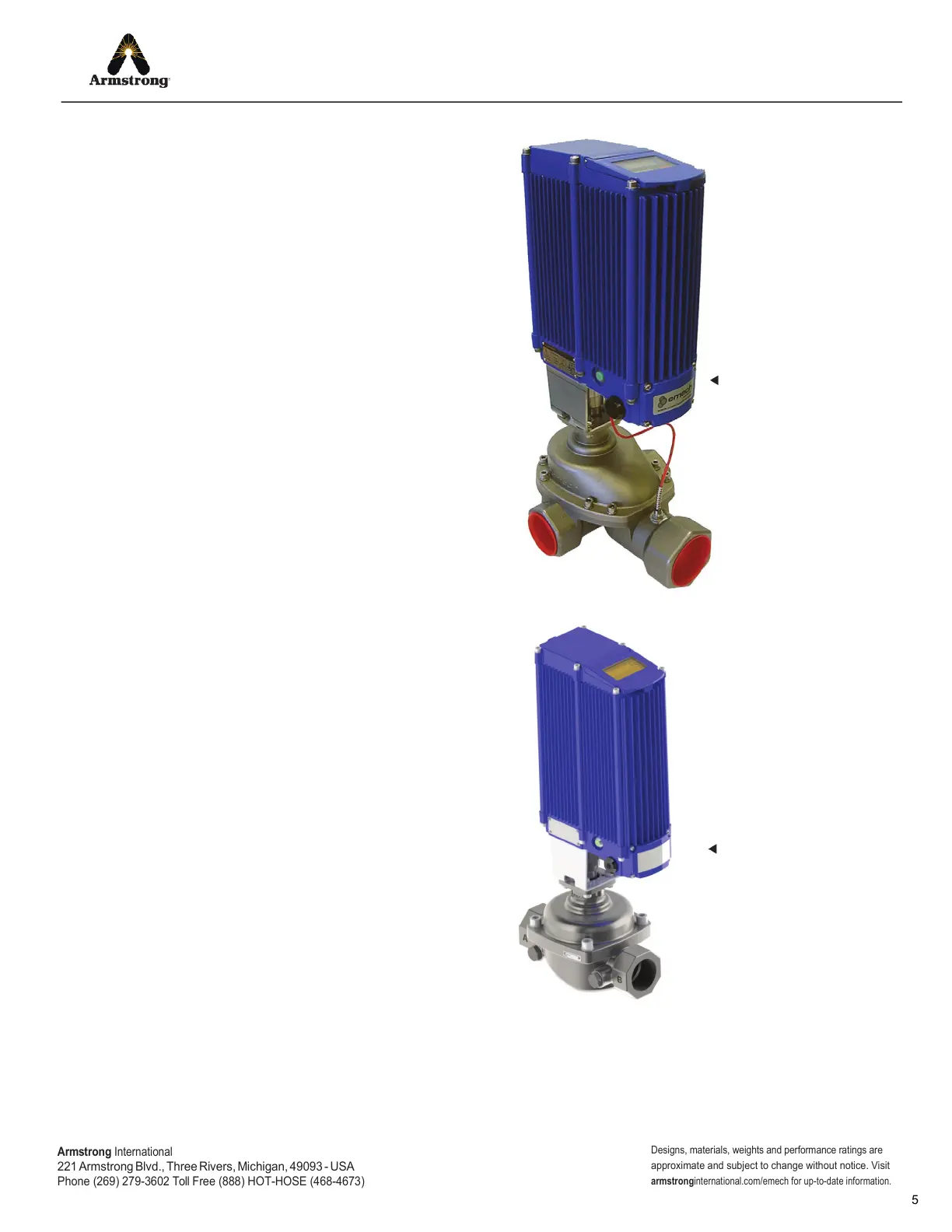

Emech temperature
control solution
F3 mixing valve and G1
actuator with integrated
temperature sensor
Model Code: ExxW series
G1 Electronic actuator
mounted on a 2-port valve
Model Code: ExxF series
Armstrong
International
221
Armstrong Blvd., Three Rivers, Michigan, 49093 - USA
Phone (269) 279-3602 Toll Free (888) HOT-HOSE (468-4673)
Designs, materials, weights and performance ratings are
approximate and subject to change without notice. Visit
armstrong
international.com/emech for up-to-date information.
