Armstrong Emech G12 User Manual

20
Parts and Materials
#
1
2
3
4
5
6
7
8
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25

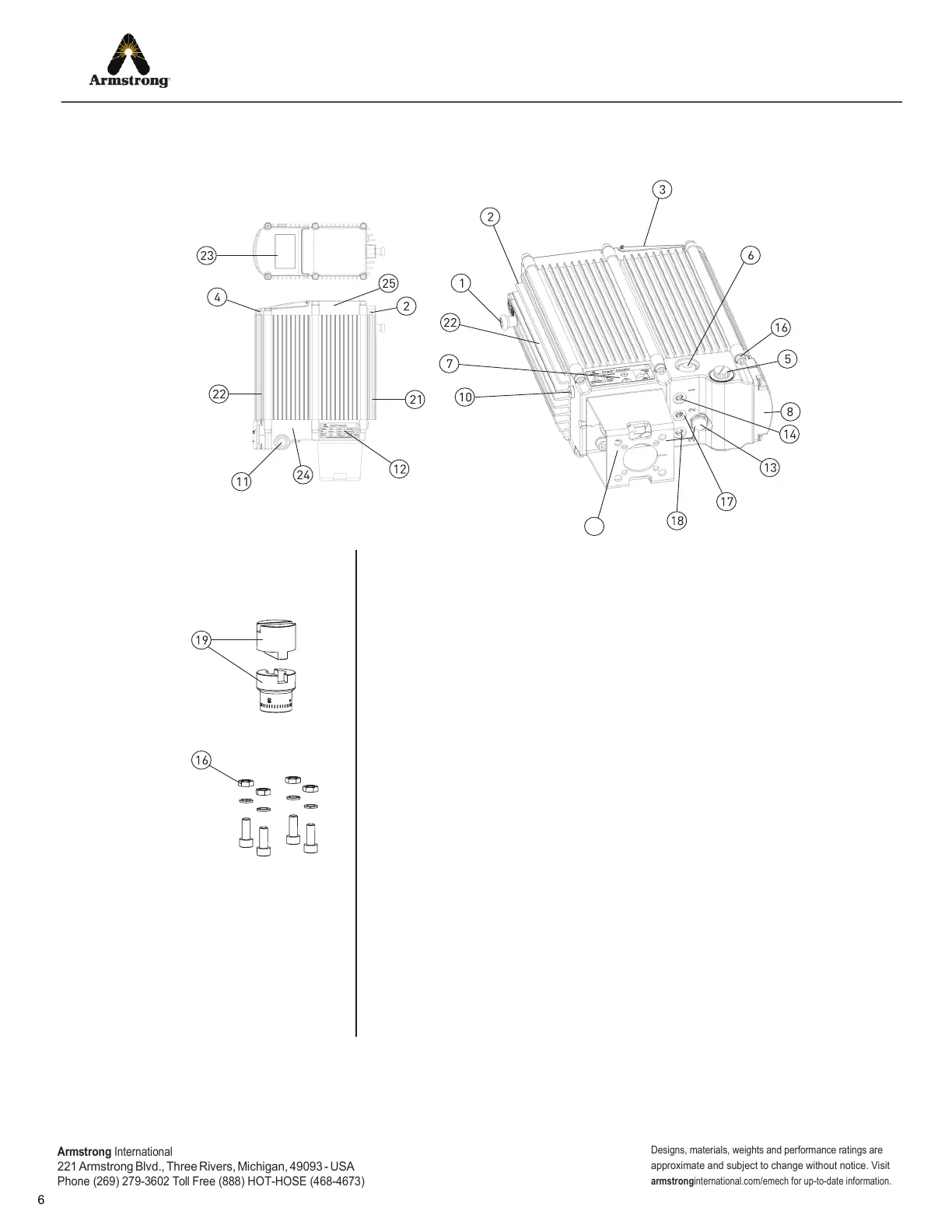

G12 and G13 details
Manual override lever
Padlock holes for manual override
Keypad lid (in closed position)
Padlock holes for keypd lid
Cable entry
(o-ring sealed 1/” NPT plug, LHS)
Push button power switch
Warning label
Terminal cover, sealed, wiring access
Sealed plug
(for factory encoder adjustment)
Cable entry (o-ring sealed 1/2” NPT plug, RHS)
Name plate
Pressure relief vent
Port-1, temperature sensor input
Fixings and spring washers
Port-2, Auxiliary port
Port-3, Serial port
Coupling 2 piece slotted
Mounting bracket
(Fits ISO5211 F05 & F07 size)
Drive enclosure (extrusion)
Electronics enclosure (extrusion)
Keypad cover window
Body base
Body top
Construction materials
316 SS / acetal
N/A
Powder coated aluminum
N/A
Glass filled nylo
Plastic with silicone cover
316 stainless steel
Powder coated aluminum
Nickel plated brass
Glass filled nylo
316 stainless steel
Polyamide 6
Nickel plated brass
Stainless steel
Nickel plated brass
Nickel plated brass
316 stainless steel
316 stainless steel
Powder coated aluminum
Powder coated aluminum
Polycarbonate
Powder coated aluminum
Powder coated aluminum
Standard mounting kits
(must be ordered separately)
NOTE: Standard mounting kits are included with all mixing systems. The two couplings (Item 19) and fixings and
spring washers (Item 16) are not included when ordering an Actuator only. They must be ordered separately.
