Armstrong International
221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA
Ph. (269) 279-3602 Toll Free (888) 468-4673 Fax (269) 279-3130

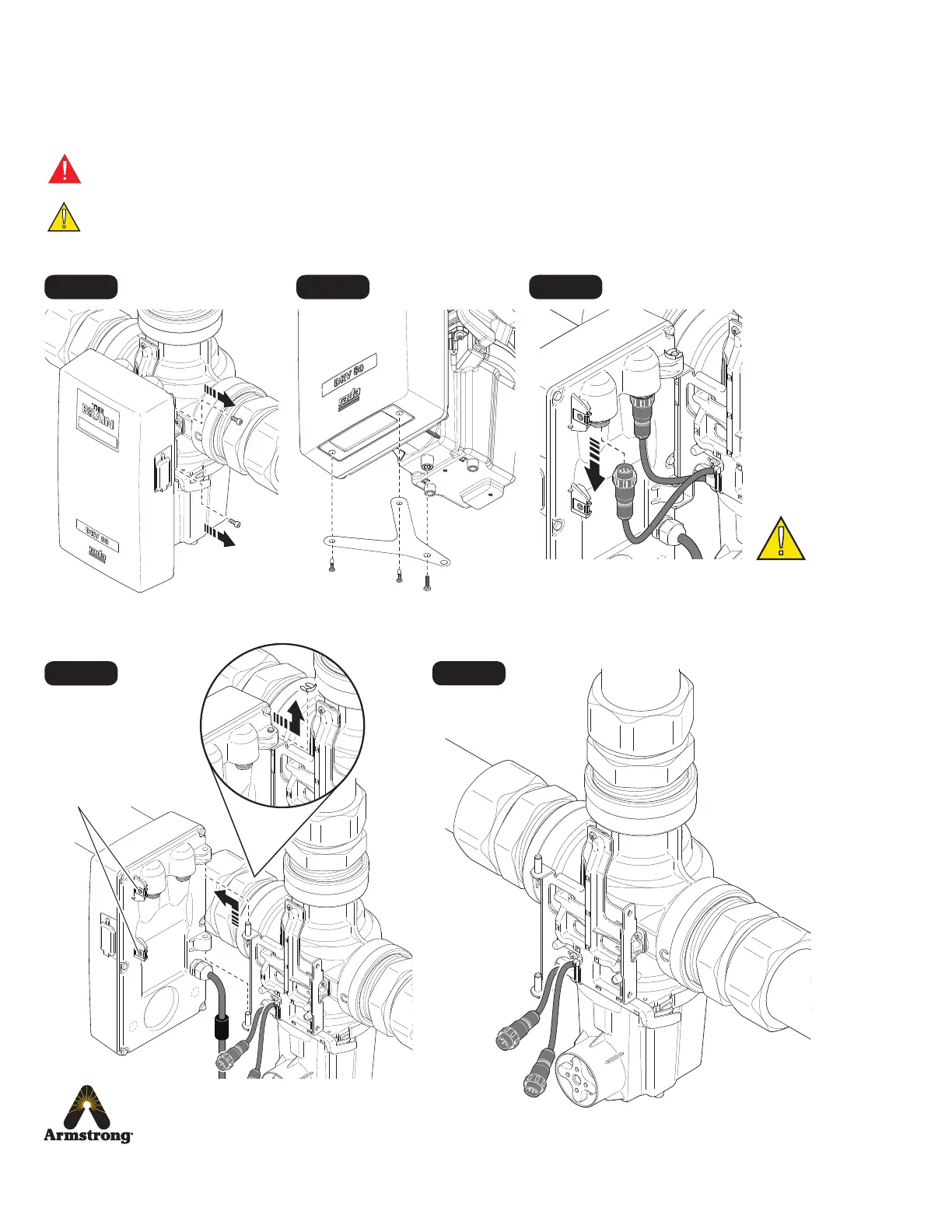

DRV80 Disassembly
Warning!
Before disassembly observe the following:
• Isolate the electrical supply to the DRV80.
• Isolate the water supplies to the DRV80.
• Allow the hot water inlet to cool suciently to reduce the risk of injury through contact with the hot pipe
or DRV.
4mm HEX
Step 1
Step 4
Step 5
Step 3Step 2
Failure to disconnect the incoming power
supply before removing the plugs may result
in product damage. Any damage caused
in this way is not covered by the Limited
Warranty. (See back page for full details.)
Note! Retain
Clips if
replacing
electronics
module
To Next Page
