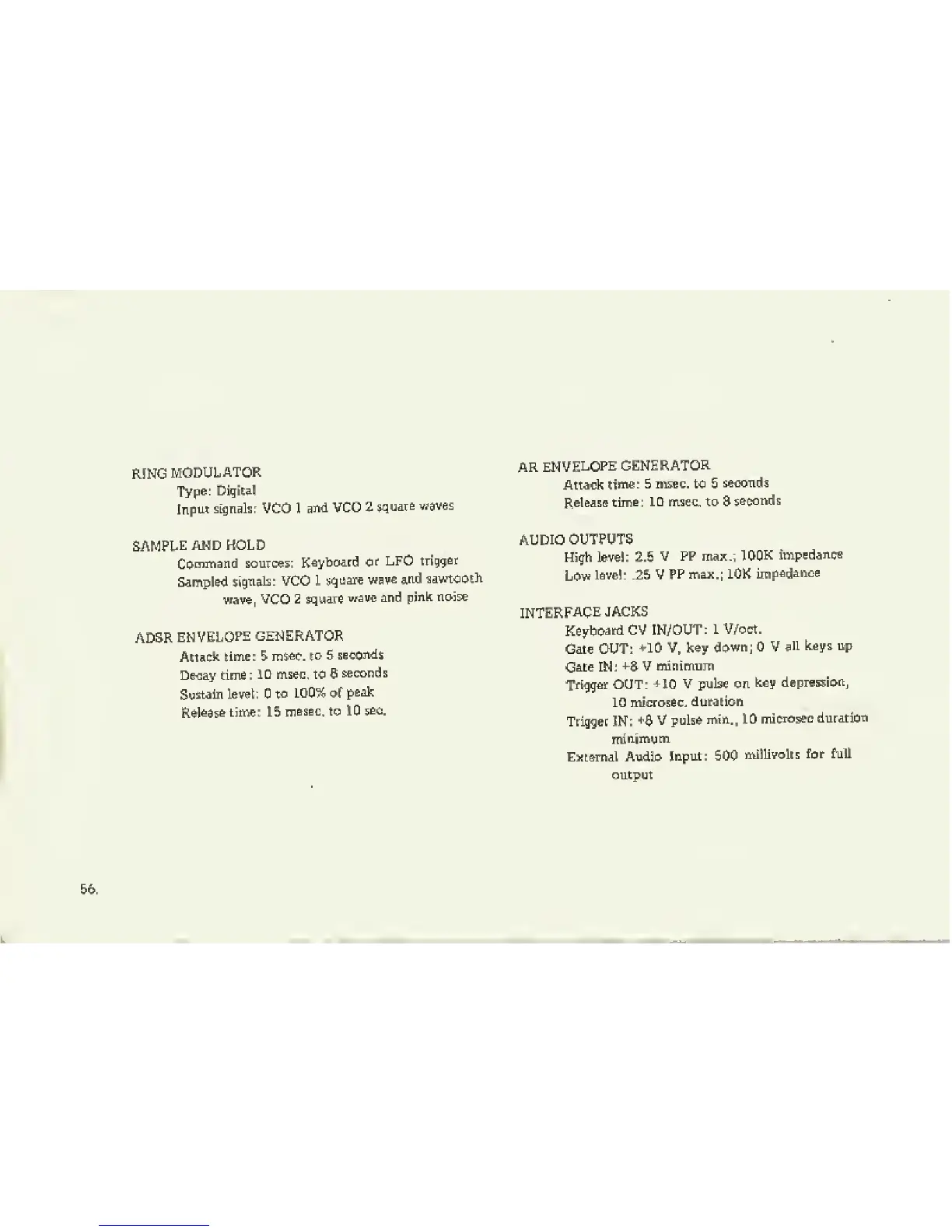

ARP ODYSSEY - Audio Outputs

RING
MODULATOR
Type:
DigiEa!
Input
signals; VCO 1
and VCO
2
square
v^aves
SAMPLE
AMD HOLD
Cammand sources:
Keyboard
Of
LFO
trigger
Sampled
signals: VCO
1
square
wave
and
sawto&ih
wave,
VCO
2 square
wave and
pink noise
ADSR
ENVELOPE
GENERATOR
Attack
time: 5
m&ec. to 5
seconds
Decay time:
10 msec, to fl
seconds
Systain level;
to
It^QX
otpeat
Release Linw: 15
mesec, to 10
sec.
AR
ENVELOPE
GENERATOR
Attack
timei 5 msec, to 5
seconds
Release
time
; 10 msec, to S
seconds
AUDIO
OUTPUTS
High level;
2.5
V PP max.;
lOOK
impedance
Low
level: .25 V
PP max,; lOK
nnpedanee
INTERFACE
JACKS
Keyboard CV IN/OUT:
1
V/oct.
Gate OUT;
HO V, key
down;
V
aU
keys up
Gate IN:
-i-S V minimum
Trigger OUT:
+L0 V pulse on
key
depression,
10 microsec.
ducation
Trigger IN:
+fl V
pulse
min., 10
microsec
duration
mdnimym
External Audio
Input:
500
millivolts
for full
Output
