Rear Panel
The rear of the Telephony Modem has the following connectors and controls:

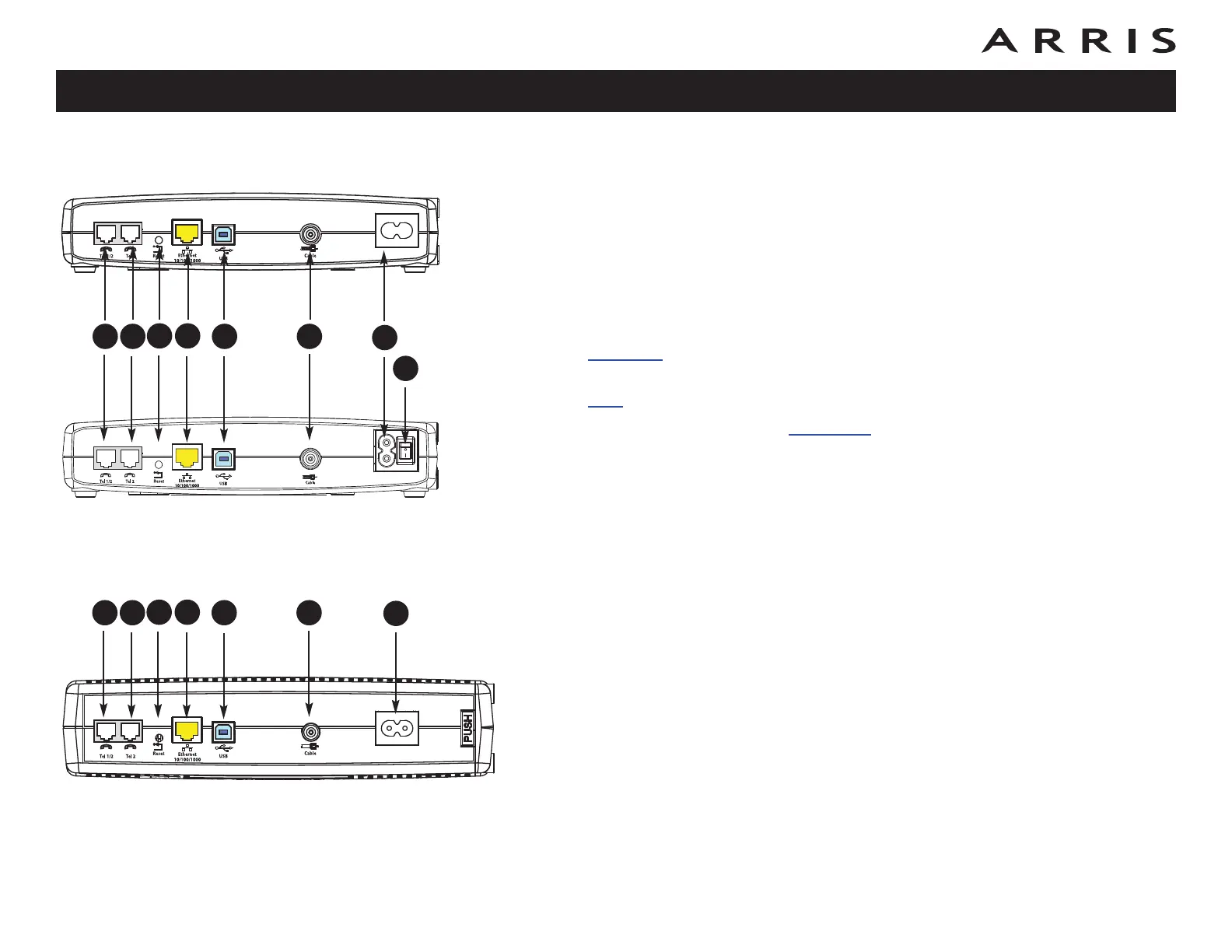

TM722A/B/S Rear Panel
A Tel 1 (grey): connector for the first phone line.
B Tel 2 (grey): connector for the second phone line.
C Reset button: resets the Telephony Modem as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
D Ethernet
connector (yellow): for use with a computer or home network LAN
connection.
E USB
connector (blue, if equipped): for use with a computer USB connection.
F Cable: connector for the coax cable.
G Power: connector for the power cord.
H Power Switch (TM722S only): power On/Off switch.
TM722G Rear Panel
A Tel 1/2 (grey): connector for the first phone line (or both lines of a 2-line
phone).
B Tel 2 (grey): connector for the second phone line.
C Reset button: resets the Telephony Modem as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
D Ethernet connector (yellow): for use with a computer or home network LAN
connection.
E USB connector (blue, if equipped): for use with a computer USB connection.
F Cable: connector for the coax cable.
G Power: connector for the power cord.
