INSTALLATION & USER MANUAL ENERGY EFFICIENT WOODSTOVE | PHOENIX
8 | Page
Internal diameter must be equal to the diameter of the chimney.
Exhaust diameter be at least twice the inside diameter of the chimney.
It should be constructed in such a way as to avoid the entrance of rain, snow and any foreign body in the chimney.
It can be checked, maintained and cleaned easily.
5.4.4. Flue pipe on the top or rear of the stove
ARTE ® PHOENIX woodstove is designed so the fumes outlet can be reversed from top to rear and vice versa. The stove is produced by
default with top outlet but, during installation, it can be altered as follows:

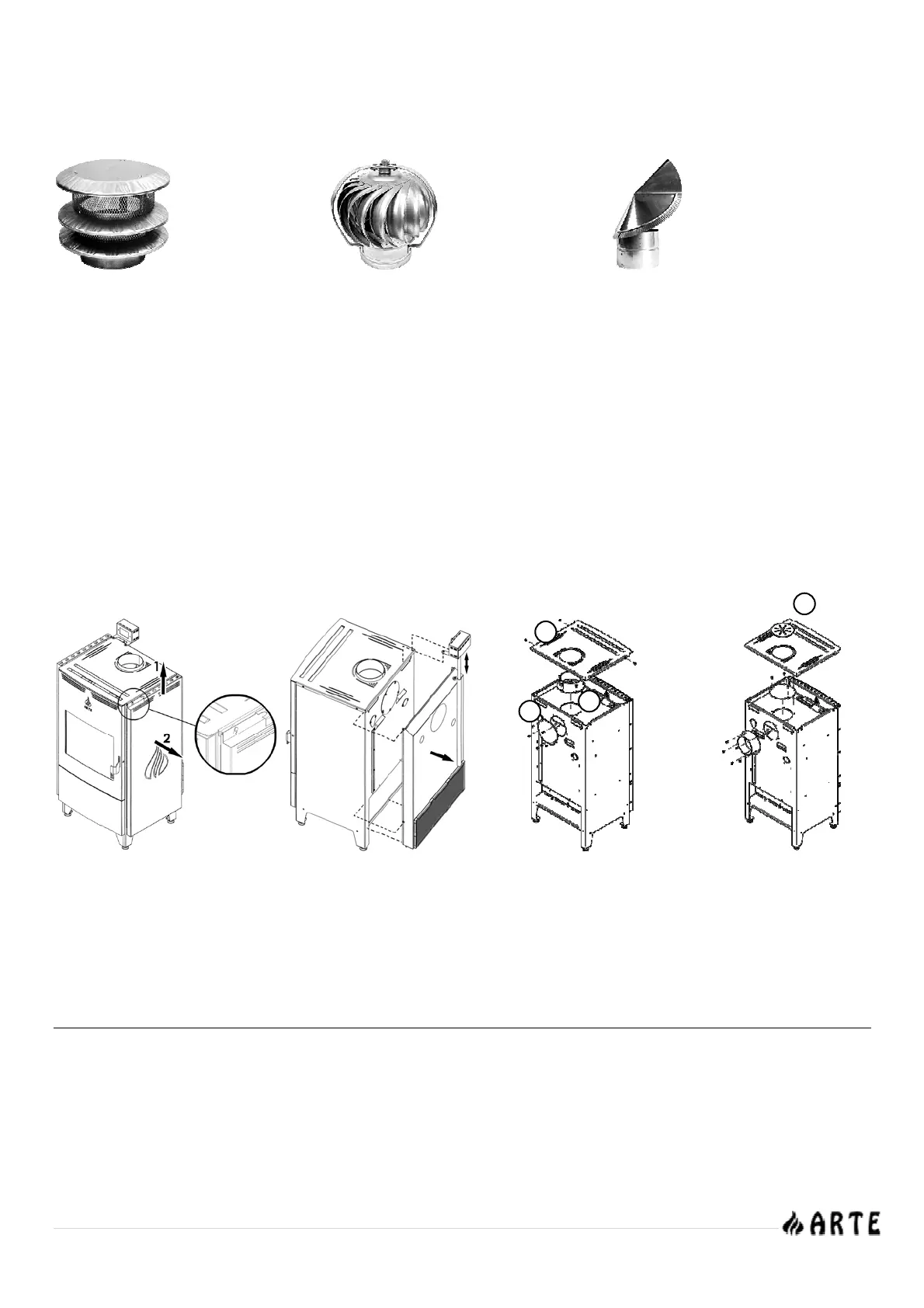

Remove the sides of the stove (Pic. 5.4.4.1).
Remove, if applicable, the back cover (Pic. 5.4.4.2).
Remove the top cup (Pic. 5.4.4.3-A).
Remove the closing cap by unscrewing the 5 security screws (Pic. 5.4.4.3-B).
Remove the flange with the top smoke outlet pipe, which is 150mm in diameter, by unscrewing the respective security screws and pulling it
upwards (Pic. 5.4.4.3-C).
Reassemble by inverting the smoke outlet flange and cap with respect to their original positions and secure them with the screws removed
previously. Before closing the unused smoke outlet hole, check the correct position of the cap’s fiber seal to avoid the possibility of smoke
coming through over time (Pic. 5.4.4.4).
Reassemble the back cover (if applicable), the two side panels and the top cover.
Place the decorative metal cap in the opening on top (Pic. 5.4.4.4-D).
Pic. 5.4.4.1 Pic. 5.4.4.2 Pic. 5.4.4.3 Pic. 5.4.4.4
5.4.5. Malfunction - Secure woodstove shutdown
In rare occasions even a test fire may not cause sufficient draft in the flue. In this case contact your chimney sweep.
Under no circumstances should you try to light a larger fire. If smoke escapes from the woodstove, ventilate the room immediately and
contact your chimney sweep. DON’T LIGHT THE WOODSTOVE!
6. OPERATING INSTRUCTIONS
6.1. Before initial use of an ARTE® PHOENIX woodstove
One of our qualified dealers has already given you instructions on how to operate the ARTE® PHOENIX woodstove you just bought.
In the guidelines below there are detailed instructions on the steps to follow so you do not encounter any issues during the operation of the
woodstove.
The qualified dealer in your area is at your disposal to answer any of your questions. The ARTE® PHOENIX woodstove is equipped with the
following control systems:
Industrial style cap with
protective net
Cap with deflector. It leans
according to the wind and it
provides very good smoke
dissipation
Cap with fan. It provides
very good smoke
dissipation even in case
of weak winds
