Artesyn ATCA-7480 - Table 3-3 Signal Segment Pinout; Table 3-4 Power Segment Pinout; Figure 3-6 MO297 SSD Module Carrier Connector Pinout

Controls, Indicators, and Connectors
ATCA-7480 Installation and Use (6806800T17A)
72
The pinout of this connector is illustrated in the following figure.

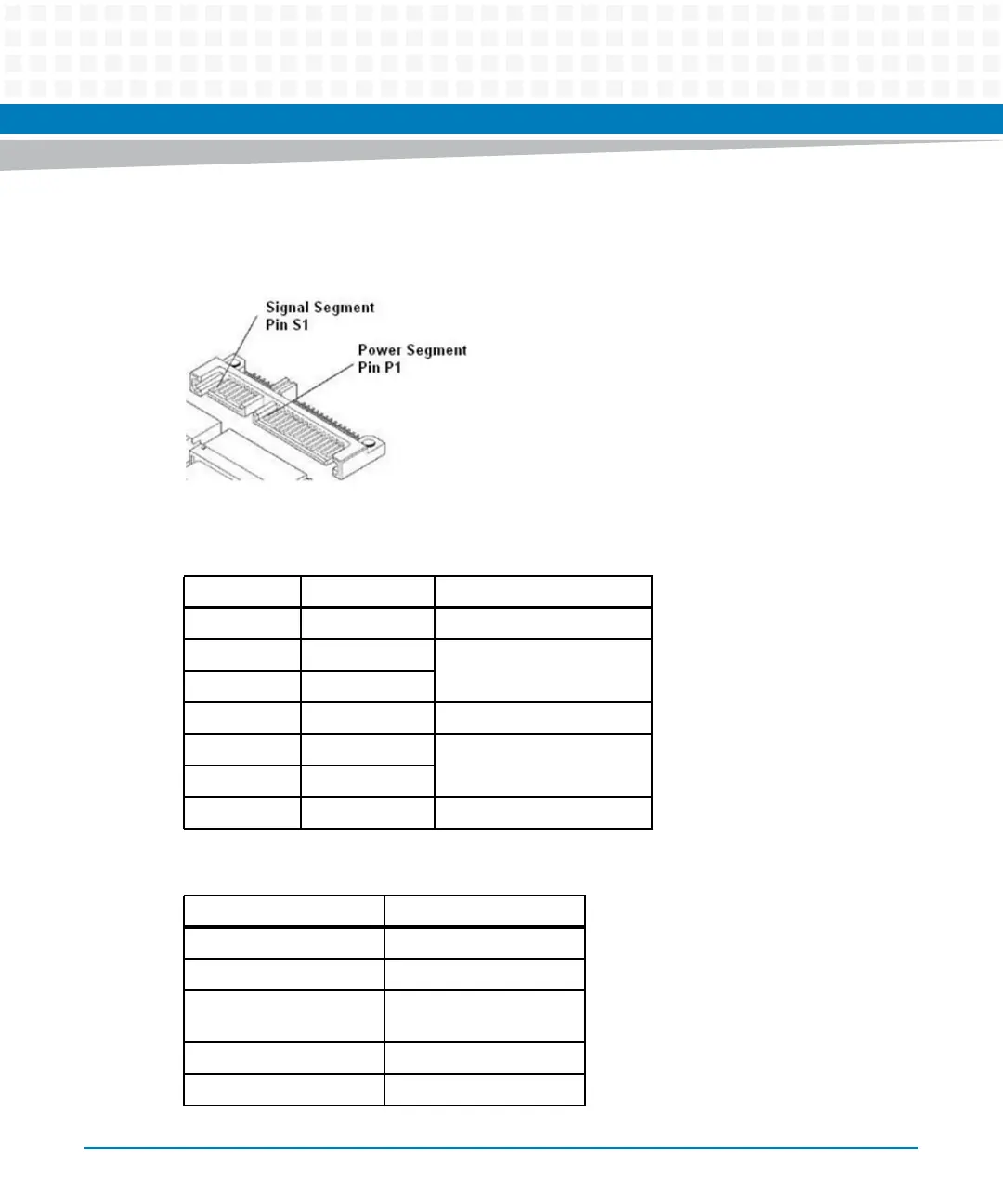

Figure 3-6 MO297 SSD Module Carrier Connector Pinout
Table 3-3 Signal Segment Pinout
Pin Number Function Description
S1 GND 2
nd
mate
S2 A+ Differential singal Pair A
S3 A-
S4 GND 2
nd
mate
S5 B- Differential signal Pair B
S6 B+
S7 GND 2
nd
mate
Table 3-4 Power Segment Pinout
Pin Number Function
P1 Not used (3.3V)
P2 Not used (3.3V)
P3 Not used (3.3V Pre-
Charge)
P4 GND
P5 GND
