Aruba 630 Series Campus Access Points | Installation Guide 3

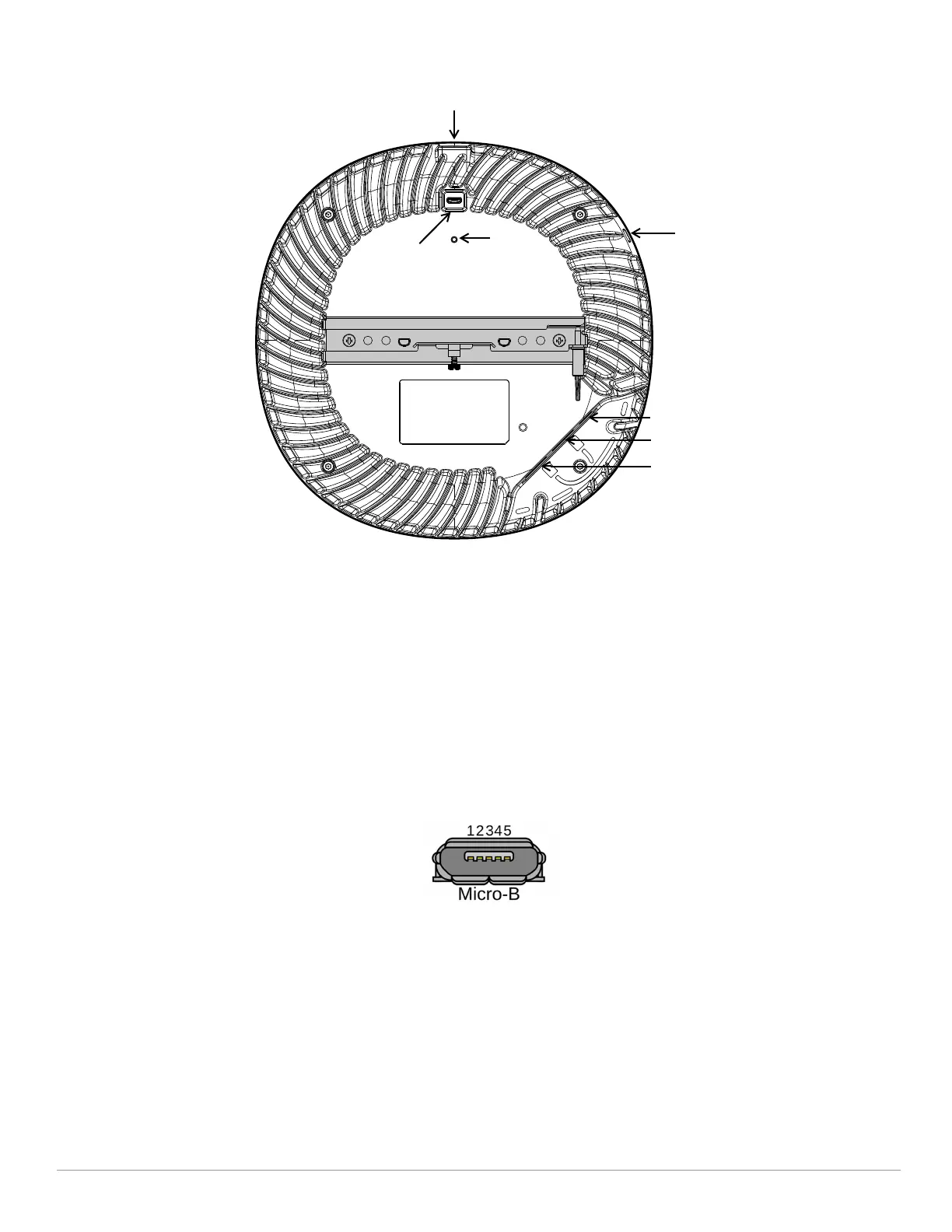

Figure 2 AP-635 Rear View
Bluetooth 5.0 Low Energy and 802.15.4 Radio
The 630 Series is equipped with an integrated BLE 5.0 and 802.15.4 radio that provides the following capabilities:
location beacon applications
wireless console access
IOT gateway applications
Console Port
The console port is a Micro-B connector located on the back of the 630 Series. Use the proprietary AP-CBL-SERU
cable or AP-MOD-SERU module (sold separately) for direct local management of the 630 Series when connected
to a serial terminal or laptop. For pin-out details, refer to Figure 3.
Figure 3 Micro-B Port Pin-out
Ethernet Ports
The 630 Series is equipped with two 100/1000/2500Base-T auto-sensing MDI/MDX wired RJ45 Ethernet ports (E0
and E1). The 2.5bps speed complies with NBase-T and 802.3bz specifications. Both ports are compliant with
802.3ab 1000Base-T Gigabit Ethernet and 802.3az (Energy Efficient Ethernet) standards. Both ports support
802.3af, 802.3at and 802.3bt Power over Ethernet compliance to accept power from a POE source, such as a PoE
midspan injector, or a network switch.
Kensington Lock Slot
The 630 Series is equipped with a Kensington lock slot for additional physical security.
Kensington Lock Slot
Console
Reset
USB 2.0 Interface
E0
E1
DC Jack
1: N/C
2: RXD
3: TXD
4: GND
5: GND
