5.6 Up2Stream DSP Audio Effects Tool (Sell Separately)
Connect the Up2Stream device to your PC with USB cable (make sure it’s a data cable including the signal wires). And open the program Up2Stream
DSP Tool (only support Windows.), and you can tune audio effects conveniently, including Music Noise Suppressor, Virtual Bass, Stereo Widener,
Exciter, 10 bands EQ, etc. After editing the audio effects, you can save the changes to the device so the tuned effects will remain. You can get more
information from our website www.arylic.comor from the Up2Stream DSP Tool manual.

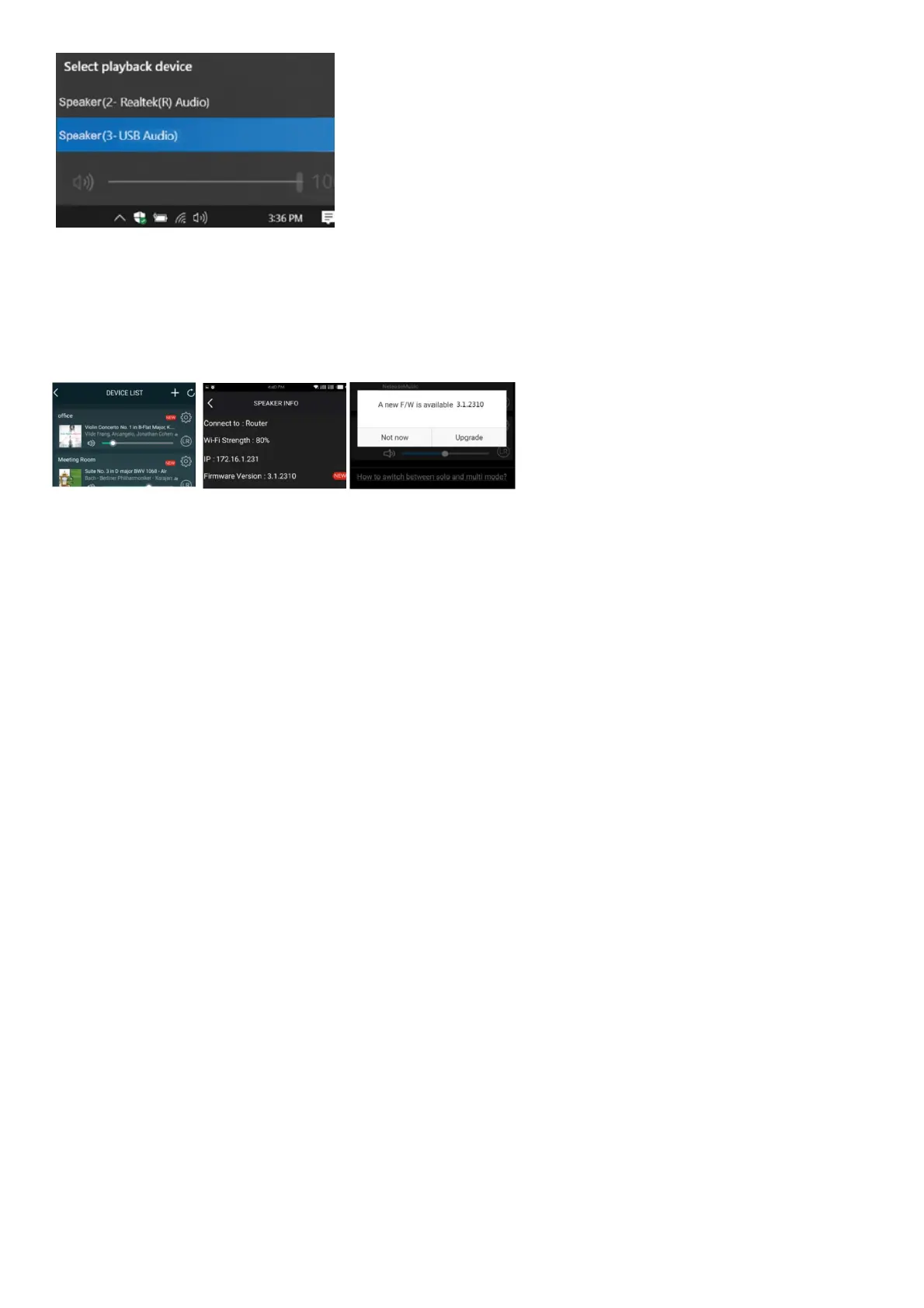

5.7 Firmware update
The application will notify you in-app when there is a new firmware version available. It’s recommended to update the firmware whenever available as
this might not only correct bugs or improve security, but also can add new features or services.
Specification
Connectivity
Wireless network IEEE802.11 b/g/n 2.4G
Ethernet Single 10/100M RJ45
Bluetooth 5.0, SBS/AAC
USB Host Play USB music
Bluetooth Distance 10M
Power Input DC 12V – 26V
Audio Input Analog 3.5mm/4pin connector/Micro USB
Audio output
Analog Speaker out
(PIN SPACE-5.0mm)
Frequency response 20Hz to 20kHz
Speaker Power
2×50-W into a 4-0 BTL Load at 21 V
2×30-W into a 8-0 BTL Load at 24 V
2×15-W into a 8-0 BTL Load at 15 V
THD+N 0.03%, ©1 kHz 50W+50W 24V-40
Speaker Impedance 4-8ohms
Music Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Decoding Up to 24bit/192kHz
Protocols AirPlay, DLNA, UPnP, Spotify Connect, Qplay
Dimensions 110*80*22m
IR Remote Controller Optional
Scan the QR codes below for more
