5170 Quad-Ethernet Module Introduction 1-1
Introduction
The ASCO Catalog 5170 Quad-Ethernet Module (QEM) is a stand-alone Ethernet switch and data concentrator.
It allows users to communicate with the new family of devices made by ASCO Power Technologies over a local area
network (LAN) or over a secure Internet connection. If the 5170 QEM is provided on an ASCO 4000 or 7000 Series
Transfer Switch, it is designated as Accessory 72EE2.
Purpose of this Manual
This manual should be used to assist individuals who:
▪ will install and configure the 5170 QEM
▪ will monitor / control devices made by ASCO Power Technologies by using the 5170 QEM’s built-in web pages
▪ will communicate with ASCO Power Technologies products through the 5170 QEM by using a Modbus TCP-based
monitoring system (BMS or SCADA)
▪ will capture / read data from the 5170 QEM by using SNMP
For specific LAN details contact the LAN administrator or IT specialist.
If the 5170 QEM is provided as Acc. 72EE2 on an ASCO 4000 or 7000 Series transfer switch, refer to the transfer
switch installation manual, Group 5 controller user’s guide, and wiring diagram.
General Specifications
Voltage: 24 V dc
Power Requirements: 1.7 W
Mounting: DIN mount vertical
Dimensions (L,H,W): 4” x 5” x 2” (4 cm, 11 cm, 10 cm)
Ambient Temperature: -4° F to 158° F(-20° C to +70° C)
Ports: 2 (yellow stripe) for ASCO devices (APAC-future)
2 (purple stripe) for ASCO devices (TTL)
4 (blue stripe) for Ethernet
J4 (green stripe on the top) for RS485

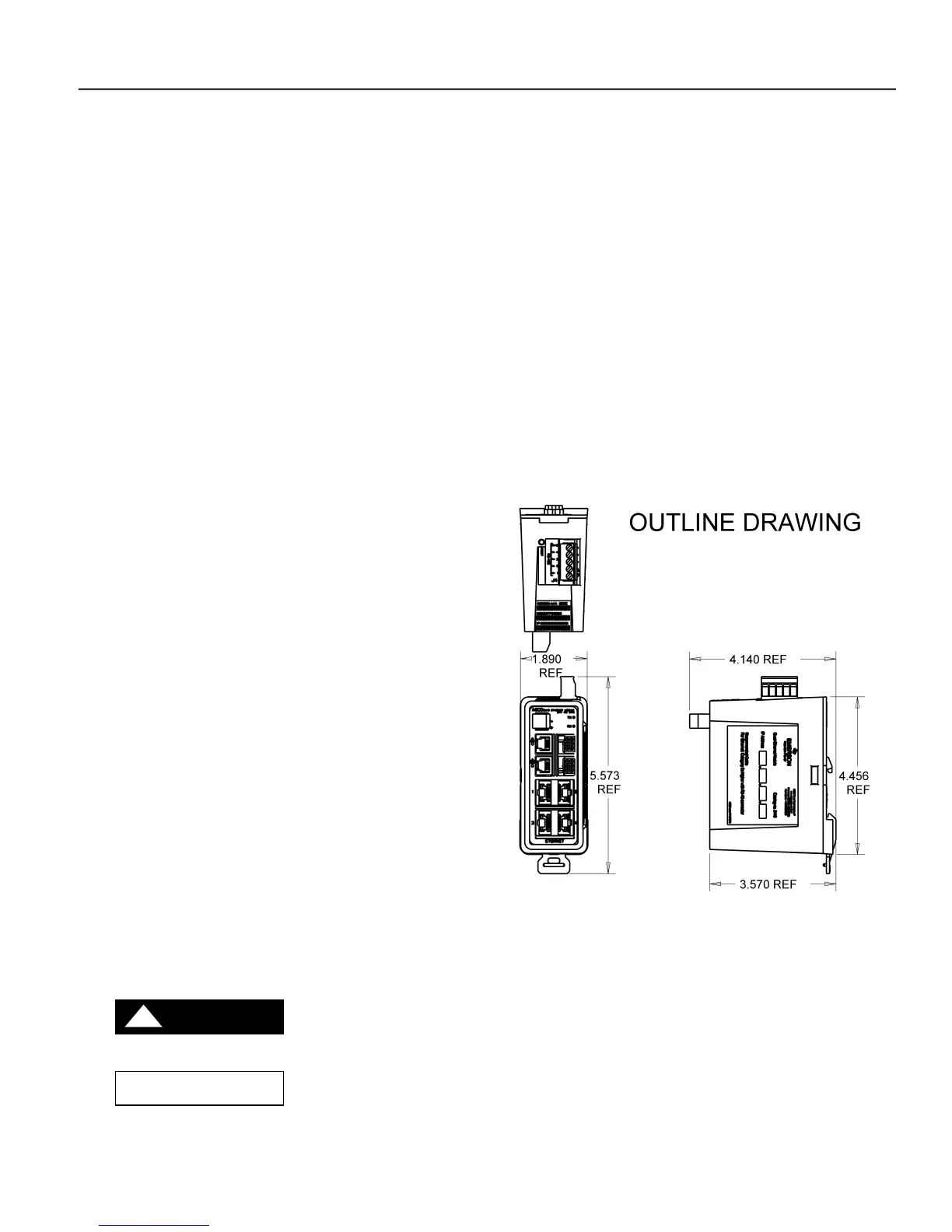

Installation
The 5170 QEM mounts on a standard 35 mm DIN rail (not
supplied). To release it from the DIN rail, pull down on
the handle at the bottom. A power terminal plug is
provided. Connect the device(s) from ASCO Power
Technologies to the upper ports (purple stripe). Connect
the Ethernet network to the lower ports (blue ports). Use
Category 5e or higher cable with RJ-45 connectors.
Tip Communication Address form is included at the back to help you fill in needed information on your QEM.
The 5170 Quad-Ethernet Module provides Ethernet-access that allows users to view data from 4000 or 7000 Series
automatic transfer switches and 5200 Series Power Metering. All users must follow these precautions:
To avoid possible shock, burns, or death, de-energize all electrical
sources to the Transfer Switch before installing the 5170 Quad-
Ethernet Module.
Be sure that Users to whom you give access are those persons
that you want to view information about the electrical system.
Windows and Internet Explorer are registered trademarks of Microsoft Corporation.
