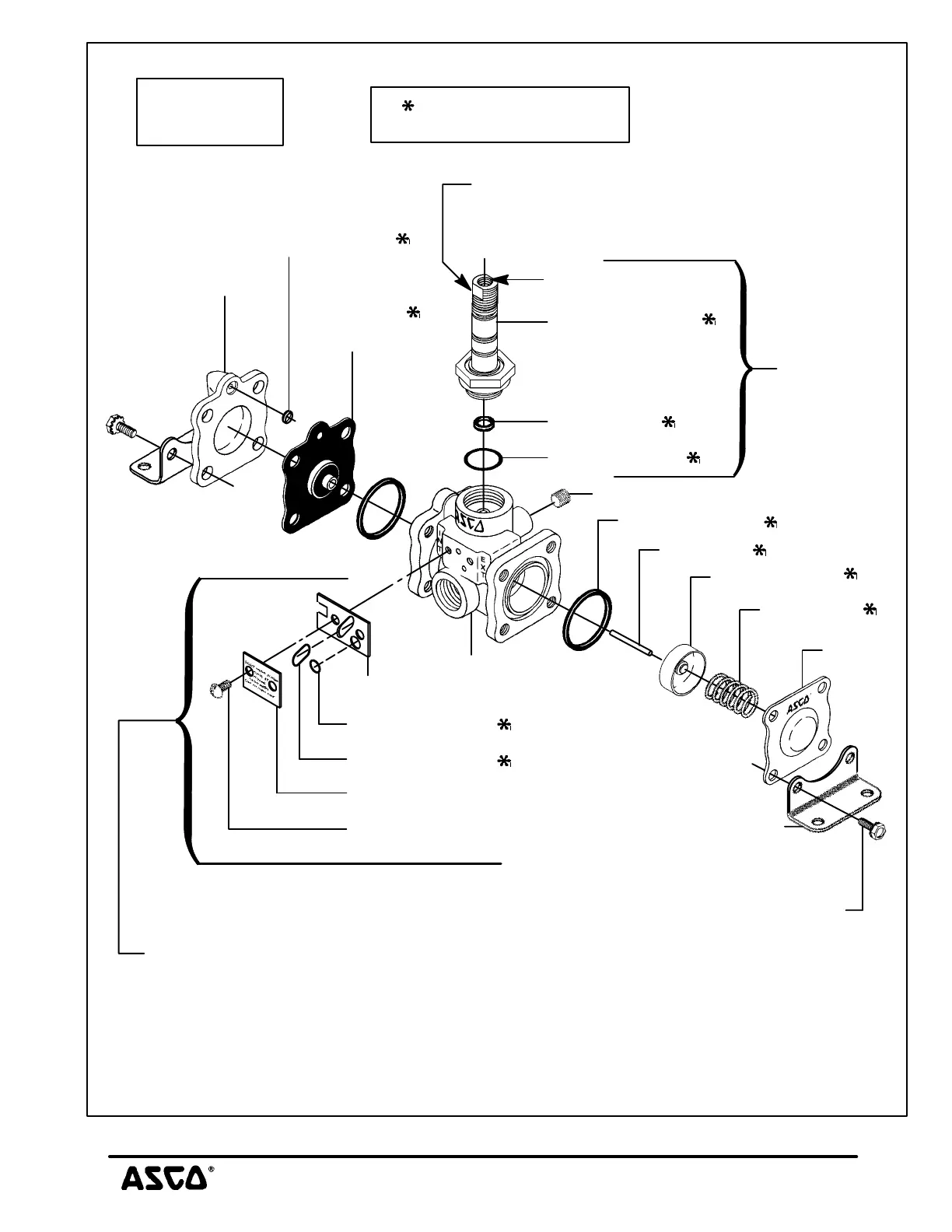

Figure 7. Series 8316, 5/16I Orifice, 1/4I or 3/8I NPT with solenoid parts for Low Power
or Intrinsically Safe constructions. For standard valve solenoid parts see Figure 6.
support
small flow gasket
large flow gasket
cover
cover screw (2)
cartridge assembly
orifice gasket
cartridge gasket
valve body
body gasket (2)
end cap
disc assembly
disc spring
1/8I NPT
body passage gasket
diaphragm
valve bonnet
bonnet screws
and lockwashers (8)
assembly
pipe plug
(1/8I NPT)
Support arrangement for external piloting mode of
operation shown. For enlarged view and detailed
instructions refer to CHANGING MODE OF
OPERATION" section and Figures 1 & 2.
mounting bracket (2)
(optional feature)
Indicates parts supplied
in ASCO Rebuild Kit
wrenching flat
(see instructions in
Piping section)
solenoid
parts
See Torque and
Lubrication Chart
Important
valve stem

Asco 8316 Series Specifications

General

Series	8316
Body Material	Aluminum
Operating Pressure	0 to 150 psi
Media	Air, Inert Gas
Orifice Size	0.1875 inch
Port Size	1/4 inch
Voltage	24 V DC
Pressure Range	0 to 150 psi
Diaphragm Material	NBR
Operating Temperature	-4°F to 150°F
