ASCOM 9dLD - Connect RS232

INSTALLATION GUIDE
9dLD Locator, Version D
10TD 92775EN / 14 December 2020 / Ver. D
6.2 Connect RS232

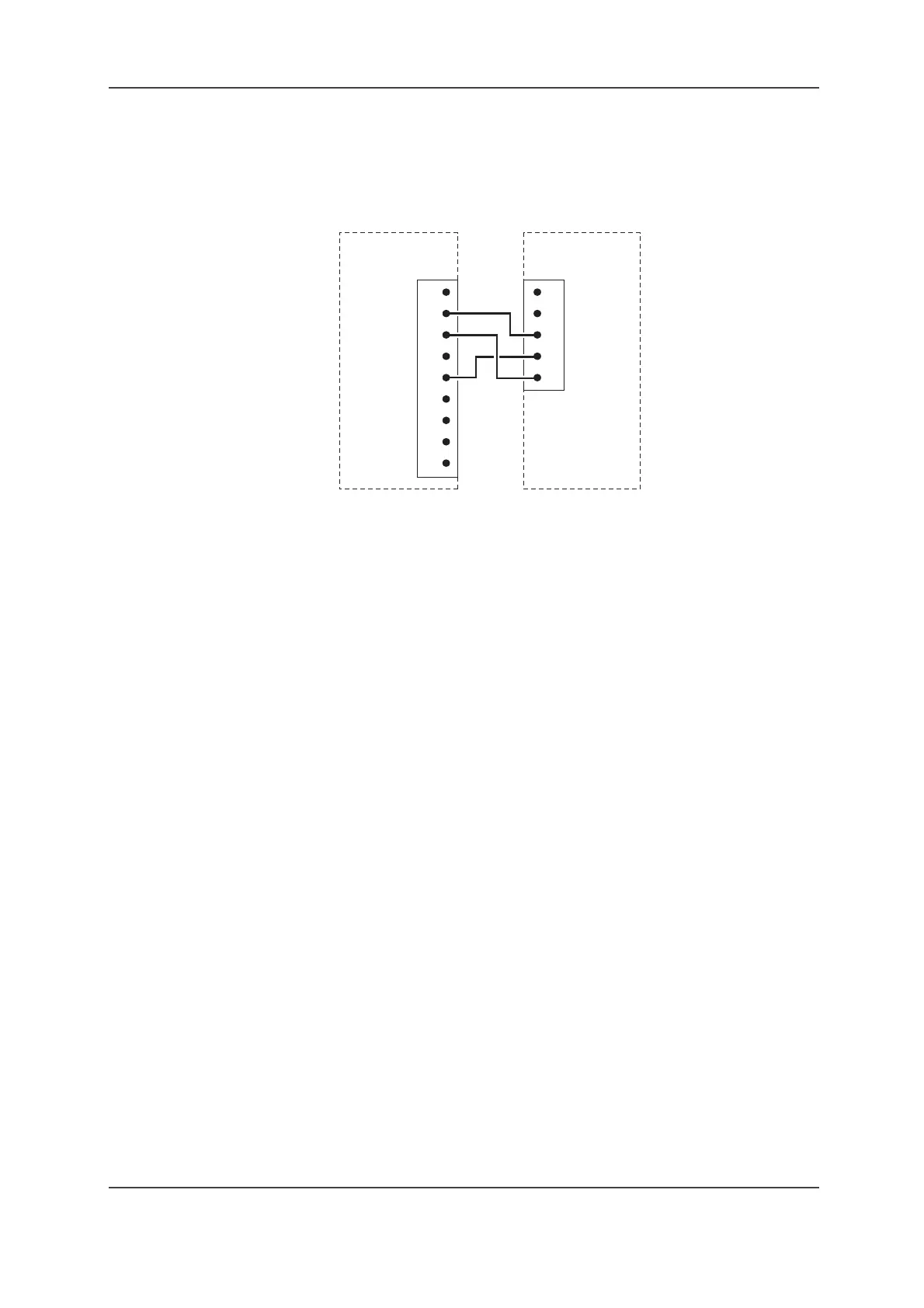

Figure 5. Connecting RS232 to 9dLD
The RS232 connection on the 9dLD is used for parameter settings and software download to
the 9dLD.
005
1
2
3 TX
4 GND
5 RX
J2
1
RX
TX
4
GND 5
6
7
8
9
9dLD
9-pin female
D-sub connector
