INSTALLATION GUIDE
9dLD Locator, Version D
13TD 92775EN / 14 December 2020 / Ver. D
3 If both locations are used, enable and configure Location 2.
4Click OK.
7.3.1 Set the threshold value on the 9dLD
The threshold value can also be set/adjusted on the 9dLD location device.

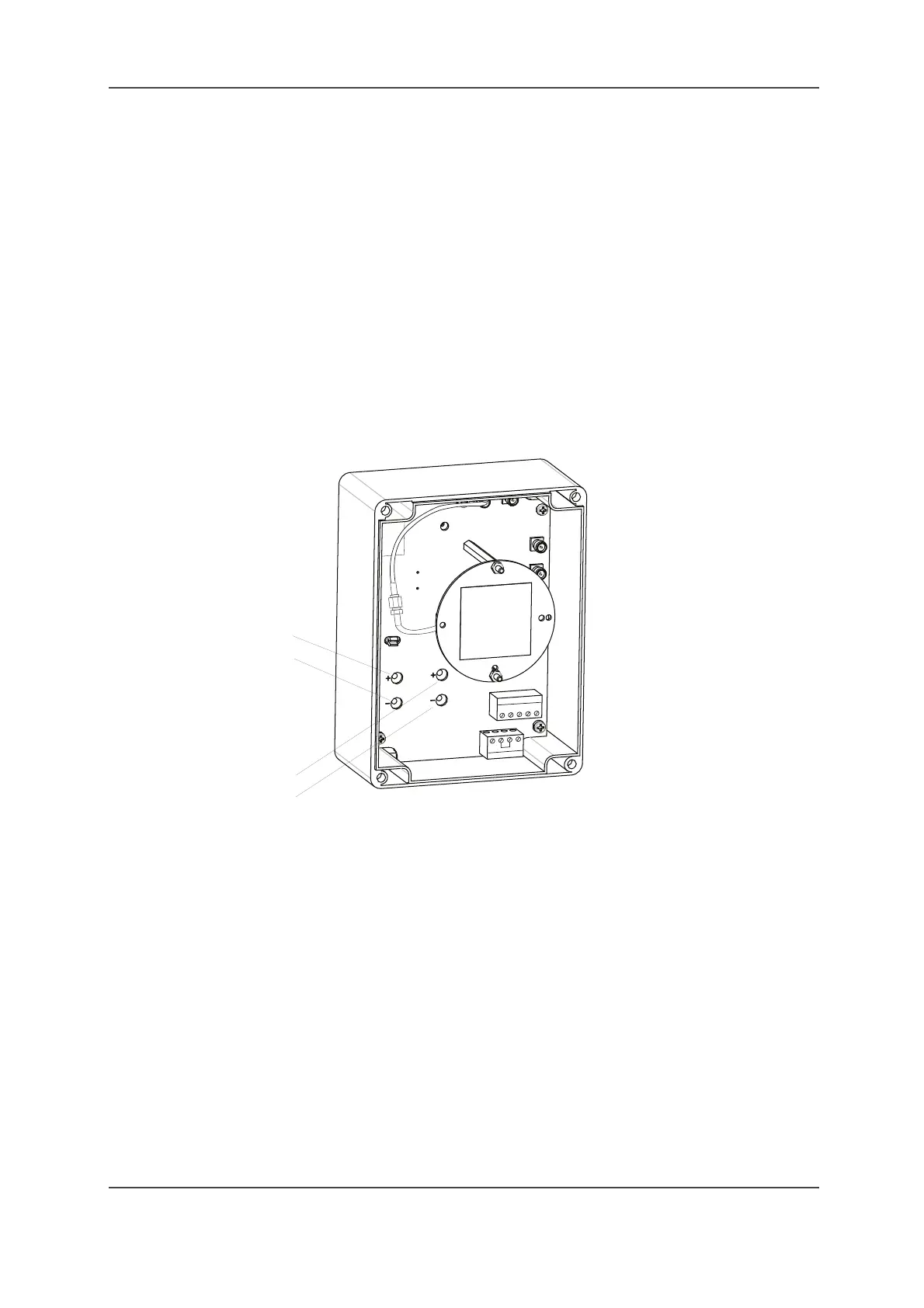

Figure 6. Switches for setting of the RSSI Threshold value on the 9dLD
Press SW03 to increase and SW26 to decrease the RSSI Threshold value. One press
increases/decreases the value with 1 dBm. If SW03 or SW26 is pressed and held, the threshold
value will be set to maximum respectively minimum value.
See DECT Location Version C and D, Function Description, TD 92629EN for more information
about how to set the threshold value.
7.4 Locator Monitoring
The monitor output is a galvanically isolated relay contact (< 15 ohm) used for supervision of the
9dLDs. The relay contact becomes open circuit (> 1 M ohm) if a fault is detected, for example
that the tamper protection of the lid/casing has been triggered, a monitored external antenna
has been disconnected or the supply voltage disconnected.
• Immediate alarm
transmission
When set to On and a handset with special location
enabled receives the location, an alarm will be sent
immediately. The type of the alarm will be “Special
Location”.
Included in the location transmission.
Default: Off
006
Location 2
Increase
Decrease
Location 1
Increase
Decrease
Location 1 Location 2
Magnet
position
14
1
5
