Installation of the Base Station
INSTALLATION GUIDE
IP-DECT Base Station and IP-DECT Gateway

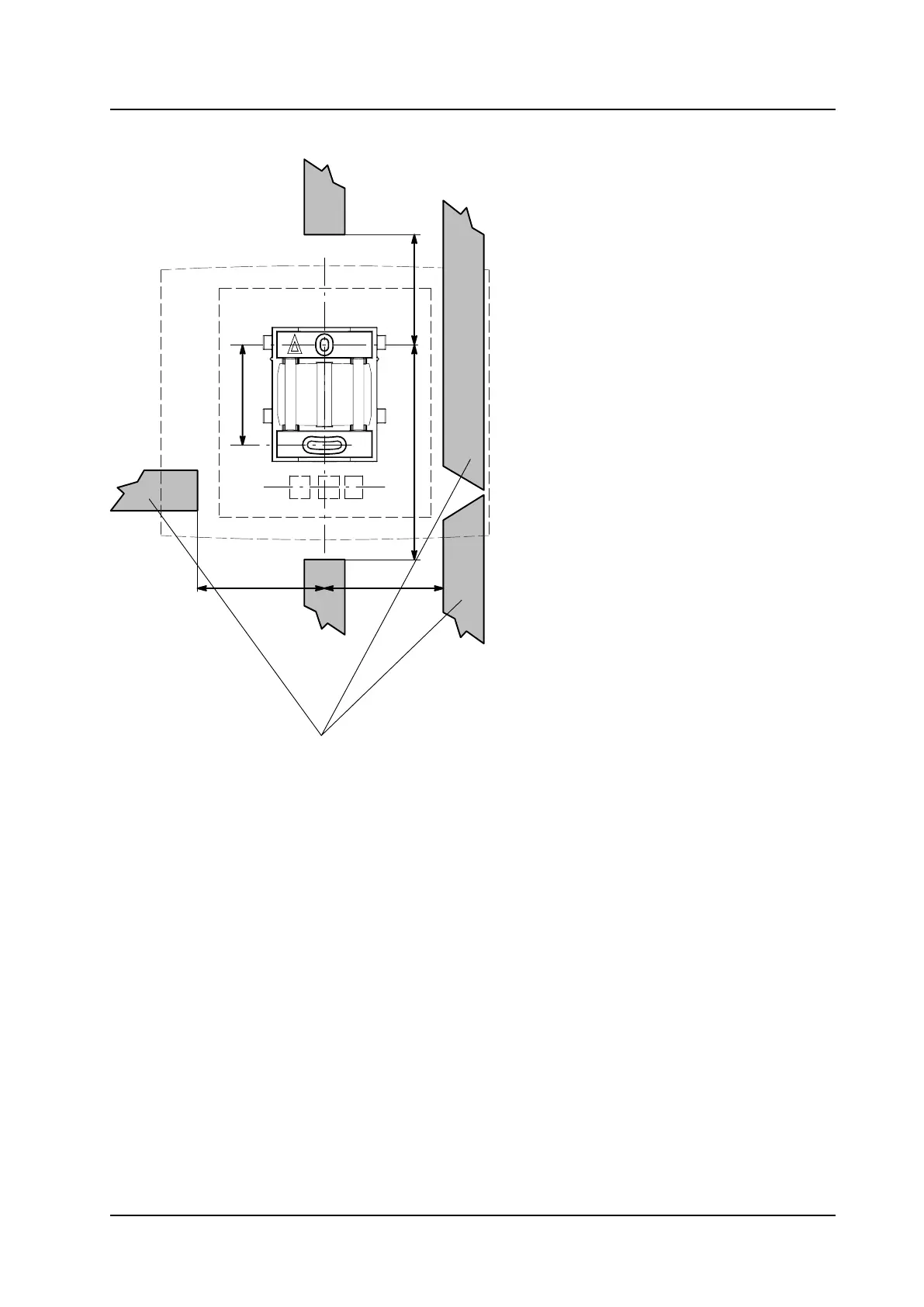

Figure 10. Minimum distances between a cable duct and the mounting bracket
TOP
65
mm
125 mm
70 mm75 mm
57 mm
15 mm thick cable ducts
013
3.2.5 Connect External Antennas (only IPBS2, IPBS3 and DB1)
1. Position the included antenna bracket above the mounting bracket with a minimum distance of 74 mm
(250 mm maximum) and mark the two holes for the antenna bracket, see Figure 11. Connect external
antennas., page 20 (1).
2. When using wall plugs: Drill the two holes using a Ø 6 mm drill and insert the included wall plugs.
3. Position the antenna bracket to the wall and fasten it with the two included Ø 3.5 mm screws.
4. Mount the two included coaxial cables on the antenna bracket, see Figure 11. Connect external
antennas., page 20 (2). Fasten the coaxial cables with the lock nuts which are found on the coaxial
cable antenna connectors.
5. Mount the antennas on the antenna connectors (2).
6. Connect the coaxial cables to the MCX connectors on the base station.
19
TD 92989EN / 25 January 2021 / Ver. E
To Next Page
