INSTALLATION GUIDE
IP-DECT Base Station and IP-DECT Gateway Description
2 Description
This section gives a general description of the following devices:
• IPBS1, see 2.1 IPBS1, page 2
• IPBS2 and IPBS3, see 2.2 IPBS2/IPBS3, page 4
• IPBL, see 2.3 IPBL, page 7
• BS3x0, see 2.4 BS3x0, page 10
• DB1, see 2.5 DB1, page 11
2.1 IPBS1
The following versions of the IPBS1 are available:
• IPBS1 with internal antenna
• IPBS1 with external antennas
2.1.1 IPBS1 with Internal Antenna

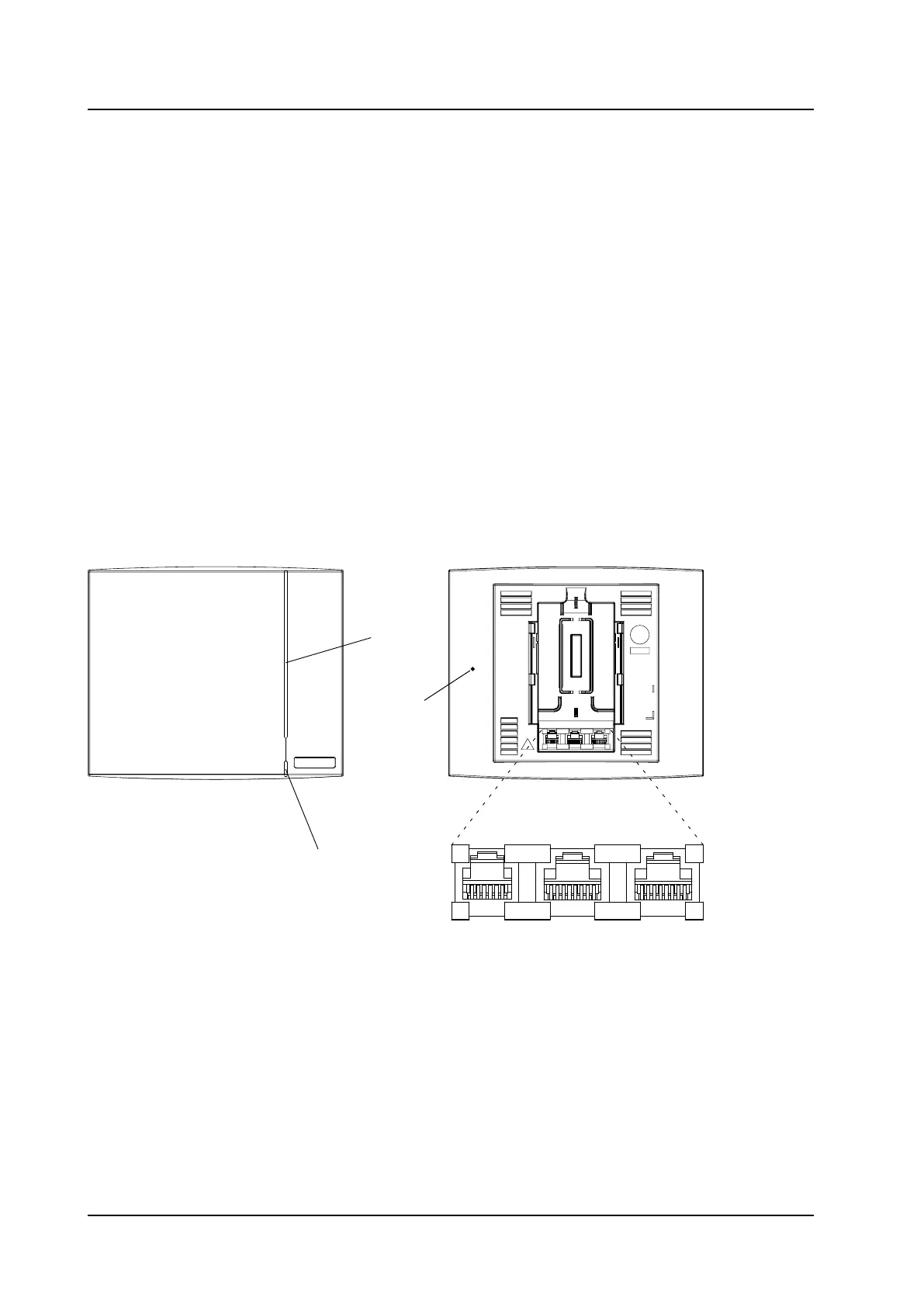

Figure 1. IPBS1 Overview
Test
(RJ12)
LAN
(RJ45)
Power Supply
(RJ45)
Front view Back view
LED1
LED2
005
Reset
Contents of the Box
The box in which the IPBS1 is packed contains:
• An IPBS1 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
TD 92989EN / 25 January 2021 / Ver. E
2
