ASCOM T942C/2 - Opening the Housing

TD 91684GB
16 April 2015 / Ver. G
Installation Guide
T942C and T942C/2 Central Unit
8
1.4.2 Opening the Housing
Use a screwdriver or similar to release the cover by
applying a light pressure to the two snap
catches (1) and remove the cover (2).
1
1
2

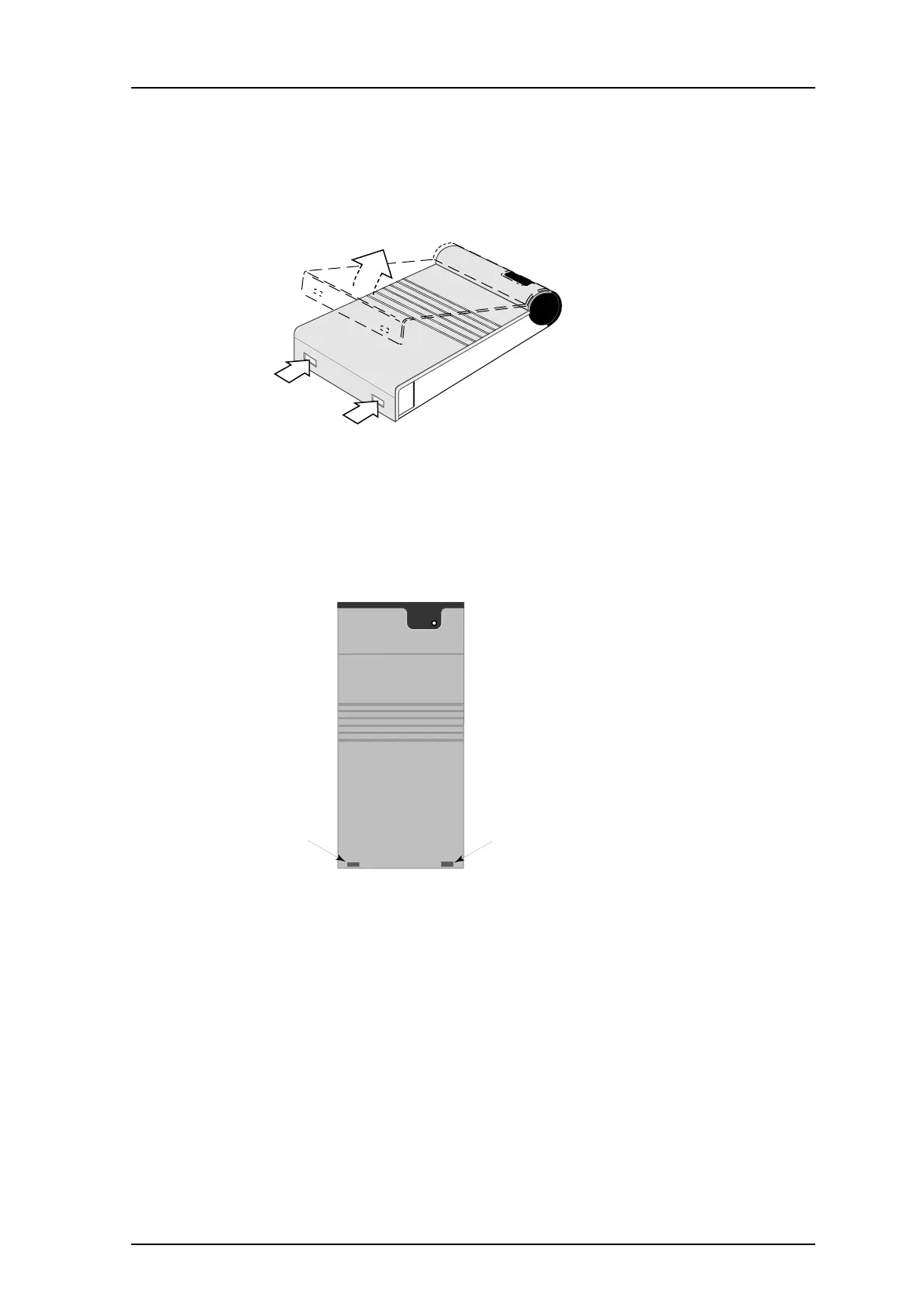

Figure 5. Releasing the cover.
Opening the Housing from the Front
If the housing has to be mounted without sufficient space below it, the
cut-out holes in the
housing lid should be opened to facilitate maintenance.
Cut Out Cut Out
Figure 6. Cut outs for opening the cover.
