12 m-radialdiaphragmvalve-en-02

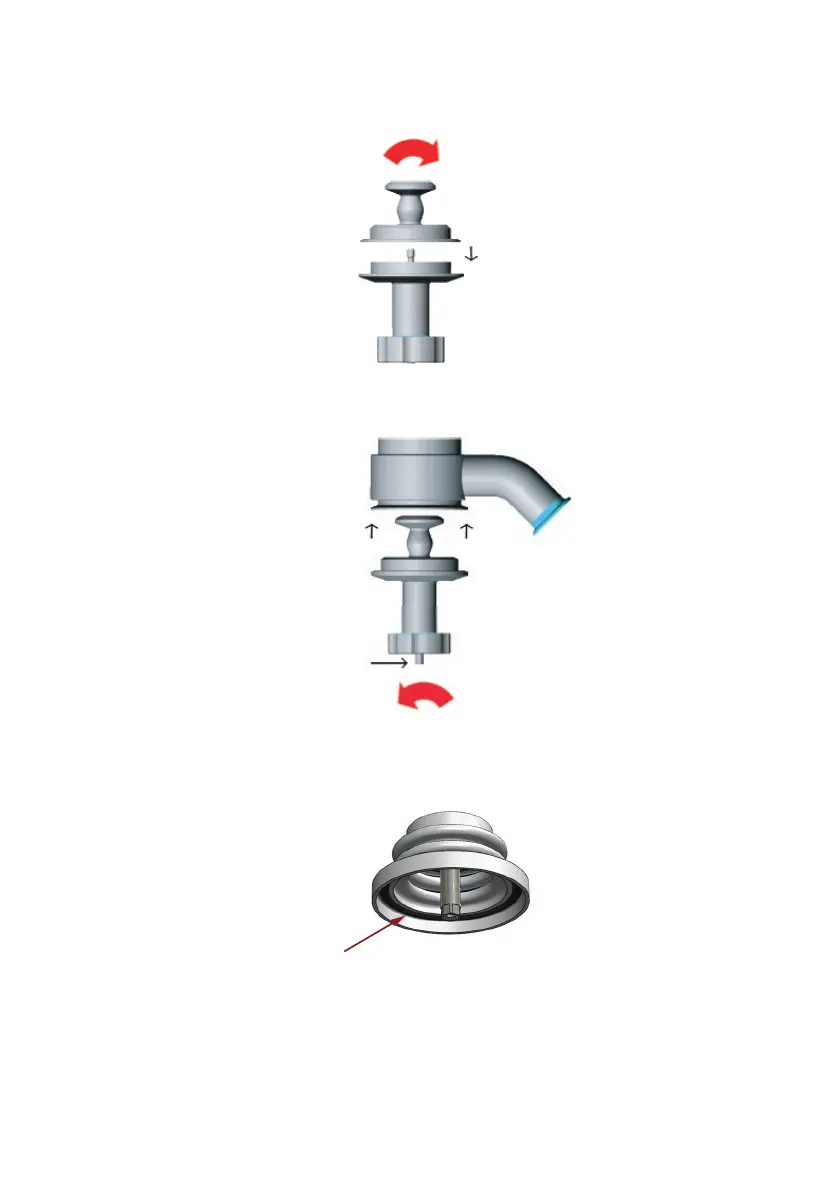

2. Turn the diaphragm clockwise onto the diaphragm/actuator assembly shaft until it is
finger-tight.
3. Rotate the handle counter-clockwise two turns.
4. Insert the diaphragm/actuator assembly into the valve body.
Position indicator
slightly extended
Valve
body
5. Fasten the clamp and finger-tighten.
Install a PTFE diaphragm
1. Verify that the O-ring is installed on the diaphragm shoulder seal.
NOTE! Only install the components provided, do not install any additional gaskets.
