⚫ Step 14: Click “Start” to Create new Slave Files.
Attention! The “Source Folder” must be saving in the directory:
“YOUR_BSP_FOLDER\SampleCode\Ethercat_MotorControl_Reference_Design\For_SSC_Tool\
Src\”.
The “ESI File” must be saving in the directory:
“YOUR_BSP_FOLDER\SampleCode\Ethercat_MotorControl_Reference_Design\For_SSC_Tool\
”.

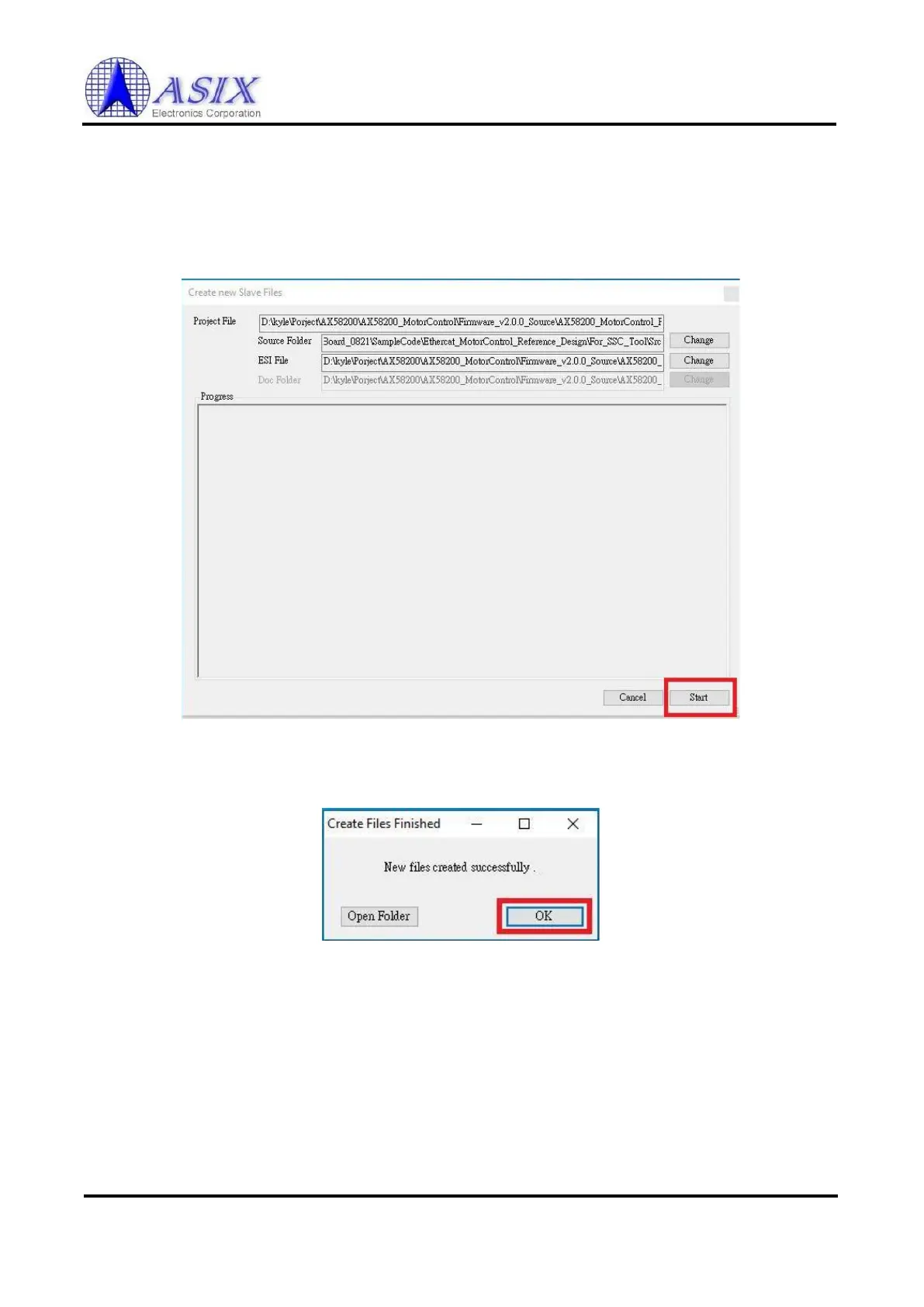

Figure 6 - 28
⚫ Step 15: Click “OK”.
Figure 6 - 29
