AX58200
Motor Control User Guide
Reference Design User Guide

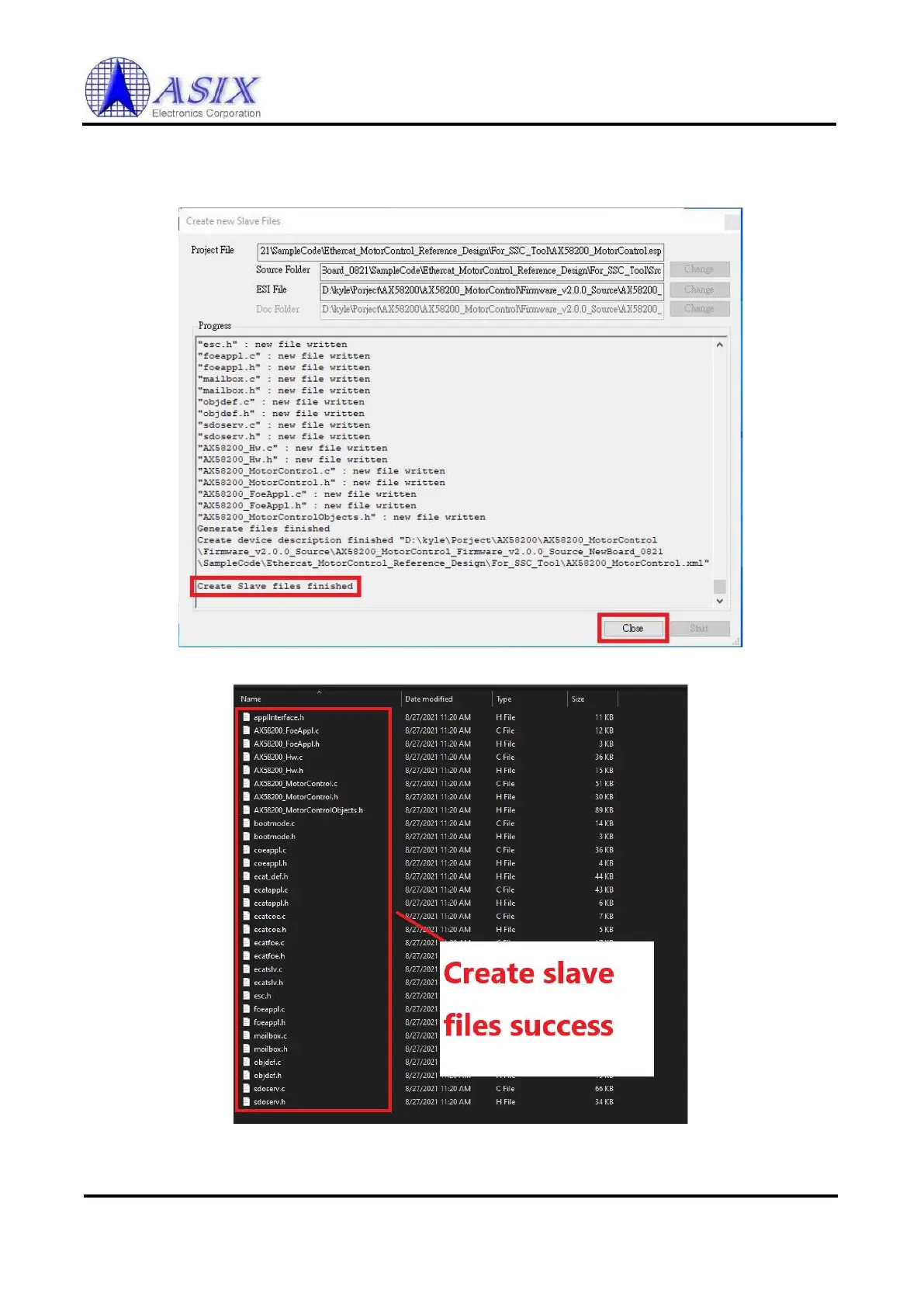

⚫ Step 16: You can see the “Create Slave files finished” and click “Close”.
Final, confirm that the source code exists in the following directory:
“YOUR_BSP_FOLDER\SampleCode\Ethercat_MotorControl_Reference_Design\For_SSC_Tool\
Src\”.
Figure 6 - 30
Figure 6 - 31
