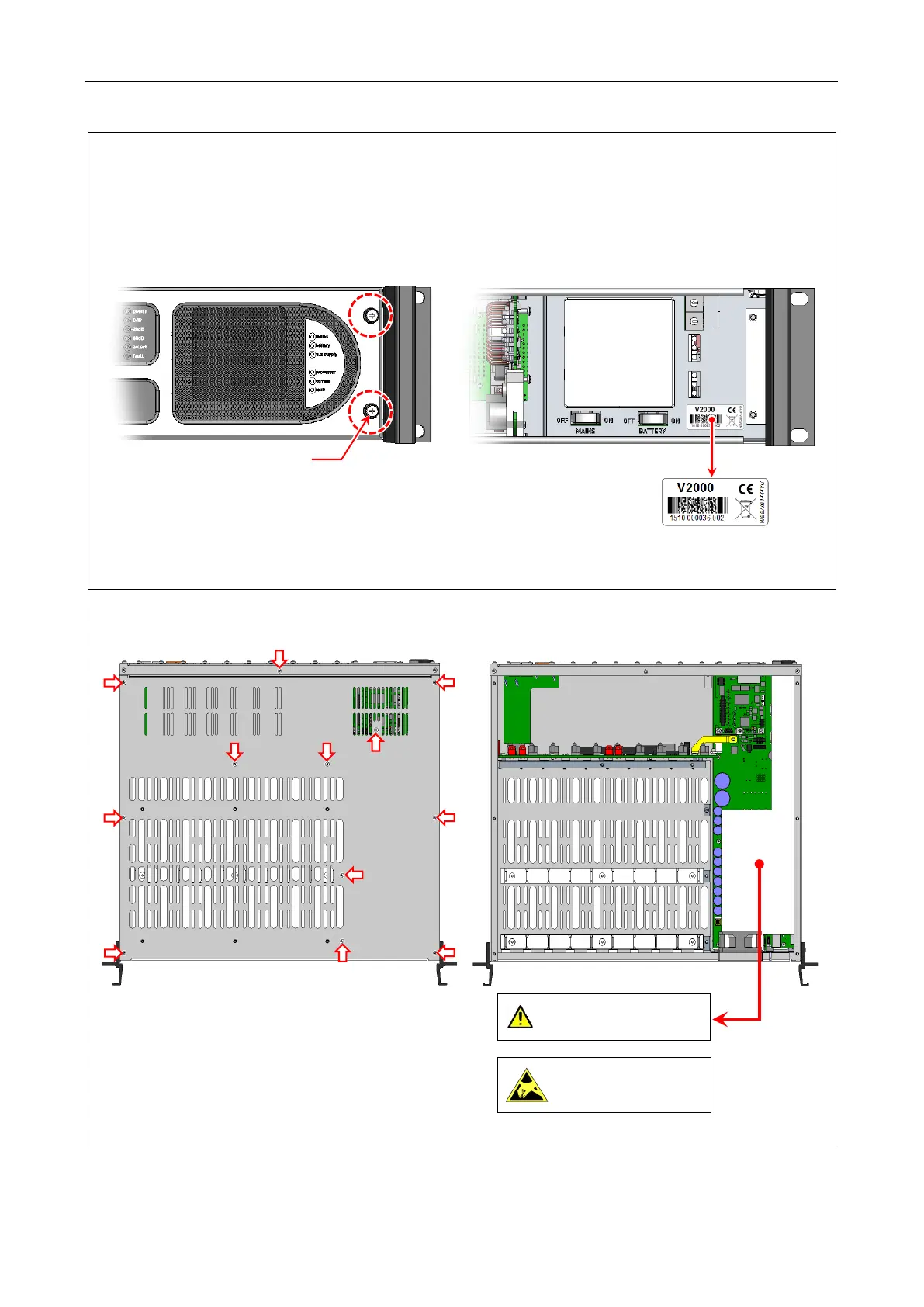

2. If fitted, remove the V2000 front panel by undoing the 2 x captive screws on the right-hand side of
the front panel.
Note that the V2000 Build Standard (BS) is the last section of the product’s barcode which is located
on the mainframe front panel (behind the removable front panel); see example below. The Build
Standard should be quoted in all enquiries regarding the unit.
3. Remove the lid by undoing 12 x screws.
Captive M3
Pozidriv screw
(V2000 front panel removed)
V2000 front panel
Mains
Battery
Aux Supply
Processor
Comms
Fault
Mainfram
ID
x1
x10
The last section of the barcode indicates
the Build Standard (BS) of the unit.
Example: 1510 000036 002  BS = 002
Barcode label
The white insulating sheet must not be
damaged or tampered with in any way
for safety reasons.
Observe precautions for handling
electrostatic sensitive devices
when handling the mainframe with
the lid removed
.
M3 (4 mm) Pozi
countersunk
screw
Front
Mainframe Top View (lid fitted)
Mainframe Top View (lid removed)
