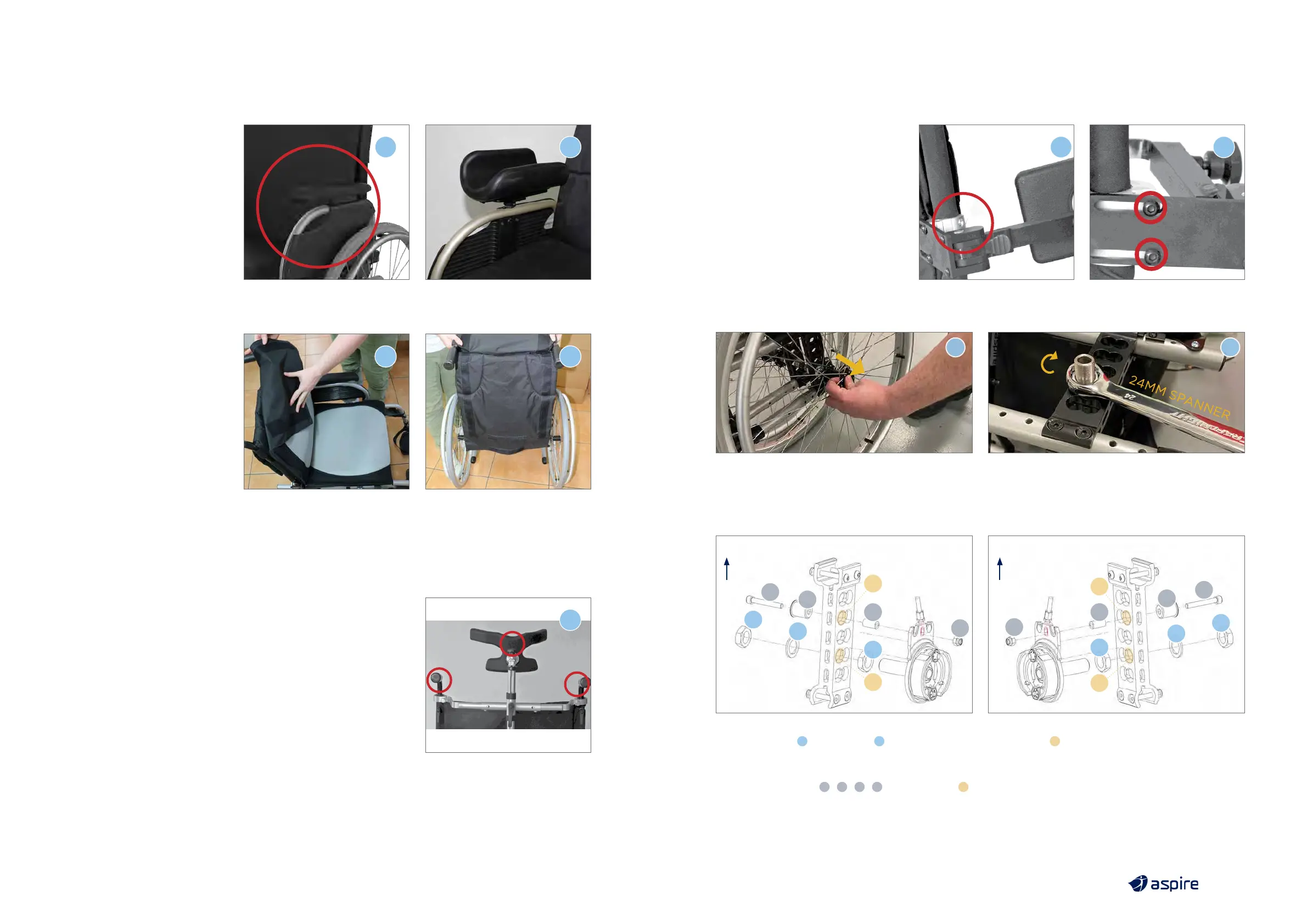

12.10 GUTTER ARMRESTS
For additional comfort, gutter
armrest pads can be mounted
to existing armrests:
• Remove standard armrest
pad by unscrewing from
underneath all bolts.
• 2. Line up gutter armrests
and fix in place with bolts.
Note: Side transfers are not
possible when gutter armrests
are attached
1 2
12.11 CONTOURED
PADDED OVERLAY
For extra user comfort,
contoured padded overlays can
be fitted.
1. Remove seat cushion.
2. Place contoured padded
overlay on seating surface
ensuring that the seat and
back are now covered.
3. Fasten seat in place by lining
up Velcro strips on seating
and backrest surface.
4. Fasten back in place by
lining up Velcro strips on rear
of backrest.
1
12.12 DELUXE HEADREST
For comfort and safe vehicle transportation, the deluxe headrest
attachment can be retro-fitted.
1. Mount cross bar across rear push handles, fasten in place with
locking pin.
Adjust position of headrest and lock into place with fastening
hand wheel.
12.13 LATERAL SUPPORT PADS
For additional lateral support and
stabilisation, lateral chest supports
can be retrofitted.
1. Mount bracket to rear backrest
cane, fasten in place with bolts.
2. To change the angle,
loosen the bolts until desired
position is reached, lock in place
with bolts.
1 2
1. Ensure the direction of the brake kit is facing upwards towards the top of the wheelchair.
2. Remove nut
i
and washer
ii
, Slide drum brake through hole
Y
.
3. Stand wheelchair back onto it’s wheels (from side lying position) ensuring cable pin stays pointing
towards the top of the wheelchair.
4. Mount hardware
A
,
B
,
C
,
D
, through hole
X
on wheelchair and drum brake, this must be done
in alphabetical order as shown. Secure in place with 10mm Spanner & 5mm Allen key.
Installing Drum Brakes
LEFT SIDE
A
i
B
ii
D
CABLE PIN
C
X
iii
Y
RIGHT SIDE
A
i
B
ii
D
CABLE PIN
C
iii
Y
THIS WAY UP THIS WAY UP
X
1. Remove quick release axle from wheelchair by pushing in spring button and pulling wheel outwards.
2. Lay the wheelchair on its side, remove axle sleeve from wheelchair frame using a 24mm spanner.
12.14 DRUM BRAKES FOR REAR WHEELS
1
2
