GENOAD8X-2T/BCM
24 25
English

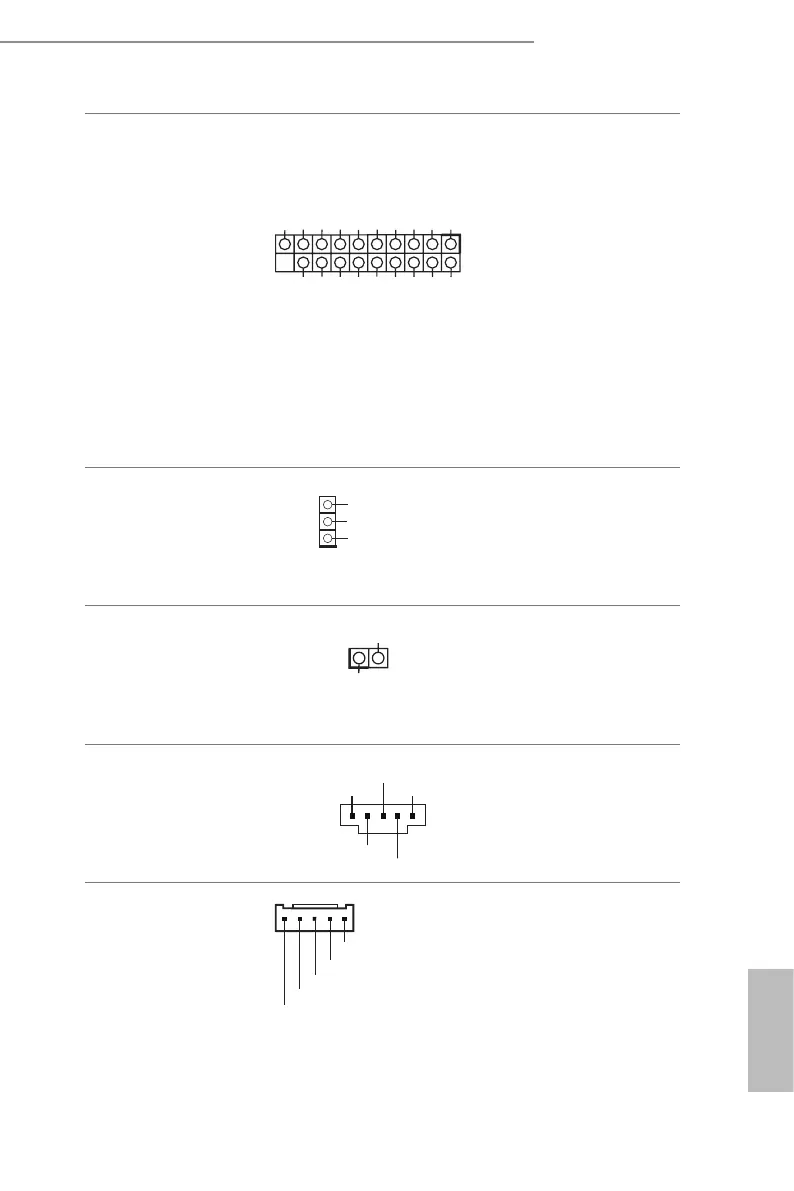

USB 3.2 Gen1 Header:
(19-pin USB3_3_4)
(see p.6, No. 15)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+ IntA_PB_SSRX- VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
is USB 3.2 Gen1 header
can support two USB 3.2
Gen1 ports.
PWM Conguration
Header
(3-pin PWM_CFG1)
(see p.6, No. 9)
1
GND
SMB_DATA_VSB
SMB_CLK_VSB
e header is used for PWM
congurations.
Non Maskable Interrupt
Button Header
(2-pin NMI_BTN1)
(see p.6, No. 34)
1
CONTROL
GND
Please connect a NMI device
to this header.
PSU SMBus Header
(PSU_ SMB1)
(see p.6, No. 8)
+3V
1
GND
ALERT
SMBCLK
SMBDATA
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
BMC SMB Header
(5-pin BMC_SMB1)
(see p.6, No. 38)
BMC_SMB_PRESENT_1_N
Power
BMC_SMBCLK
GND
BMC_SMBDATA
e header is used for the SM
BUS devices .
